PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
35' " x 69' 8"
-
First Floor Sq Ft
1,373 Sq. Ft.
-
Total AC Sq Ft
1,373 Sq. Ft.
-
Total Under Roof Sq Ft
2,131 Sq. Ft.
$0.00
Plan Description

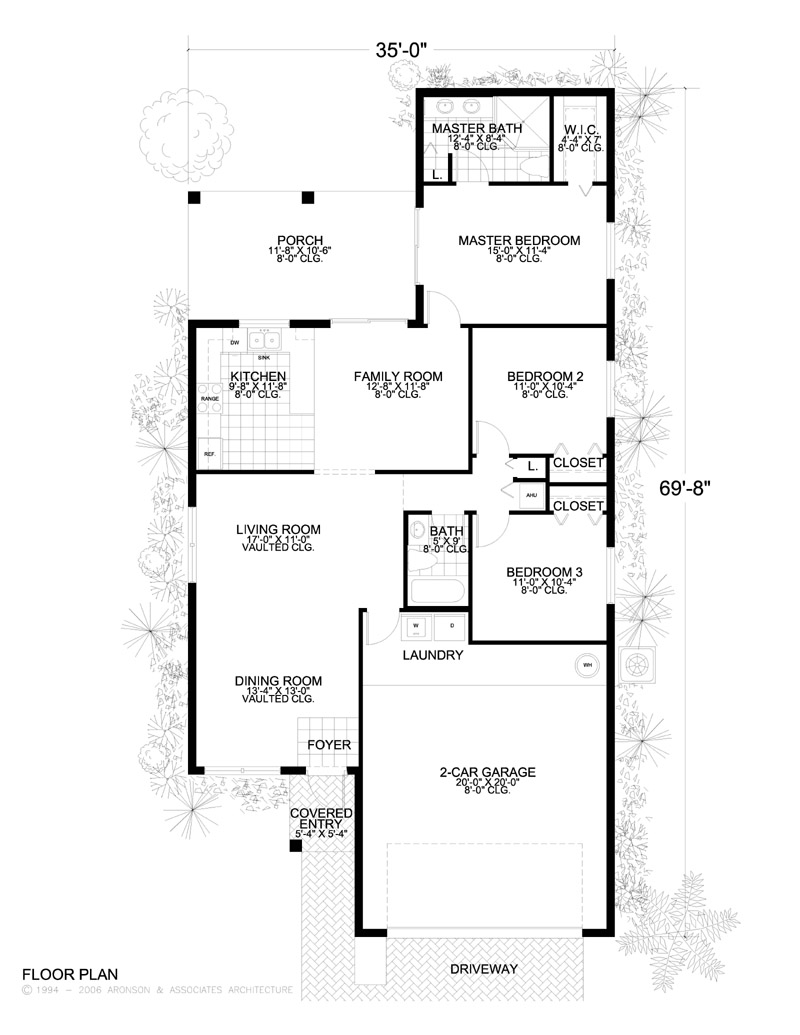

This 1,373 sq. ft., one-story Florida-style house floor plan features three bedrooms, two bathrooms, a two-car garage, grand covered entry and a rear porch. This house makes a perfect home for a small family. The design is ideal for a small or narrow lot. The home features a combined living room and dining room to maximize space, a large kitchen with pantry and eating bar opening to the dining room. The master suite has a master bathroom and walk-in closet. Purchase this one-story house floor plan now.
Dimensions
-
Width x Length
35' " x 69' 8"
-
Height
16'-4
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
2
-
Half
0
-
Total
2

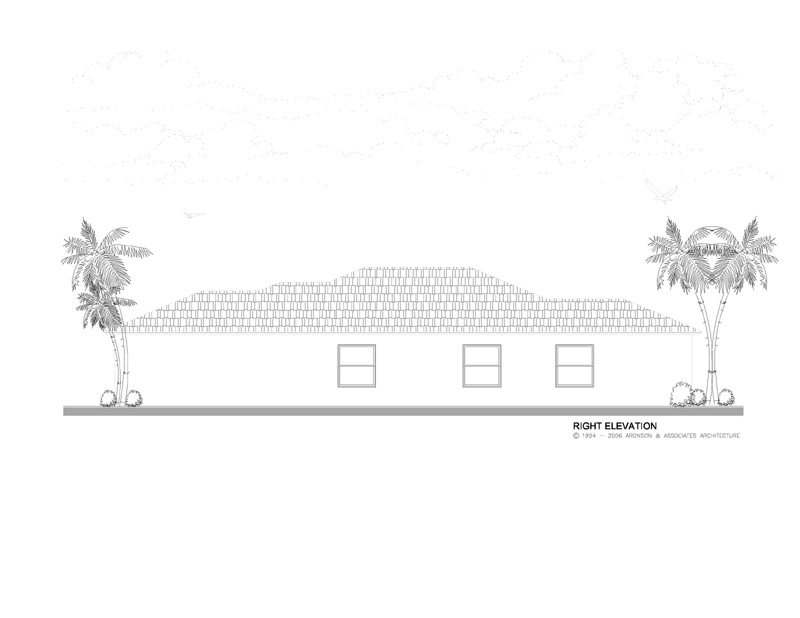

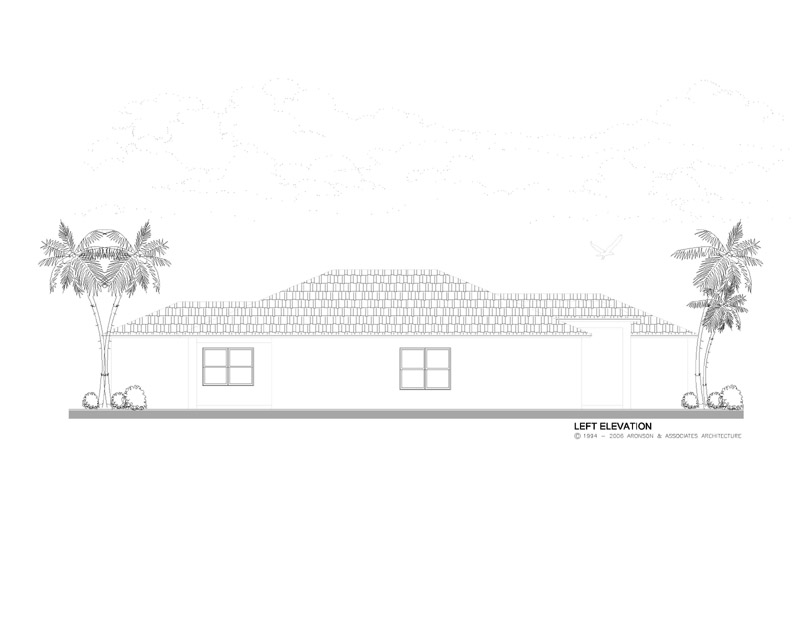

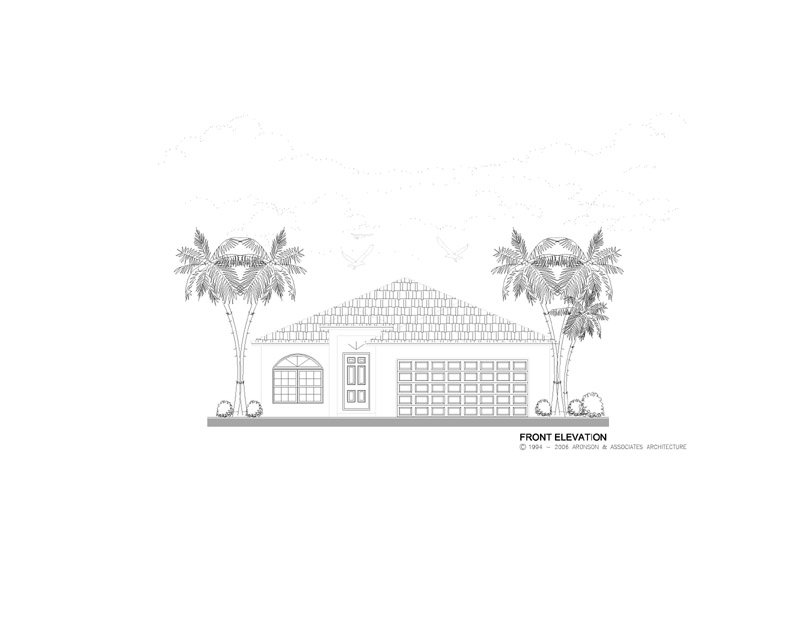

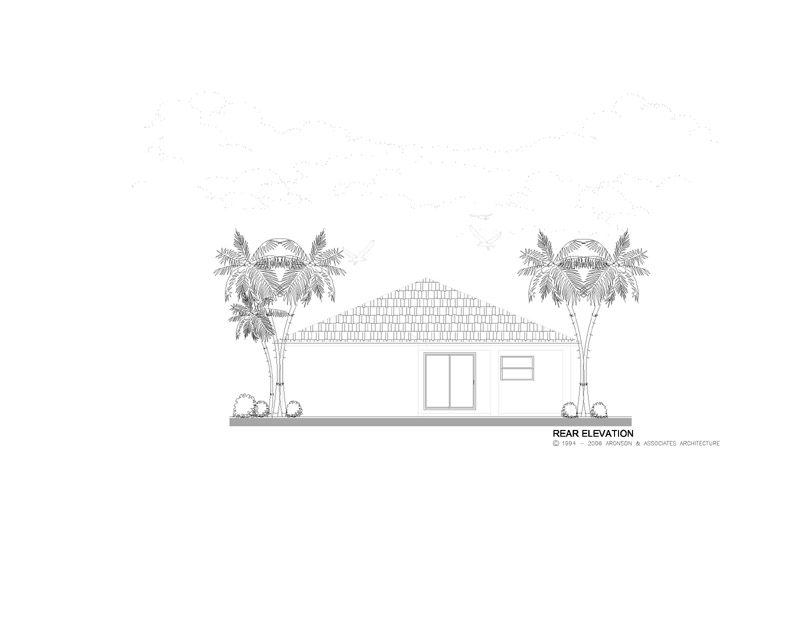

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1100
CAD Disk Price: $1600
Reverse PDF Price: $1350
Reverse CAD Price: $1850
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $600
3 Sets Price: $700
5 Sets Price: $800
8 Sets Price: $950
Reproducible Vellum Price: $1100
Base – Not for Construction Price: $600
3 Sets (Reverse) Price: $950
5 Sets (Reverse) Price: $1050
8 Sets (Reverse) Price: $1200
Reproducible Vellum (Reverse) Price: $1350
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140
First Floor
-
Primary Living
Vaulted
-
Secondary Living
Vaulted
-
Primary Bedrooms
8'-0
-
Secondary Bedrooms
8'-0
-
Bathrooms
8'-0
-
Common Areas
8'-8
Exterior
-
Garage
8'-0
-
Covered Entry
0
-
Covered Patio
8'-0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1373
-
Total AC
1373
Total Under Roof Sq Ft
-
Garage
528
-
Covered Entry
34
-
Covered Patio
196
-
Covered Balconies
0
-
Total Under Roof
2131
