PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
40' " x 56' "
-
First Floor Sq Ft
1,646 Sq. Ft.
-
Total AC Sq Ft
1,646 Sq. Ft.
-
Total Under Roof Sq Ft
2,240 Sq. Ft.
-
$0.00

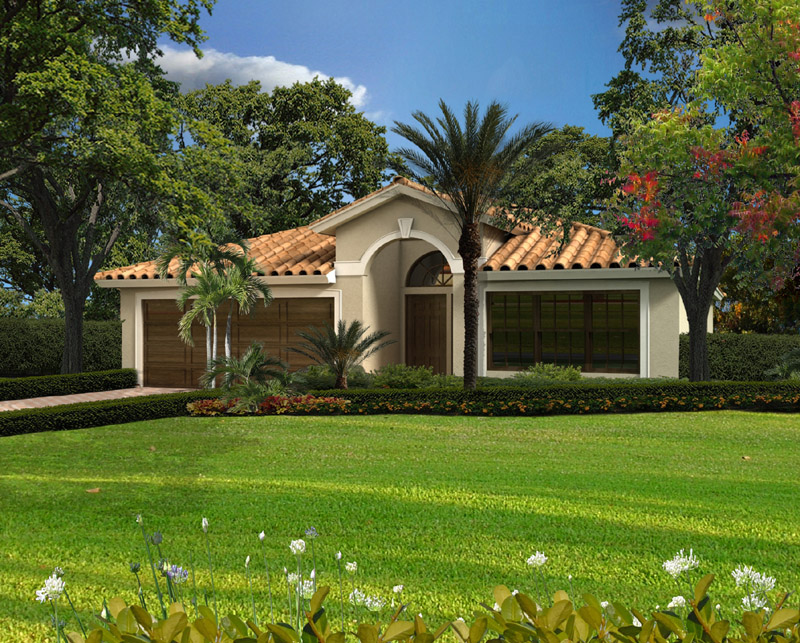

Plan Description

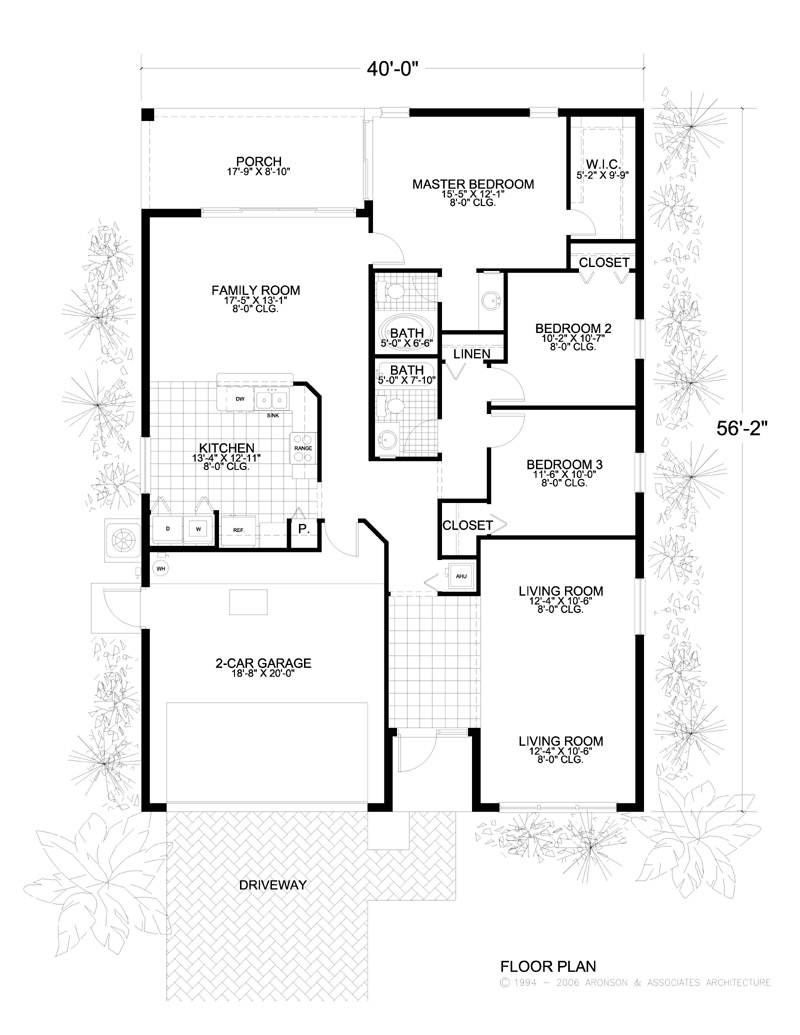

This lovely 1,646 sq. ft., one-story Florida Spanish-style home floor plan features three bedrooms, two bathrooms, a two-car garage, grand covered entry and a covered rear patio. The floor plan provides a large combined living room and dining room to maximize space. The huge, island kitchen has an eating bar, which opens to the family room. The master suite has a large walk-in-closet. There is the private master bath with a spa tub! Download this home floor plan now.
Dimensions
-
Width x Length
40' " x 56' "
-
Height
16'-10
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
2
-
Half
0
-
Total
2

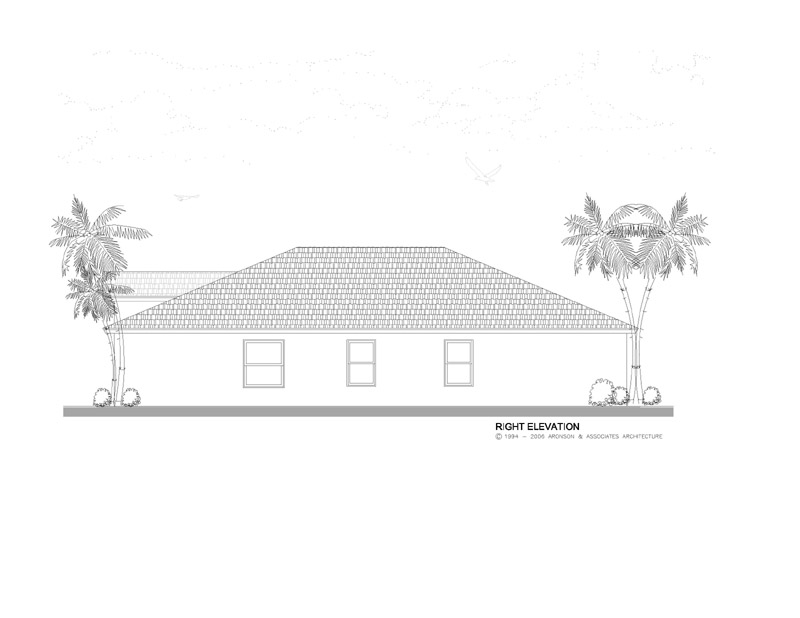

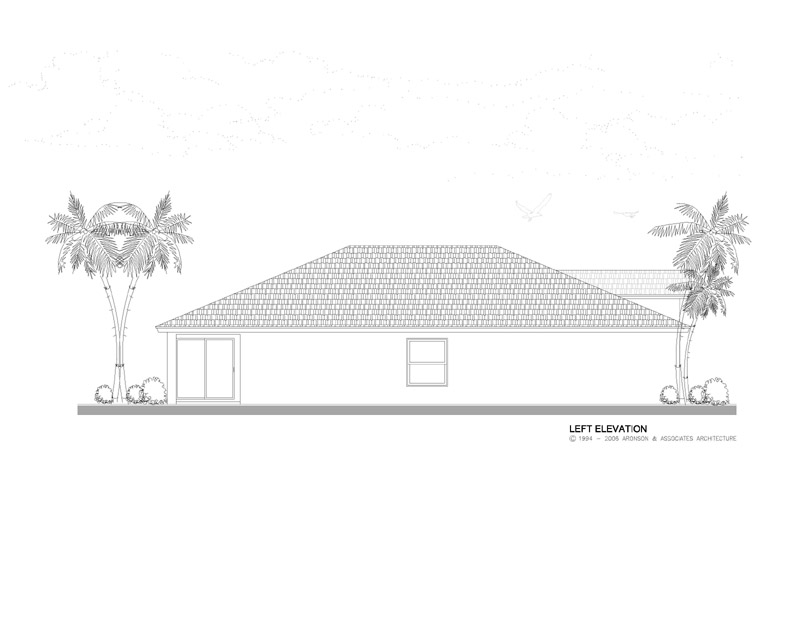

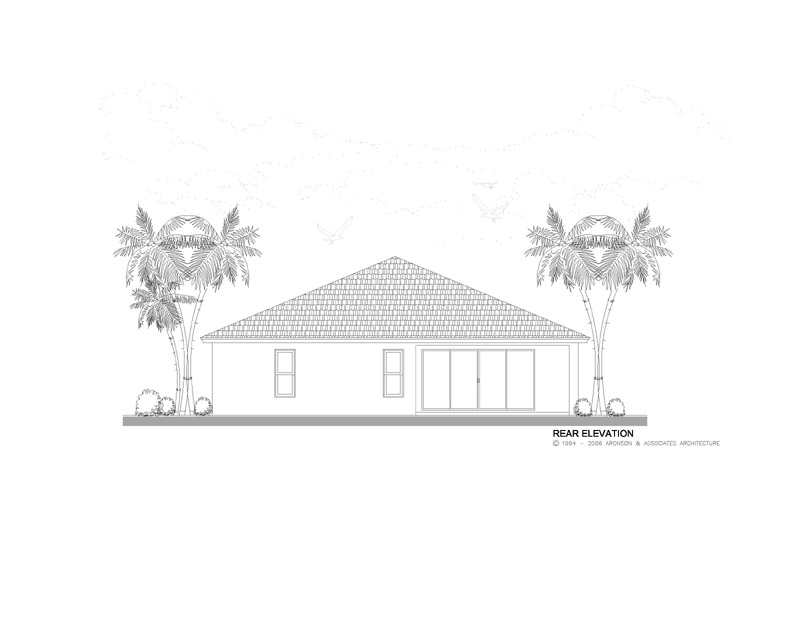

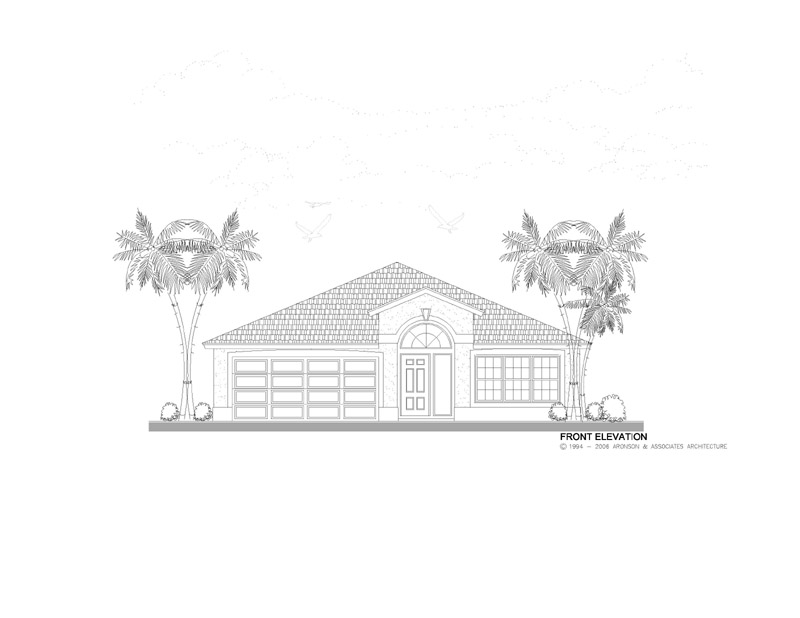

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1150
CAD Disk Price: $1650
Reverse PDF Price: $1400
Reverse CAD Price: $1900
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $650
3 Sets Price: $750
5 Sets Price: $850
8 Sets Price: $1000
Reproducible Vellum Price: $1050
Base – Not for Construction Price: $650
3 Sets (Reverse) Price: $1000
5 Sets (Reverse) Price: $1100
8 Sets (Reverse) Price: $1250
Reproducible Vellum (Reverse) Price: $1300
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140
First Floor
-
Primary Living
8'-0
-
Secondary Living
8'-0
-
Primary Bedrooms
8'-0
-
Secondary Bedrooms
8'-0
-
Bathrooms
8'-0
-
Common Areas
0
Exterior
-
Garage
8'-0
-
Covered Entry
11'-6
-
Covered Patio
8'-0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1646
-
Total AC
1646
Total Under Roof Sq Ft
-
Garage
414
-
Covered Entry
38
-
Covered Patio
142
-
Covered Balconies
0
-
Total Under Roof
2240
