PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
41' " x 57' 6"
-
First Floor Sq Ft
1,671 Sq. Ft.
-
Total AC Sq Ft
1,671 Sq. Ft.
-
Total Under Roof Sq Ft
2,280 Sq. Ft.
-
$0.00
Plan Description

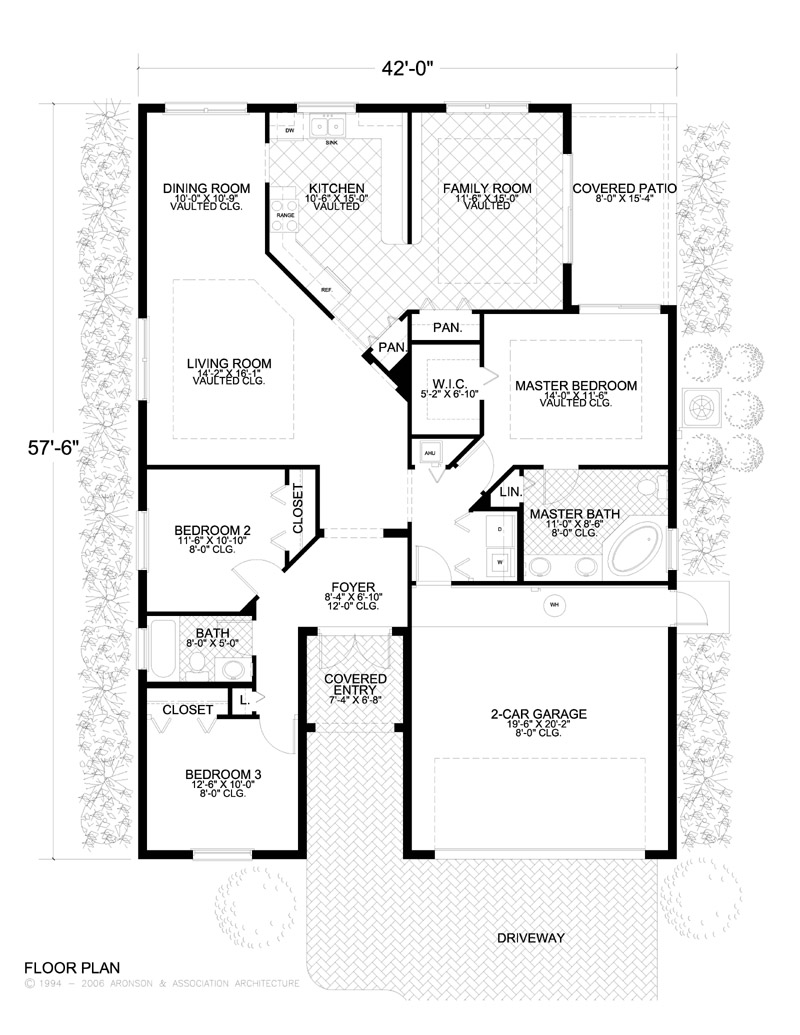

This one-story 1,671 sq. ft., home plan has three bedrooms, two bathrooms, a two-car garage, French doors with arched transom accent and covered entrance. The large kitchen with eating bar opens to the family room. The spacious, combined living room and dining room highlight this design. The is a luxurious master suite with tray ceilings, large walk-in closet and regal master bath that opens to a covered patio. Download this home plan today.
Dimensions
-
Width x Length
41' " x 57' 6"
-
Height
18'-10
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
2
-
Half
0
-
Total
2

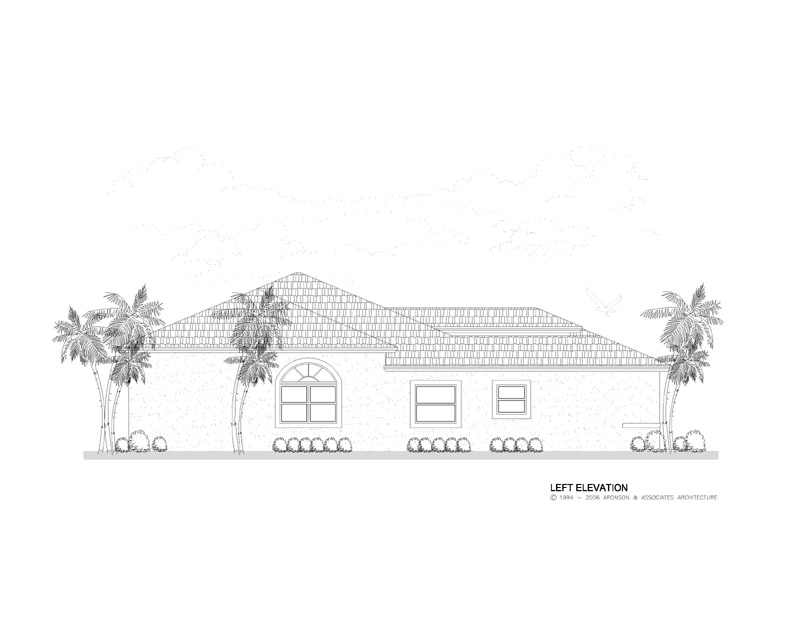

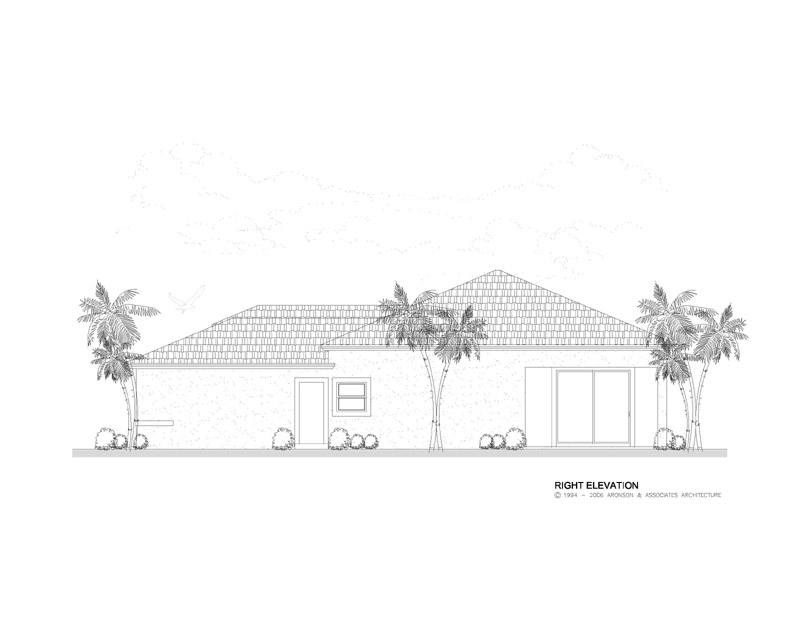

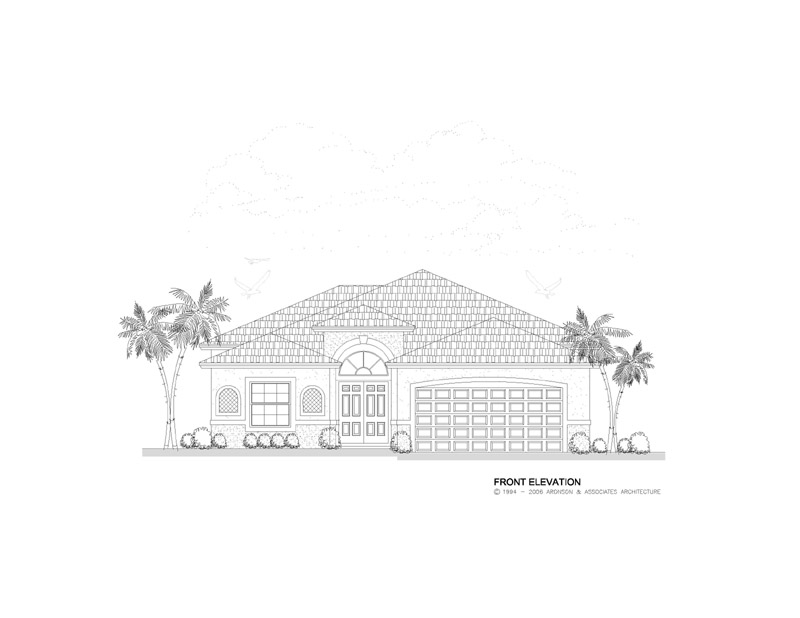

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1150
CAD Disk Price: $1650
Reverse PDF Price: $1400
Reverse CAD Price: $1900
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $650
3 Sets Price: $750
5 Sets Price: $850
8 Sets Price: $1000
Reproducible Vellum Price: $1050
Base – Not for Construction Price: $650
3 Sets (Reverse) Price: $1000
5 Sets (Reverse) Price: $1100
8 Sets (Reverse) Price: $1250
Reproducible Vellum (Reverse) Price: $1300
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
10'-2
-
Secondary Living
10'-2
-
Primary Bedrooms
10'-2
-
Secondary Bedrooms
8'-2
-
Bathrooms
8'-2
-
Common Areas
12'
Exterior
-
Garage
8'-2
-
Covered Entry
12'-4
-
Covered Patio
10'-4
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1671
-
Total AC
1671
Total Under Roof Sq Ft
-
Garage
434
-
Covered Entry
53
-
Covered Patio
122
-
Covered Balconies
0
-
Total Under Roof
2280
