PLAN SUMMARY
-
Stories
2
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
40' " x 45' 8"
-

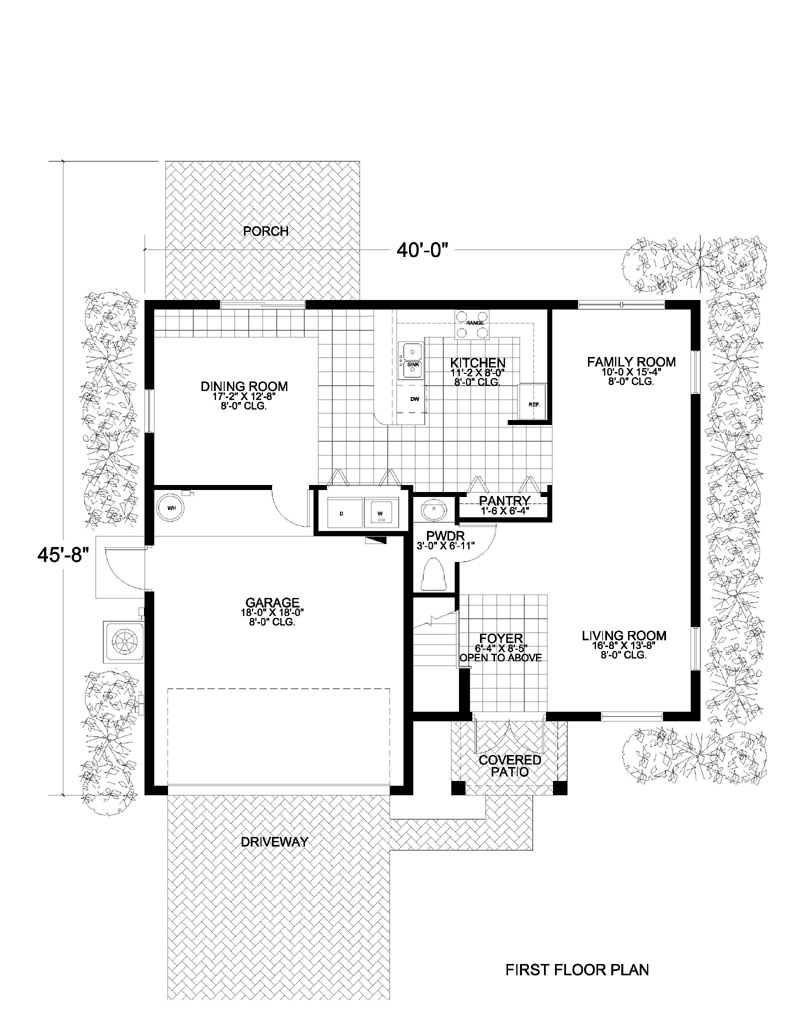

First Floor Sq Ft
924 Sq. Ft.
-

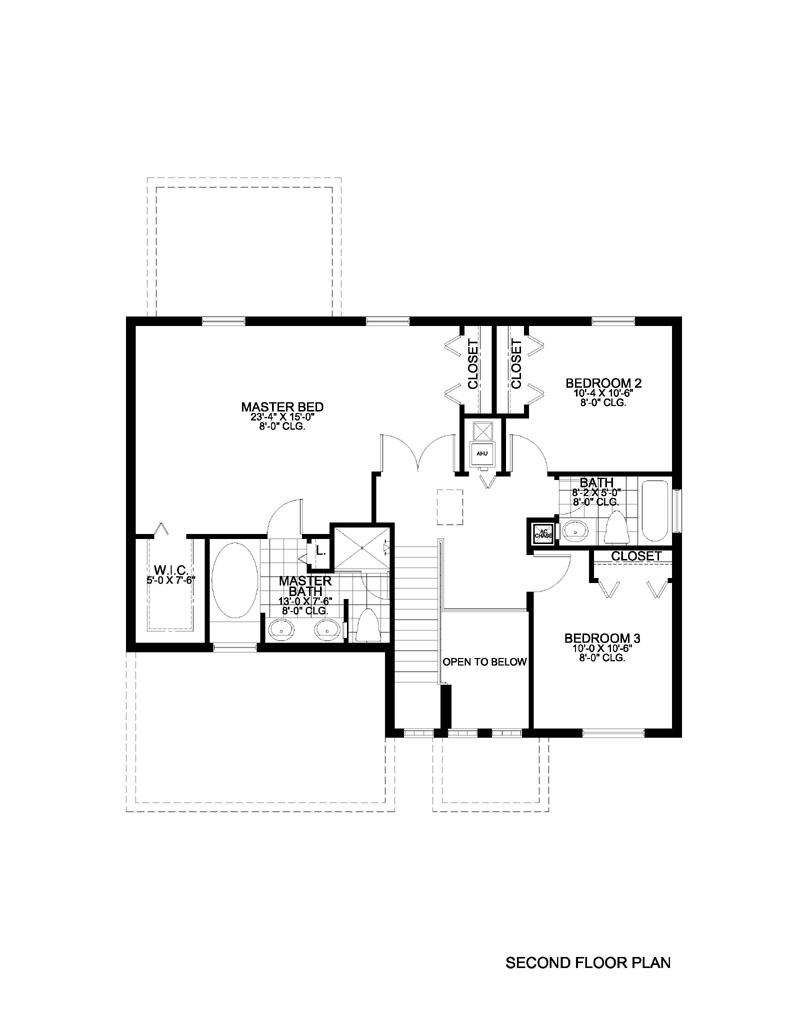

Second Floor Sq Ft
1,002 Sq. Ft.
-
Total AC Sq Ft
1,926 Sq. Ft.
-
Total Under Roof Sq Ft
2,364 Sq. Ft.
$0.00
Plan Description
This two-story 1,926 sq. ft. home floor plan has three bedrooms, two and one-half bathrooms and a two-car garage. A towering covered entrance with transom accent creates strong curb appeal. Every inch of this home utilizes it’s compact design to the best advantages! A large master suite has more than ample space in the large walk-in-closet and there is a luxurious master bathroom. There is a large combined living room and dining room to maximize space. The large kitchen opens to a comfortable family room. A Contemporary open layout provides spacious appeal to every aspect of this home! Buy this two-story home floor plan today.
Dimensions
-
Width x Length
40' " x 45' 8"
-
Height
23'-4
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
2
-
Half
1
-
Total
2
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1150
CAD Disk Price: $1650
Reverse PDF Price: $1400
Reverse CAD Price: $1900
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $650
3 Sets Price: $750
5 Sets Price: $850
8 Sets Price: $1000
Reproducible Vellum Price: $1050
Base – Not for Construction Price: $650
3 Sets (Reverse) Price: $1000
5 Sets (Reverse) Price: $1100
8 Sets (Reverse) Price: $1250
Reproducible Vellum (Reverse) Price: $1300
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Wood trusses
-
Spacing
24
-
Subfloor
0
-
Thickness
3/4
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
8'-0
-
Secondary Living
8'-0
-
Primary Bedrooms
8'-0
-
Secondary Bedrooms
8'-0
-
Bathrooms
8'-0
-
Common Areas
8'-0
Second Floor
-
Primary Bedrooms
8'
-
Secondary Bedrooms
8'
-
Bathrooms
8'
-
Common Areas
8'
Exterior
-
Garage
8'-0
-
Covered Entry
11'-6
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
924
-
Second Floor AC
1002
-
Total AC
1926
Total Under Roof Sq Ft
-
Garage
393
-
Covered Entry
45
-
Covered Patio
0
-
Covered Balconies
0
-
Total Under Roof
2364
