PLAN SUMMARY
-
Stories
1
-
Bedrooms
5
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
40' " x 62' 8"
-
First Floor Sq Ft
1,976 Sq. Ft.
-
Total AC Sq Ft
1,976 Sq. Ft.
-
Total Under Roof Sq Ft
2,441 Sq. Ft.
-
$0.00
Plan Description

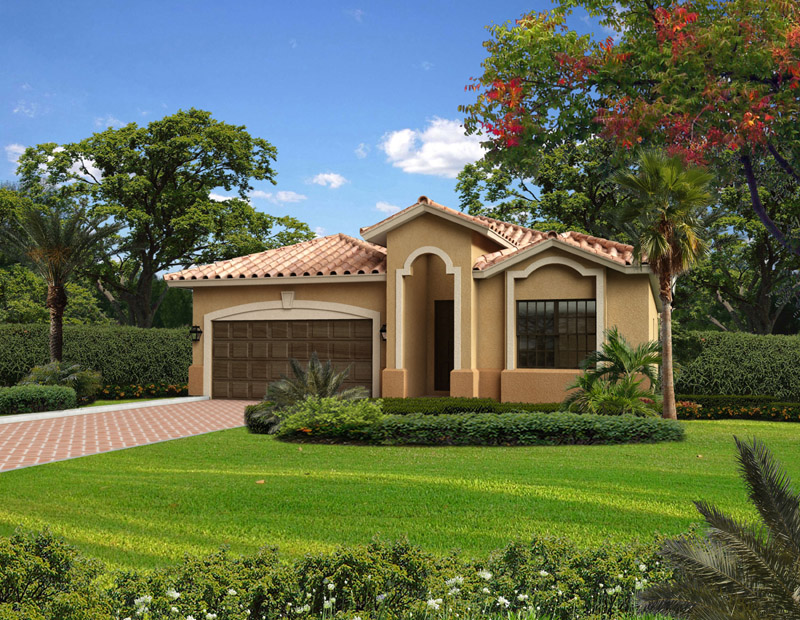

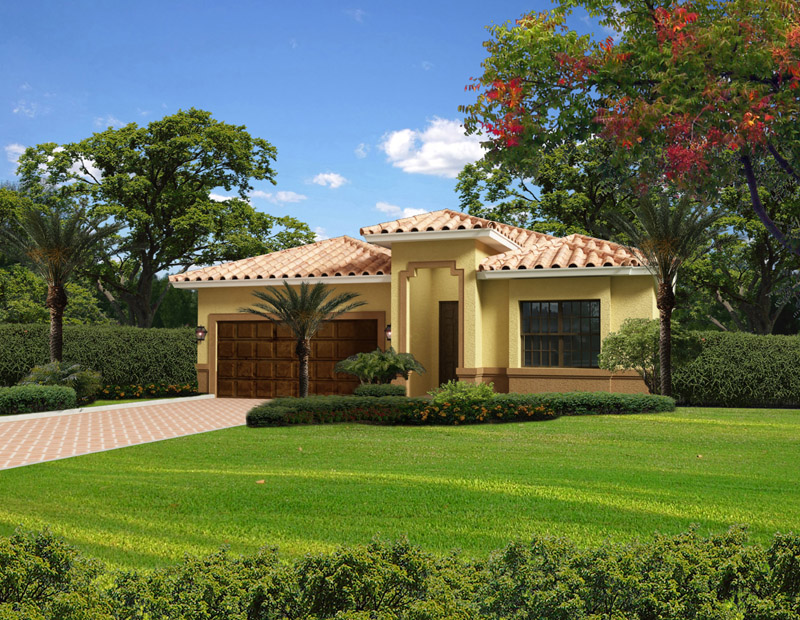

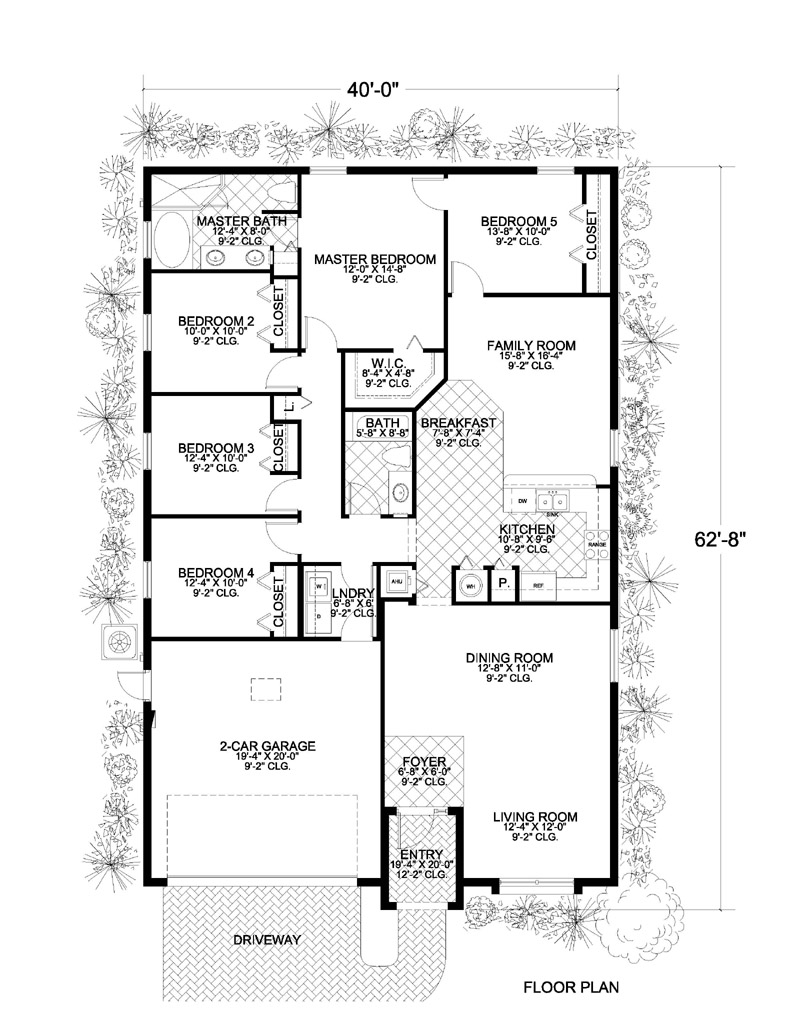

This luxurious 1,976 sq. ft., one-story, Florida-style home floor plan has five bedrooms, two bathrooms and a two-car garage. This compact design is perfect in size for a home on a small or narrow lot. The kitchen with adjoining breakfast area is adjacent to the family room, and the master bedroom has a master bathroom and a walk-in closet, making this house a great starter home. Purchase this luxurious home floor plan today.
Dimensions
-
Width x Length
40' " x 62' 8"
-
Height
18'-0
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
0
-
Total
5
Bathrooms
-
Full
2
-
Half
0
-
Total
2

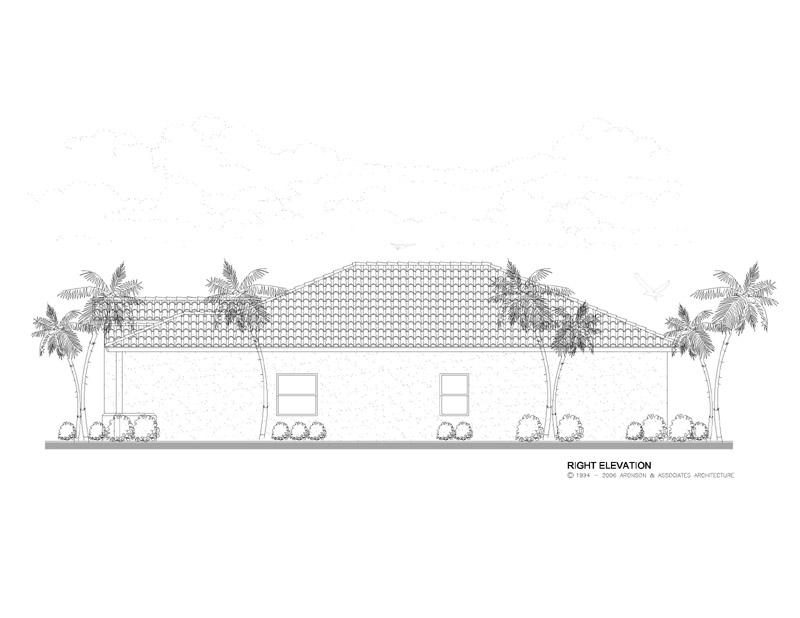

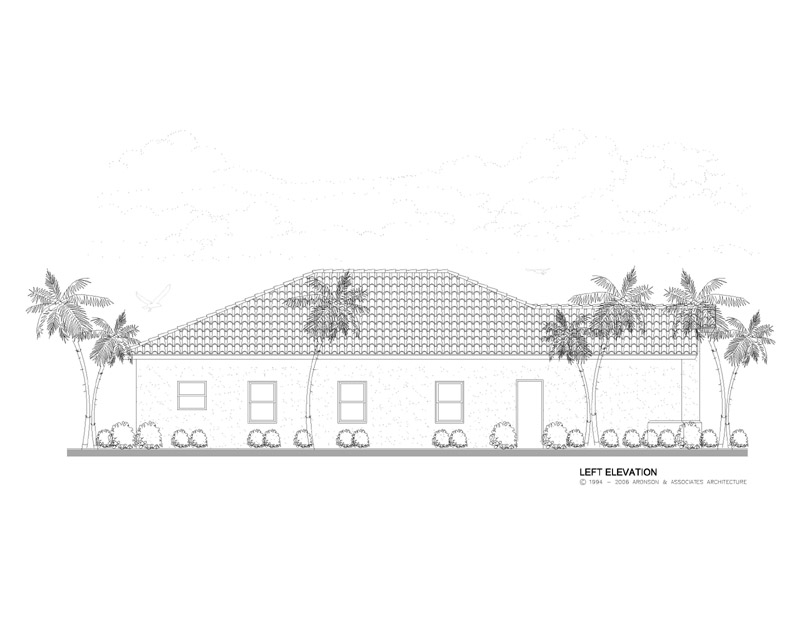

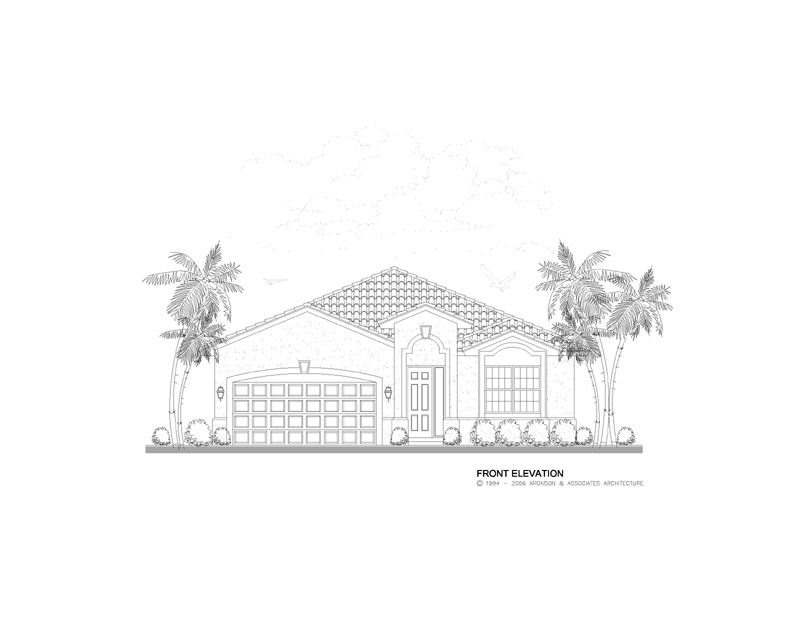

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1150
CAD Disk Price: $1650
Reverse PDF Price: $1400
Reverse CAD Price: $1900
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $650
3 Sets Price: $750
5 Sets Price: $850
8 Sets Price: $1000
Reproducible Vellum Price: $1050
Base – Not for Construction Price: $650
3 Sets (Reverse) Price: $1000
5 Sets (Reverse) Price: $1100
8 Sets (Reverse) Price: $1250
Reproducible Vellum (Reverse) Price: $1300
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
9'-0
-
Secondary Living
9'-2
-
Primary Bedrooms
9'-2
-
Secondary Bedrooms
-
Bathrooms
9'-2
-
Common Areas
9'-2
Exterior
-
Garage
9'-2
-
Covered Entry
12'-2
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1976
-
Total AC
1976
Total Under Roof Sq Ft
-
Garage
417
-
Covered Entry
48
-
Covered Patio
0
-
Covered Balconies
0
-
Total Under Roof
2441
