PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
3
-
Garage
3 car
-
Width x Length:
61' 11" x 59' 2"
-
First Floor Sq Ft
2,098 Sq. Ft.
-
Second Floor Sq Ft
445 Sq. Ft.
-
Total AC Sq Ft
2,543 Sq. Ft.
-
Total Under Roof Sq Ft
3,313 Sq. Ft.
$0.00
Plan Description
This beautiful 2,543 sq. ft., two-story, Florida Spanish-style house floor plan features four bedrooms, three bathrooms, a three-car garage and a covered entrance with eight-foot French front door. The first floor provides a formal dining room, huge island kitchen with eating bar opening to the family room. A large master suite with walk-in closets, tray ceilings and a regal master bath add to the luxury of the design. Purchase this house floor plan today.
Dimensions
-
Width x Length
61' 11" x 59' 2"
-
Height
25'-1
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
3
-
Half
0
-
Total
3

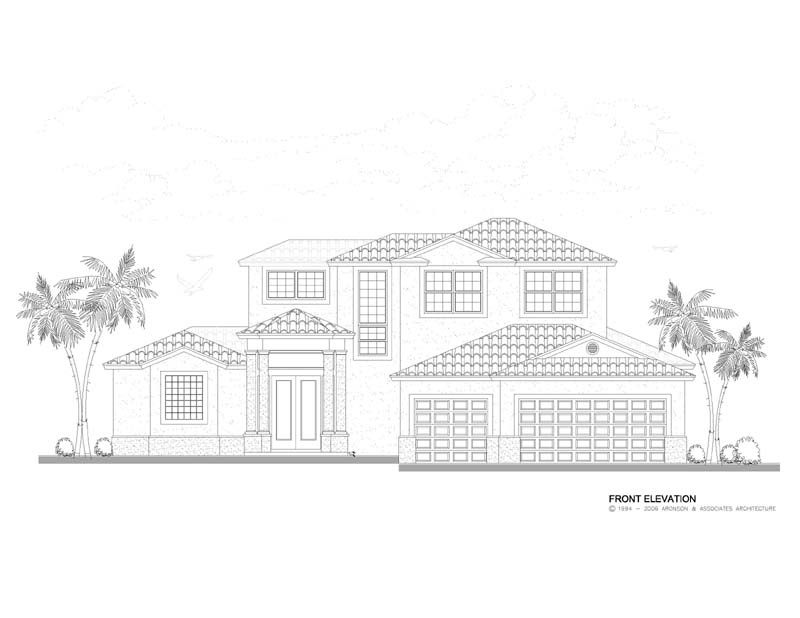

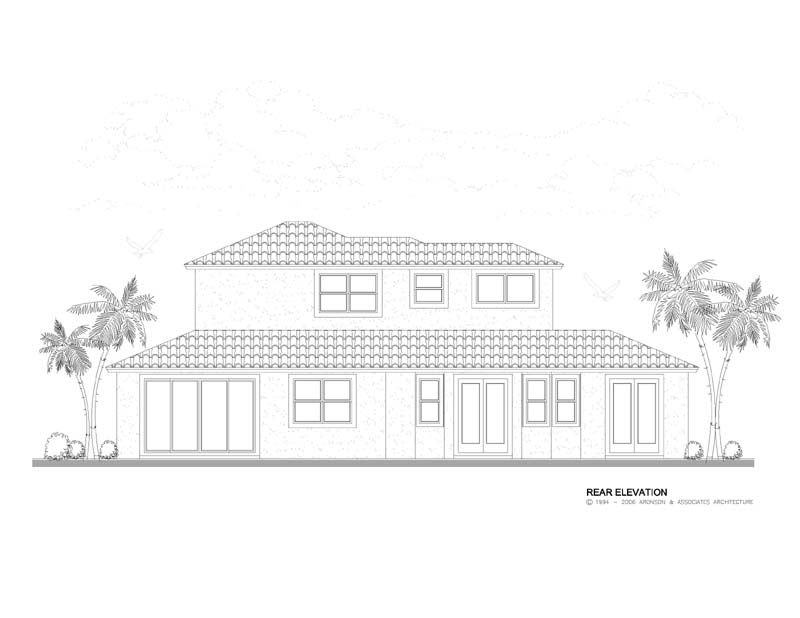

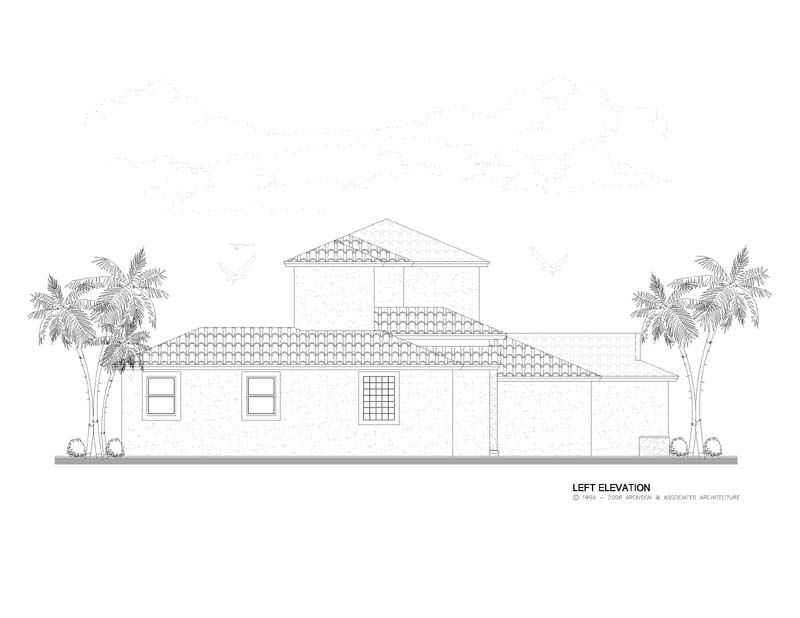

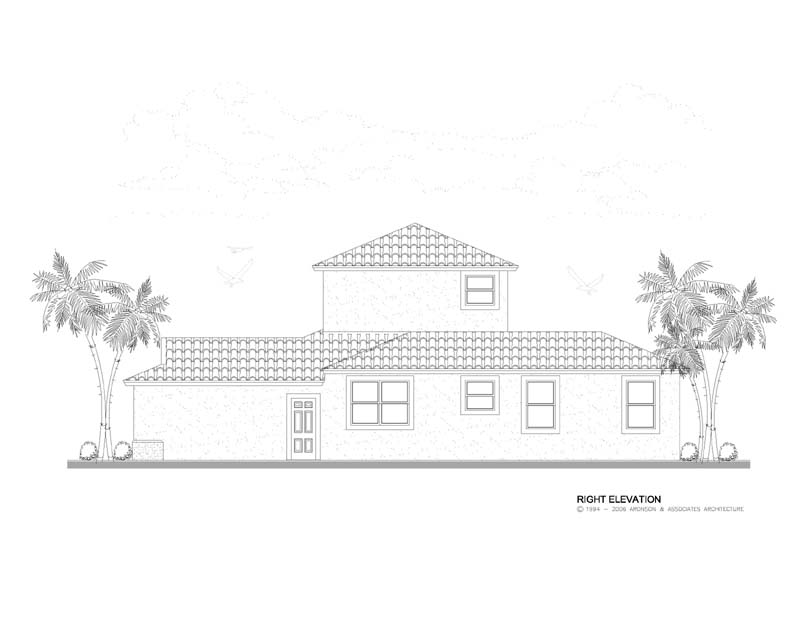

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1250
CAD Disk Price: $1850
Reverse PDF Price: $1500
Reverse CAD Price: $2100
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $750
3 Sets Price: $850
5 Sets Price: $950
8 Sets Price: $1100
Reproducible Vellum Price: $1250
Base – Not for Construction Price: $750
3 Sets (Reverse) Price: $1100
5 Sets (Reverse) Price: $1200
8 Sets (Reverse) Price: $1350
Reproducible Vellum (Reverse) Price: $1500
Foundation Type
-
Type
monolithic
-
Option
0
Floor System
-
Type
Wood Truss
-
Spacing
24
-
Subfloor
wood
-
Thickness
1/2
Roof System
-
Type
wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140

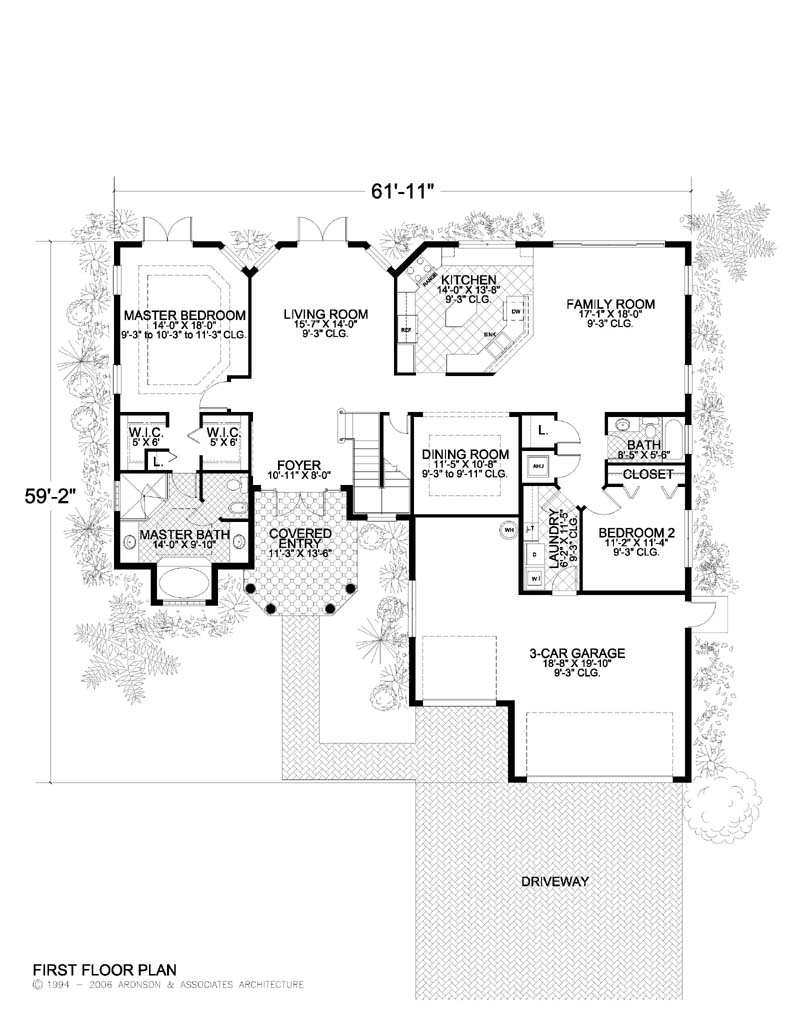

First Floor
-
Primary Living
9'-3
-
Secondary Living
0
-
Primary Bedrooms
9'-3
-
Secondary Bedrooms
9'-3
-
Bathrooms
9'-3
-
Common Areas
9'-3

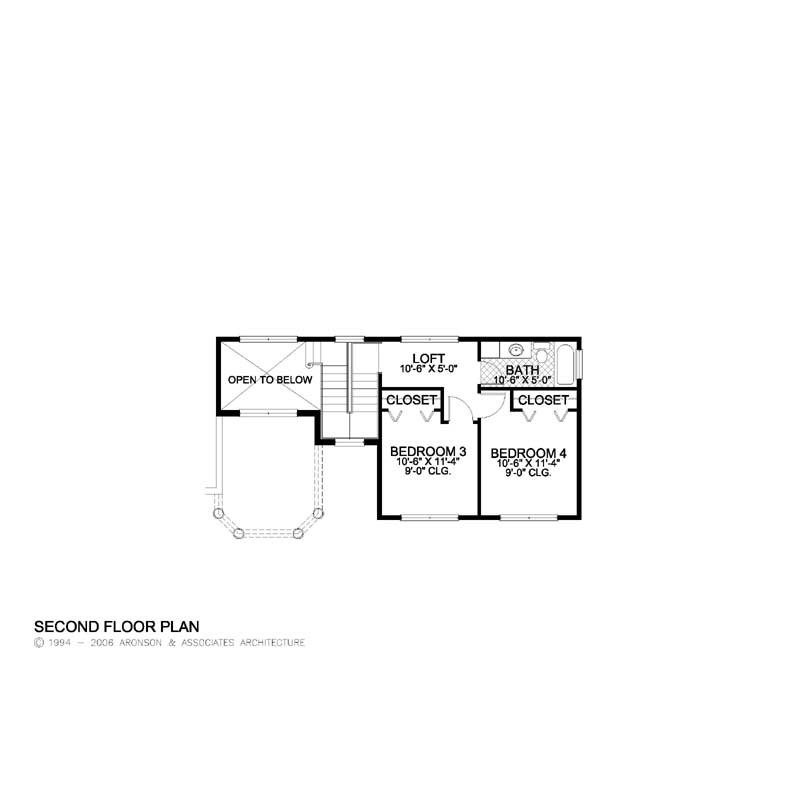

Second Floor
-
Primary Bedrooms
0
-
Secondary Bedrooms
9'-0
-
Bathrooms
9'-0
-
Common Areas
9'-0
Exterior
-
Garage
8'
-
Covered Entry
0
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2098
-
Second Floor AC
445
-
Total AC
2543
Total Under Roof Sq Ft
-
Garage
643
-
Covered Entry
127
-
Covered Patio
0
-
Covered Balconies
0
-
Total Under Roof
3313
