PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length:
40' " x 75' "
-
First Floor Sq Ft
1,886 Sq. Ft.
-
Second Floor Sq Ft
664 Sq. Ft.
-
Total AC Sq Ft
2,550 Sq. Ft.
-
Total Under Roof Sq Ft
3,292 Sq. Ft.
$0.00
Plan Description

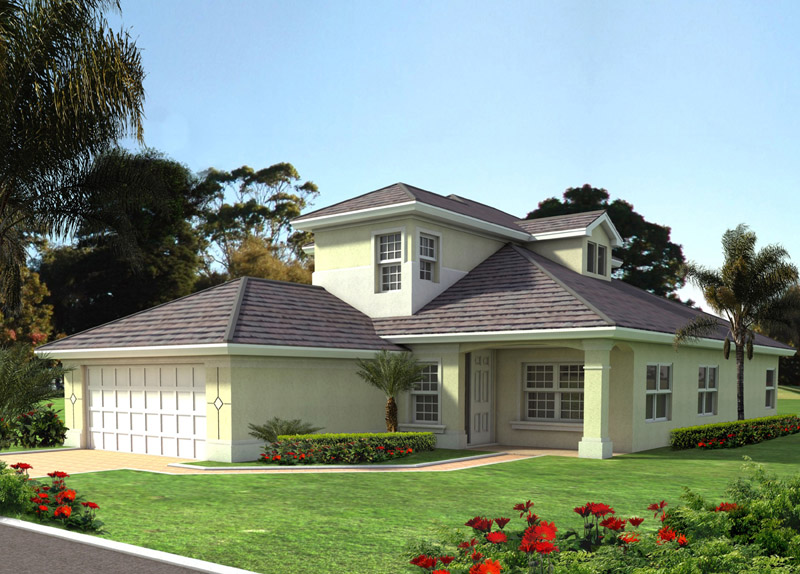

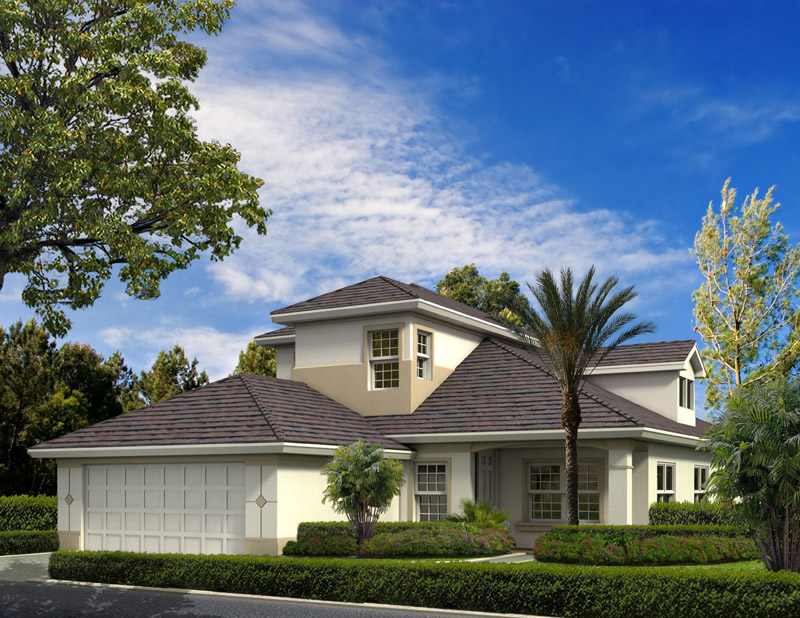

This luxurious 2,550 sq. ft., two-story Florida-style home floor plan has four bedrooms, two and one-half bathrooms and a two-car garage. The grand covered entrance provides outstanding curb appeal. This home design features optional elevations. The model has a home office, high ceilings and two volume spaces making this design feel “larger than life.” The large island kitchen with eating bar is open to a family room. The combined living room and dining room are a highlight this design. The luxurious master suite has large “His and Her” walk-in closets, tray ceiling and regal master bath opening onto a lanai. Purchase and download this home plan today.
Dimensions
-
Width x Length
40' " x 75' "
-
Height
26'-6
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
2
-
Half
0
-
Total
3

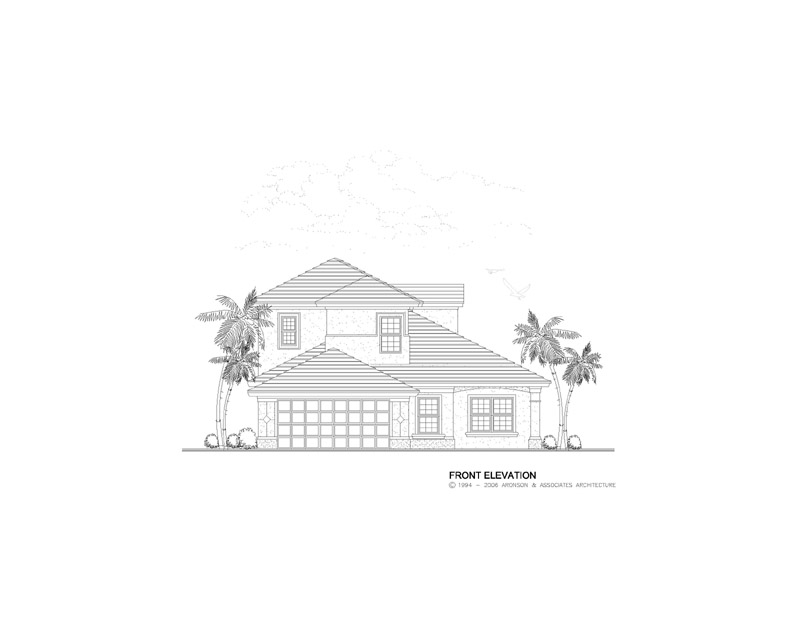

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
2
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1250
CAD Disk Price: $1850
Reverse PDF Price: $1500
Reverse CAD Price: $2100
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $750
3 Sets Price: $850
5 Sets Price: $950
8 Sets Price: $1100
Reproducible Vellum Price: $1250
Base – Not for Construction Price: $750
3 Sets (Reverse) Price: $1100
5 Sets (Reverse) Price: $1200
8 Sets (Reverse) Price: $1350
Reproducible Vellum (Reverse) Price: $1500
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Wood
-
Spacing
24
-
Subfloor
wood
-
Thickness
3/4
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140

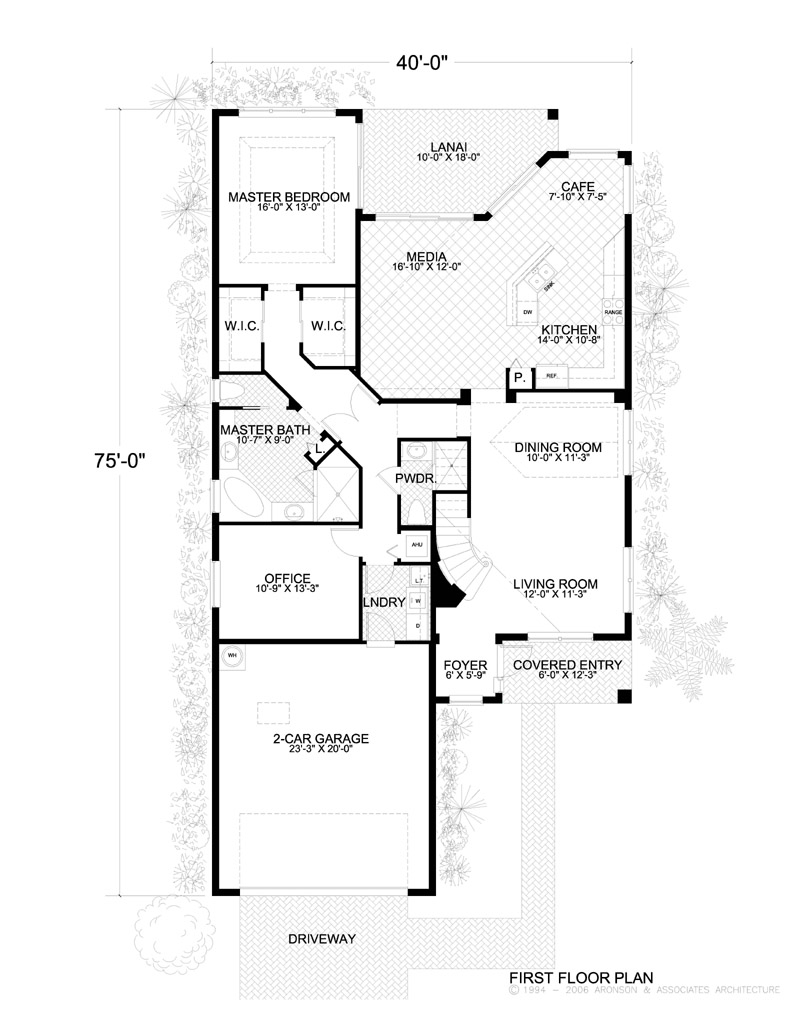

First Floor
-
Primary Living
Volume
-
Secondary Living
Volume
-
Primary Bedrooms
9'-2
-
Secondary Bedrooms
0
-
Bathrooms
9'-2
-
Common Areas
9'-2

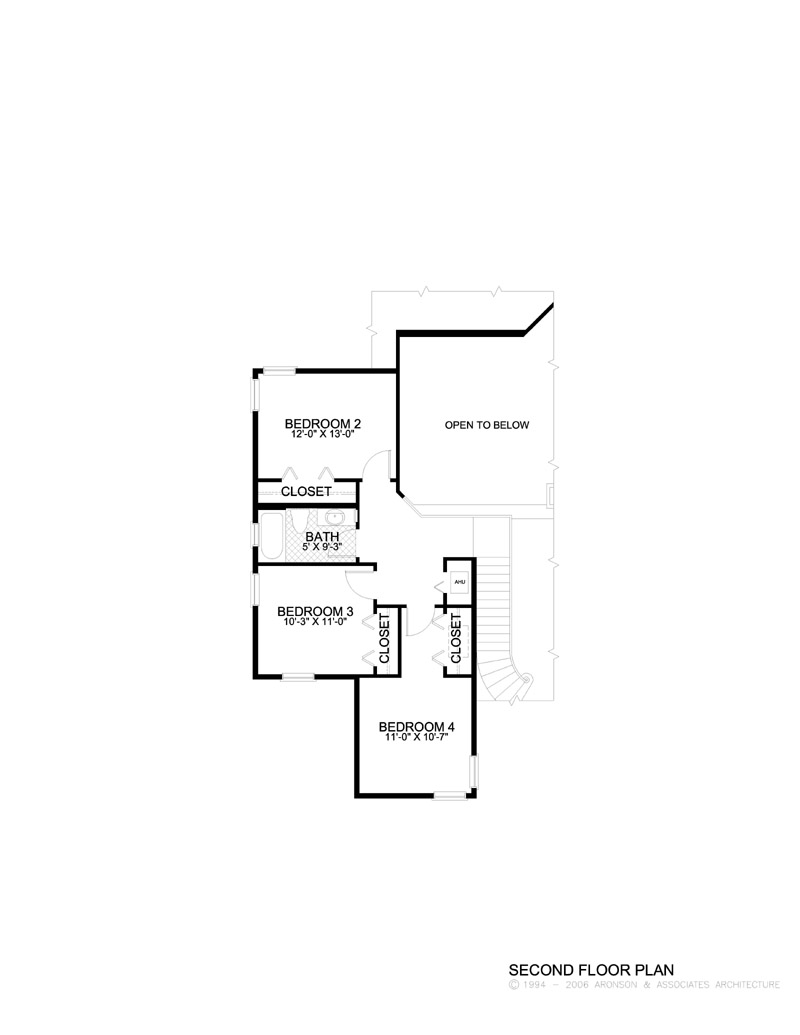

Second Floor
-
Primary Bedrooms
0
-
Secondary Bedrooms
9'
-
Bathrooms
8'
-
Common Areas
9'
Exterior
-
Garage
8'
-
Covered Entry
0
-
Covered Patio
9'-2
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1886
-
Second Floor AC
664
-
Total AC
2550
Total Under Roof Sq Ft
-
Garage
506
-
Covered Entry
162
-
Covered Patio
74
-
Covered Balconies
0
-
Total Under Roof
3292
