PLAN SUMMARY
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length:
50' " x 80' "
-
First Floor Sq Ft
2,654 Sq. Ft.
-
Total AC Sq Ft
2,654 Sq. Ft.
-
Total Under Roof Sq Ft
3,416 Sq. Ft.
$0.00
Plan Description

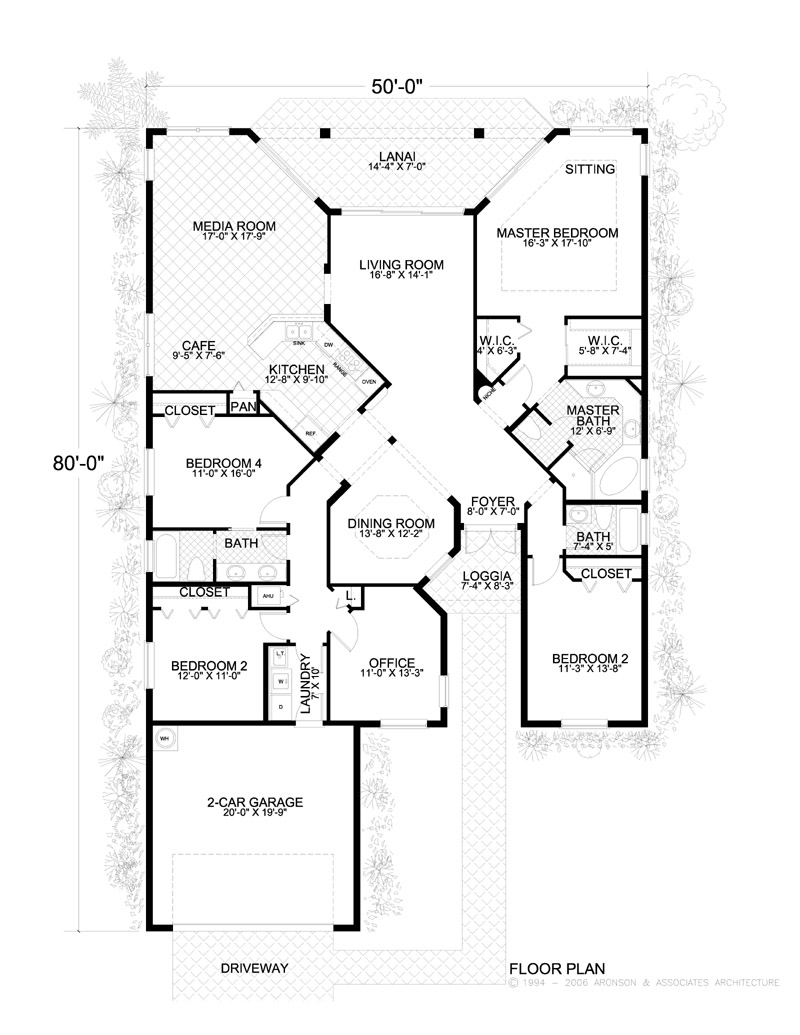

This one-story, 2,654 sq. ft., Florida-style home floor plan has four bedrooms, three bathrooms and a two-car garage. Stylish tray ceilings accent this design. Exquisite French doors with transom accent the entrance. This unique house design offers a home office. The gourmet kitchen with eating bar, pantry, and cafe which opens to a media room. The luxurious master suite has a large walk-in closet and sitting area opening to a lanai. The regal master bathroom has additional storage areas. You’ll love this home design if you seek a home designed with a spacious feeling, while providing more private areas. Purchase and download this one story home plan today.
Dimensions
-
Width x Length
50' " x 80' "
-
Height
22'-8
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
No
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
1
-
Total
4
Bathrooms
-
Full
3
-
Half
0
-
Total
3
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1250
CAD Disk Price: $1850
Reverse PDF Price: $1500
Reverse CAD Price: $2100
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $750
3 Sets Price: $850
5 Sets Price: $950
8 Sets Price: $1100
Reproducible Vellum Price: $1250
Base – Not for Construction Price: $750
3 Sets (Reverse) Price: $1100
5 Sets (Reverse) Price: $1200
8 Sets (Reverse) Price: $1350
Reproducible Vellum (Reverse) Price: $1500
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
6:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
12'
-
Secondary Living
10'
-
Primary Bedrooms
10' to 10'-8
-
Secondary Bedrooms
10'
-
Bathrooms
10'
-
Common Areas
10'
Exterior
-
Garage
8'
-
Covered Entry
0
-
Covered Patio
10'
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2654
-
Total AC
2654
Total Under Roof Sq Ft
-
Garage
437
-
Covered Entry
261
-
Covered Patio
64
-
Covered Balconies
0
-
Total Under Roof
3416
