PLAN SUMMARY
-
Stories
2
-
Bedrooms
5
-
Bathrooms
4
-
Garage
2 car
-
Width x Length:
40' " x 61' 7"
-

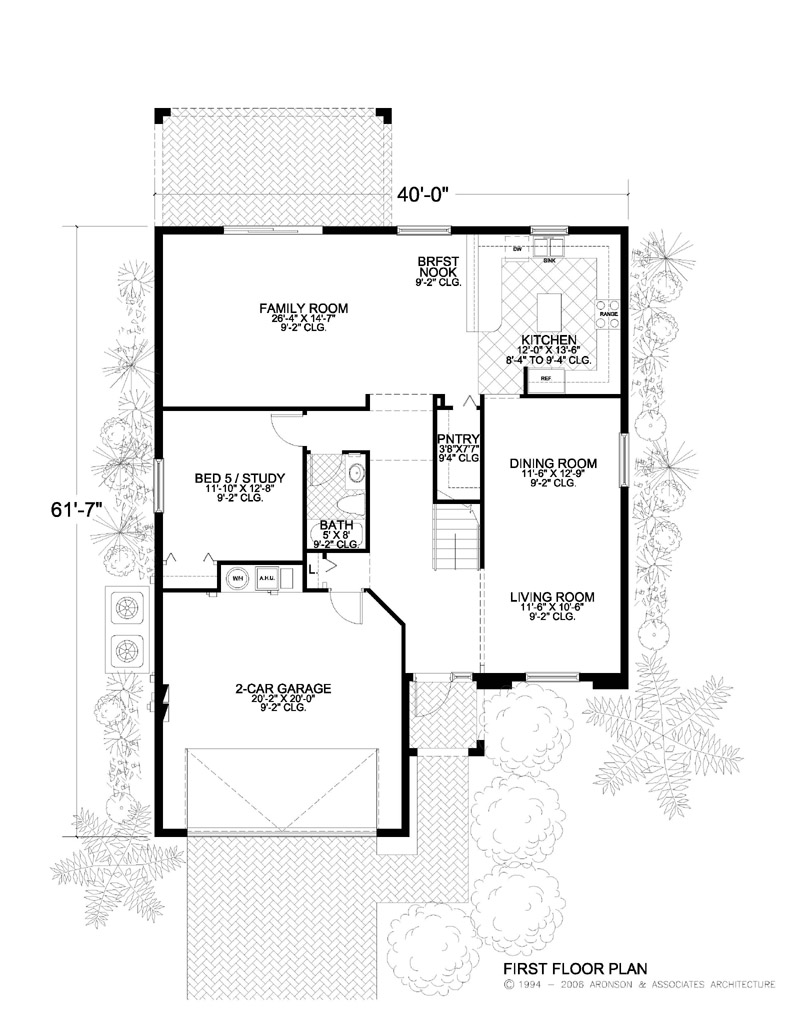

First Floor Sq Ft
1,368 Sq. Ft.
-

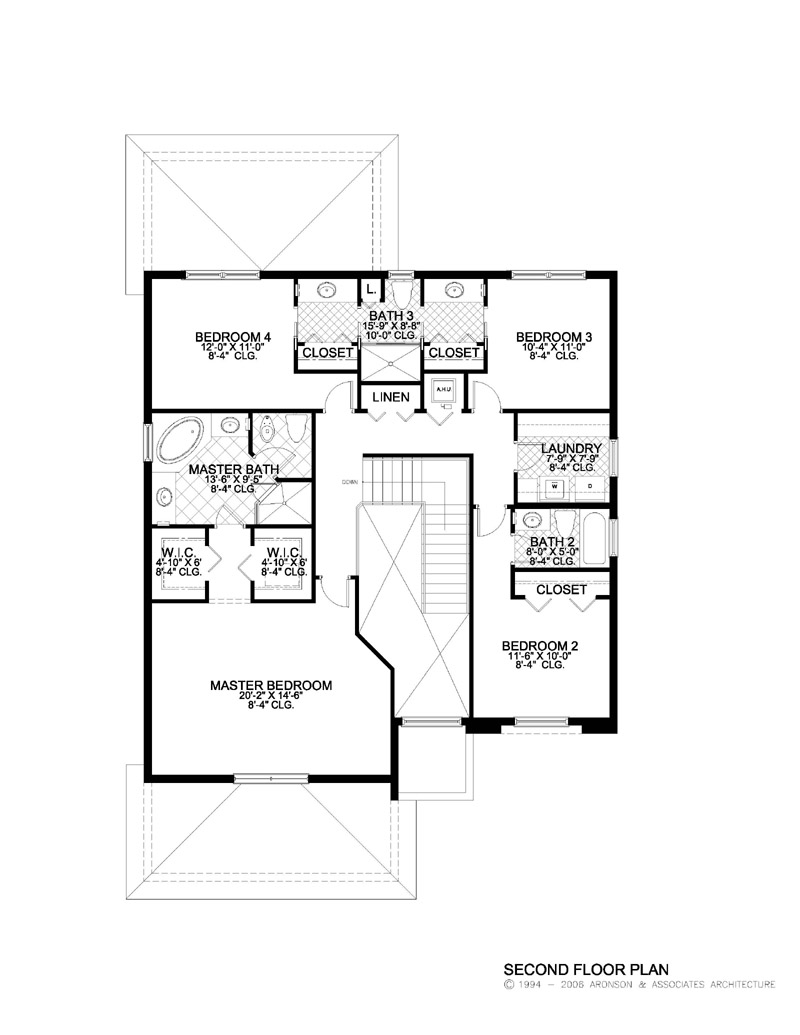

Second Floor Sq Ft
1,449 Sq. Ft.
-
Total AC Sq Ft
2,817 Sq. Ft.
-
Total Under Roof Sq Ft
2,817 Sq. Ft.
-
$0.00
Plan Description
This two-story Mediterranean home has five bedrooms, four bathrooms and a two-car garage. Two bedrooms have “Jack and Jill” bathroom; perfect for small children. The laundry room is conveniently located on the second floor. The study room on first floor can be used as a fifth bedroom, if needed!
Dimensions
-
Width x Length
40' " x 61' 7"
-
Height
26'-6
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
0
-
Total
5
Bathrooms
-
Full
4
-
Half
0
-
Total
4

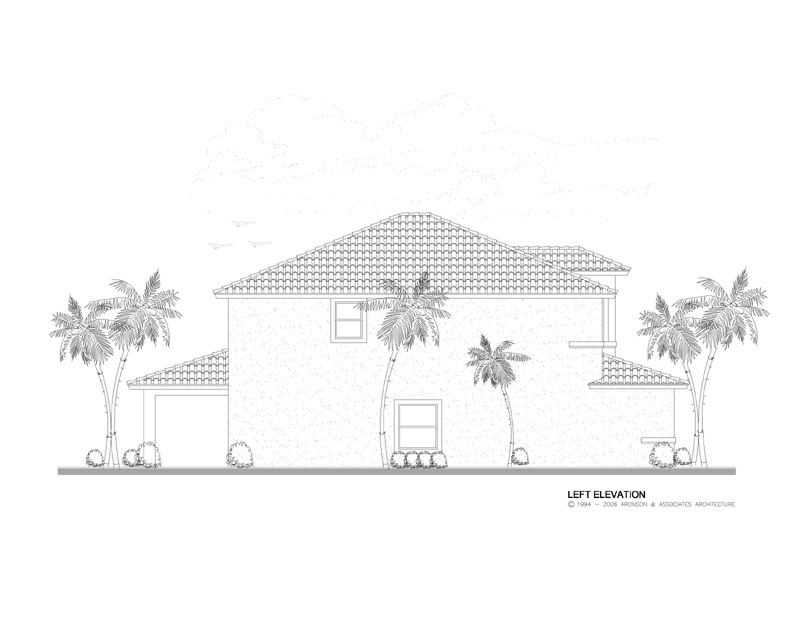

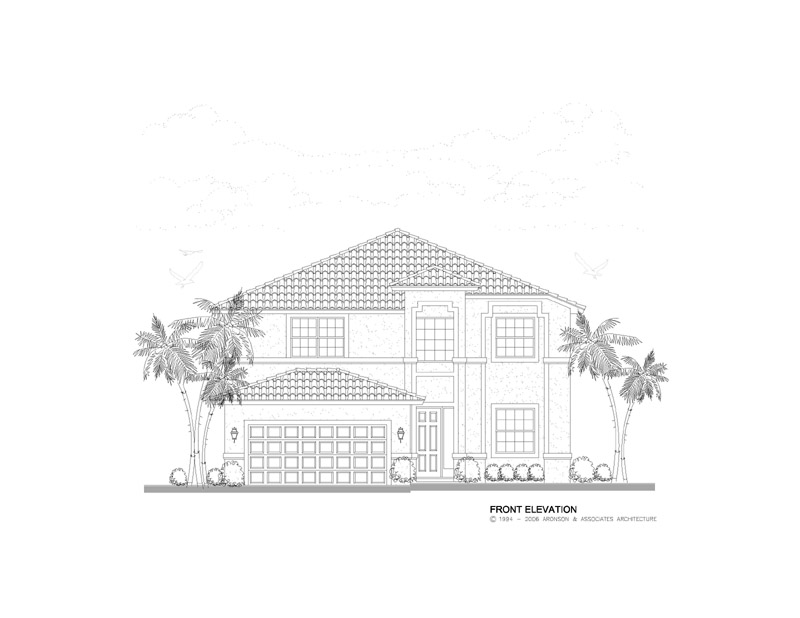

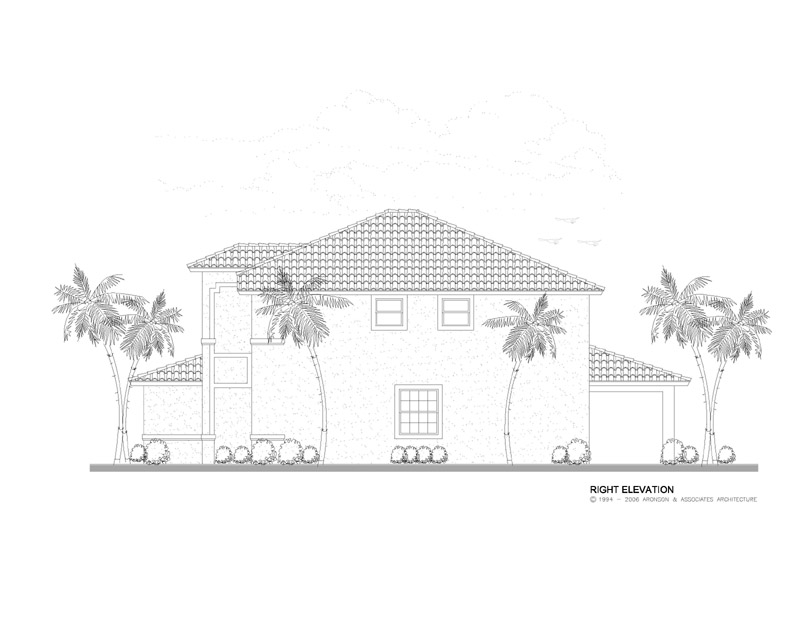

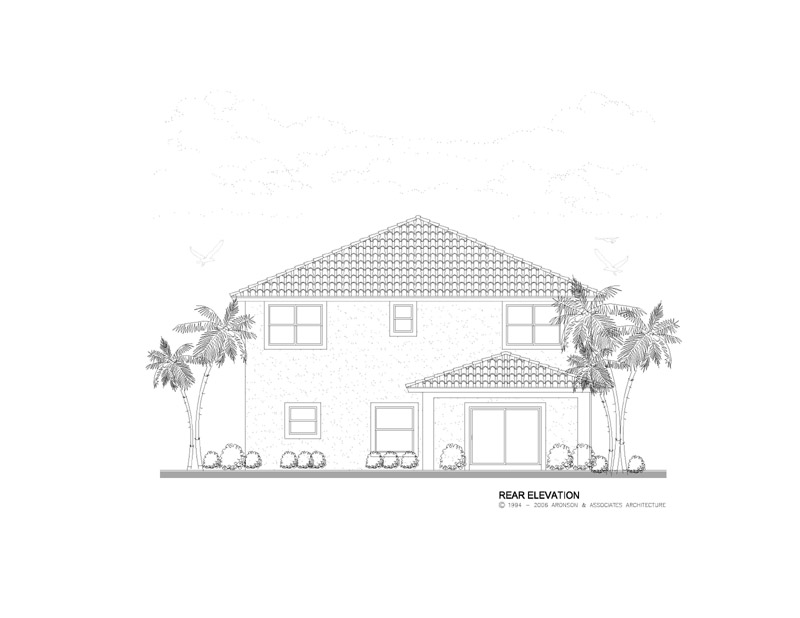

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1250
CAD Disk Price: $1850
Reverse PDF Price: $1500
Reverse CAD Price: $2100
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $750
3 Sets Price: $850
5 Sets Price: $950
8 Sets Price: $1100
Reproducible Vellum Price: $1250
Base – Not for Construction Price: $750
3 Sets (Reverse) Price: $1100
5 Sets (Reverse) Price: $1200
8 Sets (Reverse) Price: $1350
Reproducible Vellum (Reverse) Price: $1500
Foundation Type
-
Type
0
-
Option
0
Floor System
-
Type
Wood
-
Spacing
24
-
Subfloor
wood
-
Thickness
3/4
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
9'-2
-
Secondary Living
9'-2
-
Primary Bedrooms
-
Secondary Bedrooms
9'-2
-
Bathrooms
0
-
Common Areas
0
Second Floor
-
Primary Bedrooms
8'-4
-
Secondary Bedrooms
8'-4
-
Bathrooms
8'-4
-
Common Areas
0
Exterior
-
Garage
9'-2
-
Covered Entry
0
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1368
-
Second Floor AC
1449
-
Total AC
2817
Total Under Roof Sq Ft
-
Garage
452
-
Covered Entry
40
-
Covered Patio
200
-
Covered Balconies
0
-
Total Under Roof
2817
