PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length:
50' " x 80' "
-
First Floor Sq Ft
2,112 Sq. Ft.
-
Second Floor Sq Ft
926 Sq. Ft.
-
Total AC Sq Ft
3,038 Sq. Ft.
-
Total Under Roof Sq Ft
3,832 Sq. Ft.
$0.00
Plan Description
This beautiful, 3,038 sq. ft., two-story, Florida Mediterranean-style home floor plan features four bedrooms, two bathrooms plus a cabana and a two-car garage. There is a grand towering covered entrance. The design includes a large island kitchen with eating bar and breakfast area opening to the dining room and breakfast cafe. The master suite has large “His and Hers” walk-in closets, tray ceilings and a regal master bathroom; all adding to the luxury of this design. Purchase this beautiful 2-story home plan today.
Dimensions
-
Width x Length
50' " x 80' "
-
Height
28'-7
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
2
-
Half
1
-
Total
3

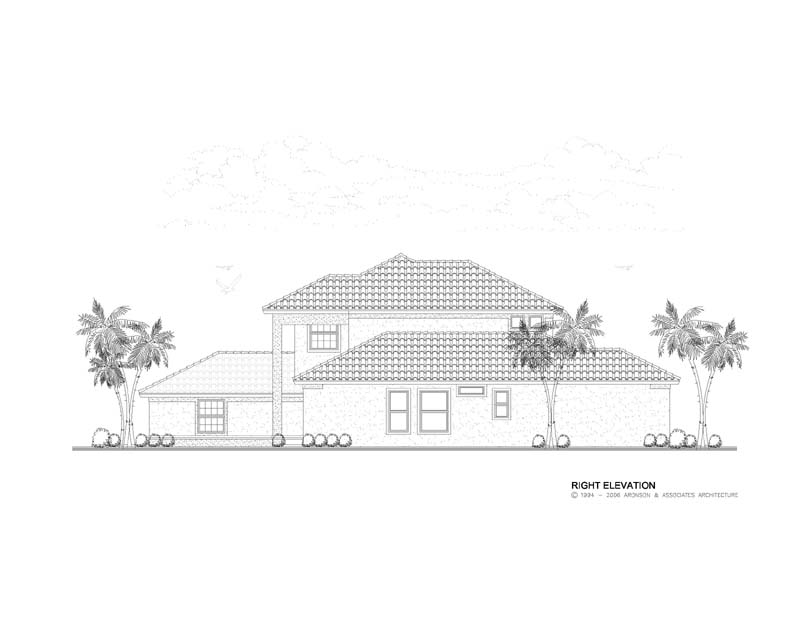

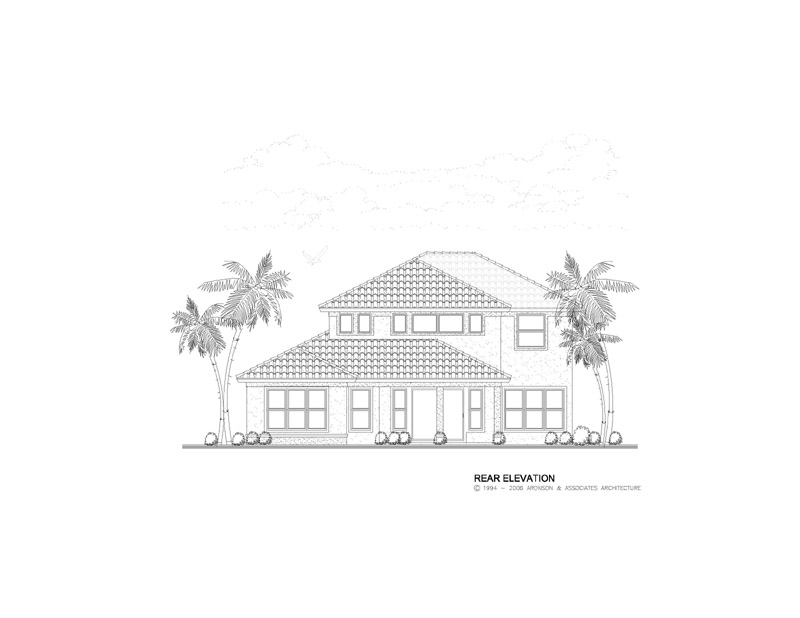

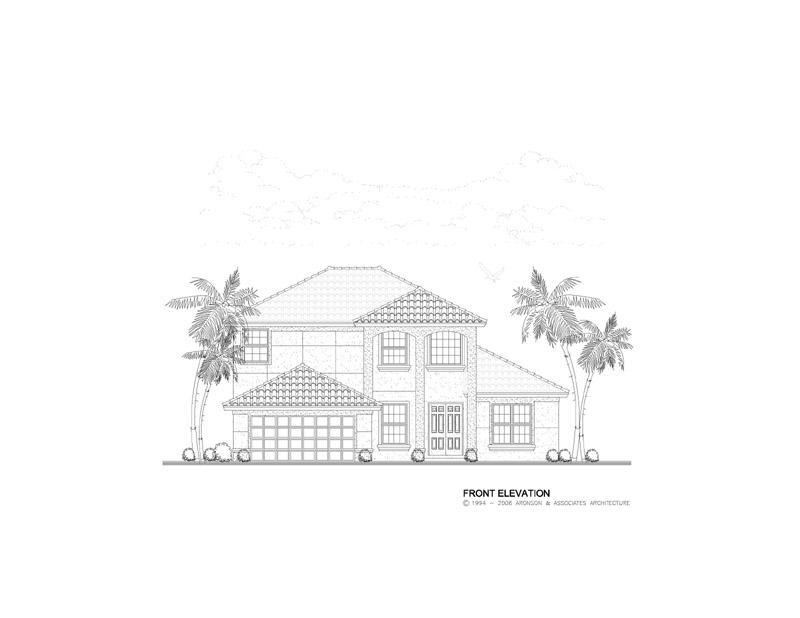

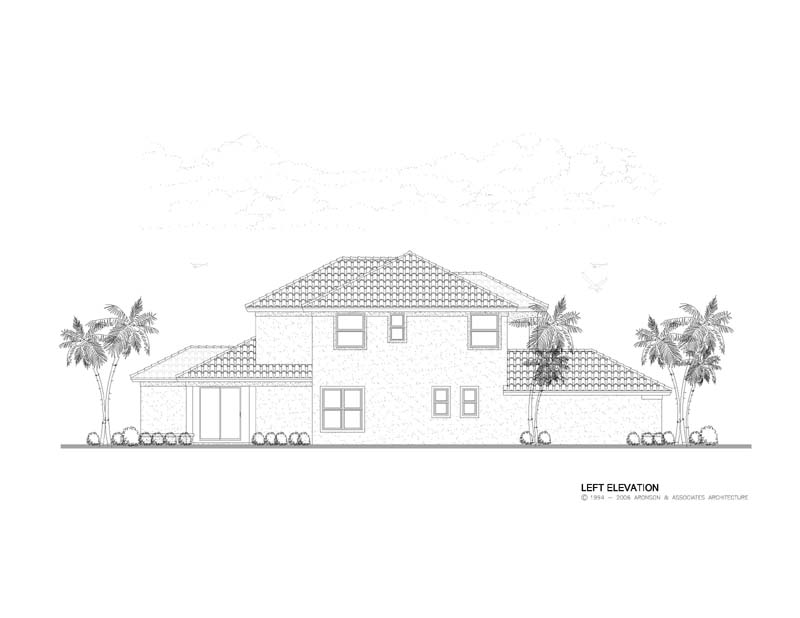

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
2
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1350
CAD Disk Price: $2050
Reverse PDF Price: $1600
Reverse CAD Price: $2300
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $850
3 Sets Price: $950
5 Sets Price: $1050
8 Sets Price: $1200
Reproducible Vellum Price: $1350
Base – Not for Construction Price: $850
3 Sets (Reverse) Price: $1150
5 Sets (Reverse) Price: $1300
8 Sets (Reverse) Price: $1450
Reproducible Vellum (Reverse) Price: $1600
Foundation Type
-
Type
Grade Beams/Piling
-
Option
0
Floor System
-
Type
concrete
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
S. Tile
-
Wind Speed
140

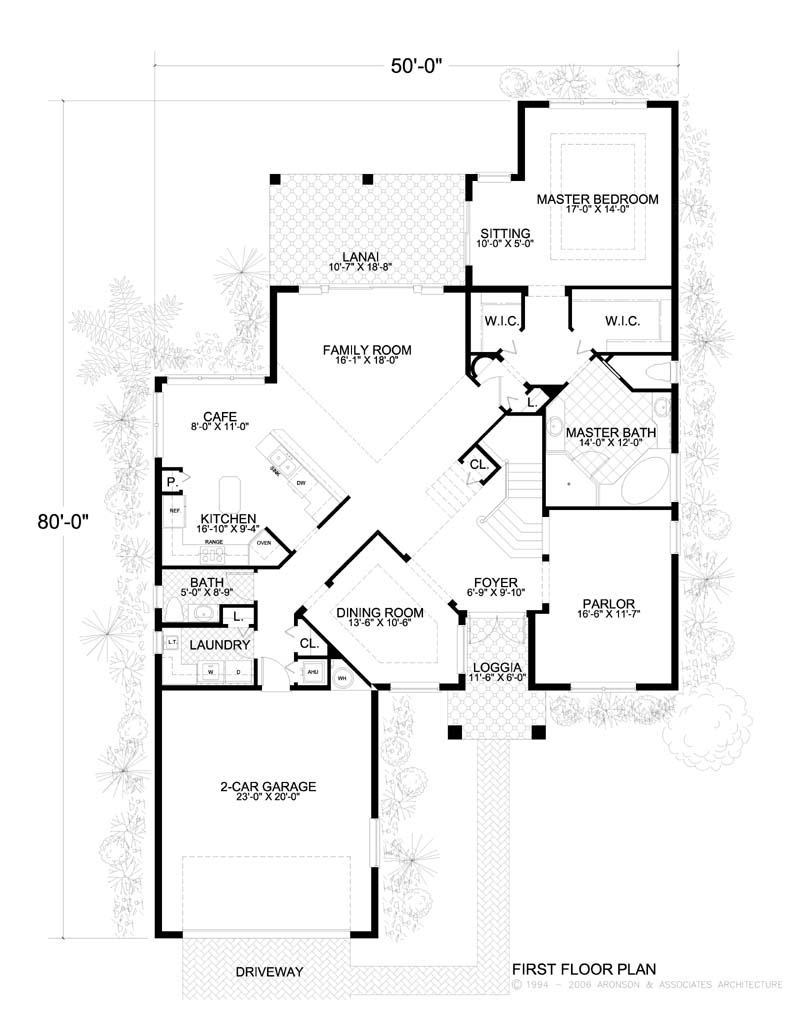

First Floor
-
Primary Living
10'-0
-
Secondary Living
10'-0
-
Primary Bedrooms
-
Secondary Bedrooms
0
-
Bathrooms
10'-0
-
Common Areas
10'-0

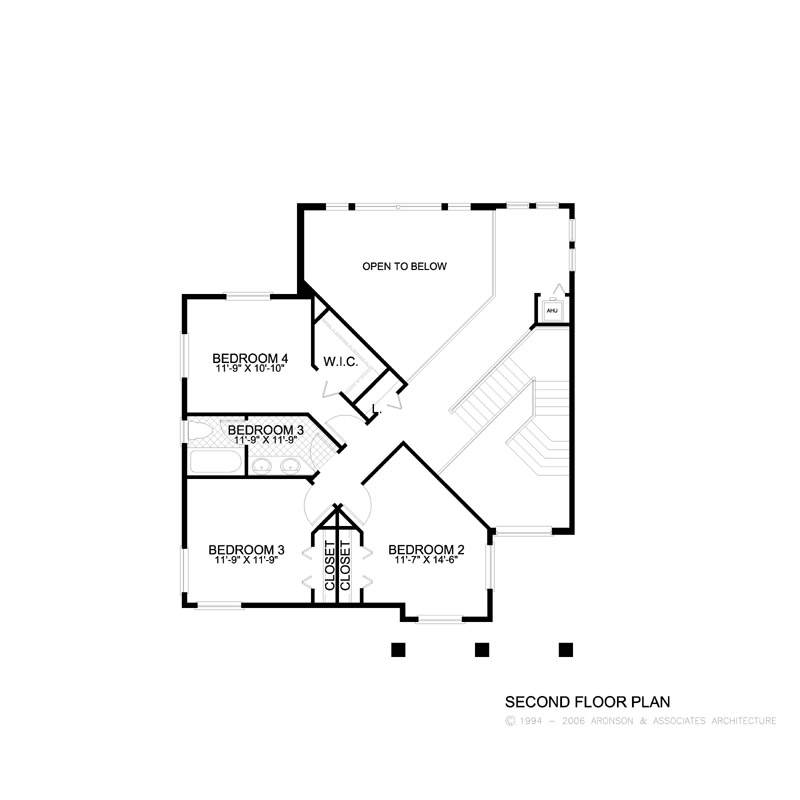

Second Floor
-
Primary Bedrooms
0
-
Secondary Bedrooms
9'-4
-
Bathrooms
9'-4
-
Common Areas
0
Exterior
-
Garage
8'-0
-
Covered Entry
10'-8
-
Covered Patio
10'-0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2112
-
Second Floor AC
926
-
Total AC
3038
Total Under Roof Sq Ft
-
Garage
513
-
Covered Entry
82
-
Covered Patio
199
-
Covered Balconies
0
-
Total Under Roof
3832
