PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
4
-
Garage
3 car
-
Width x Length:
59' 10" x 59' 1"
-
First Floor Sq Ft
2,259 Sq. Ft.
-
Second Floor Sq Ft
907 Sq. Ft.
-
Total AC Sq Ft
3,166 Sq. Ft.
-
Total Under Roof Sq Ft
3,787 Sq. Ft.
-
$0.00
Plan Description
This 3,166 sq. ft., two-story home floor plan has four bedrooms, four bathrooms and a three-car garage. Each bedroom suite has access to a bathroom. The ultimate master suite features “His and Hers” walk-in closets, stylish tray ceilings, a private study and a luxurious master bath. This plan is very well-suited for a narrow lot. Download the 2-story home floor plan today.
Dimensions
-
Width x Length
59' 10" x 59' 1"
-
Height
27'-4
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
4
-
Half
0
-
Total
4

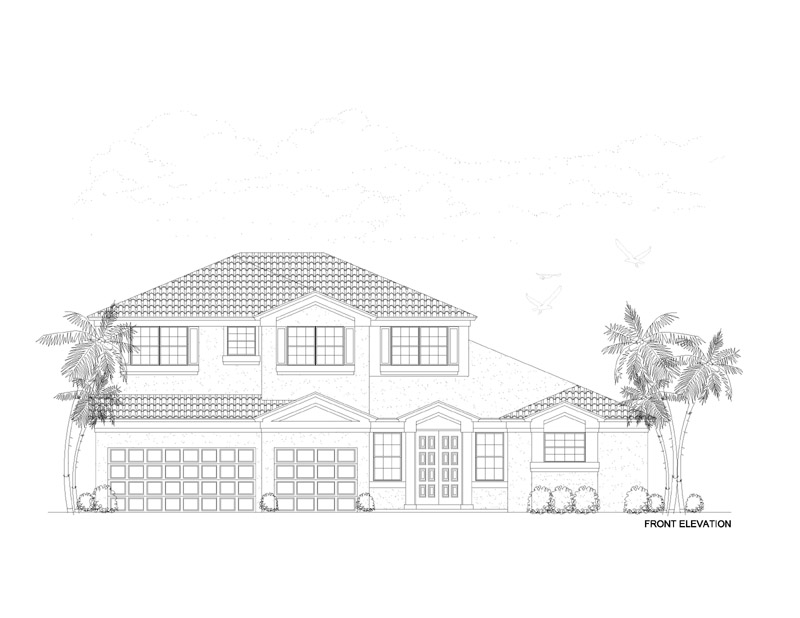

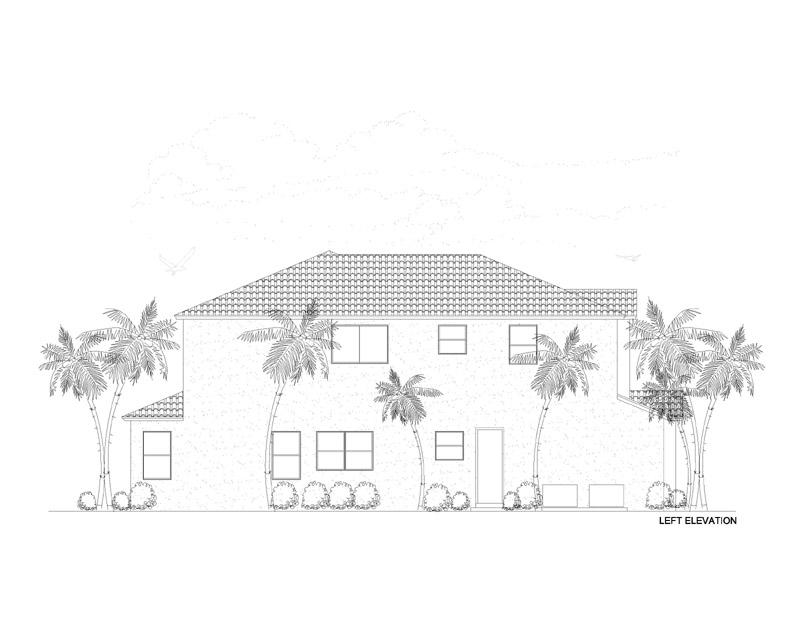

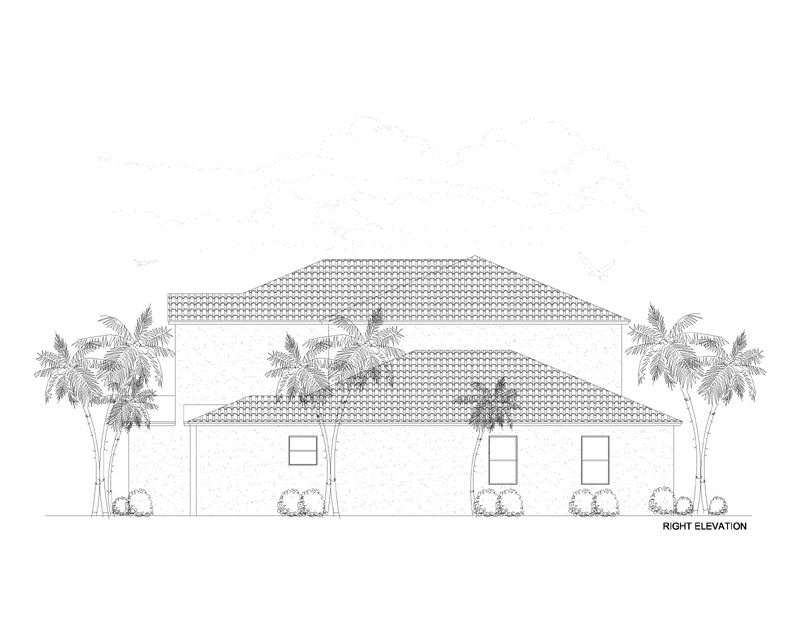

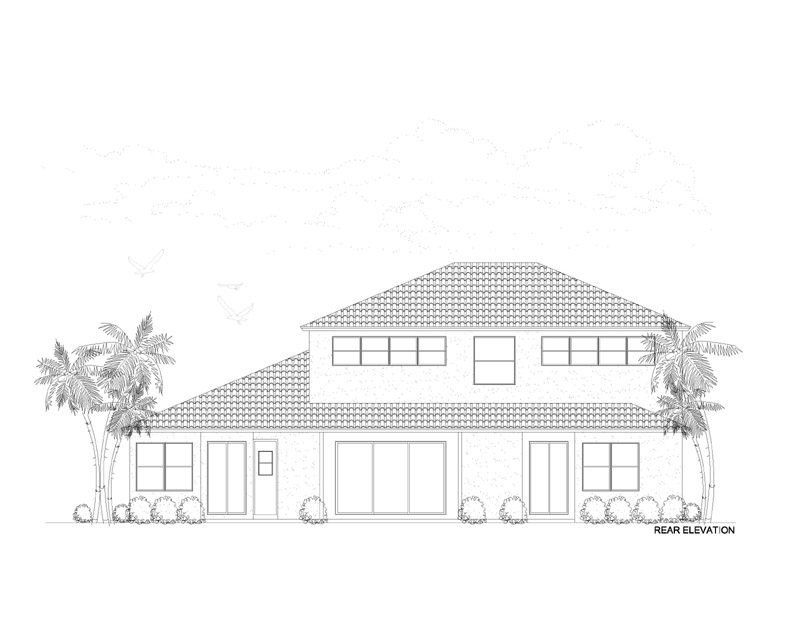

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
2
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1350
CAD Disk Price: $2050
Reverse PDF Price: $1600
Reverse CAD Price: $2300
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $850
3 Sets Price: $950
5 Sets Price: $1050
8 Sets Price: $1200
Reproducible Vellum Price: $1350
Base – Not for Construction Price: $850
3 Sets (Reverse) Price: $1150
5 Sets (Reverse) Price: $1300
8 Sets (Reverse) Price: $1450
Reproducible Vellum (Reverse) Price: $1600
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140

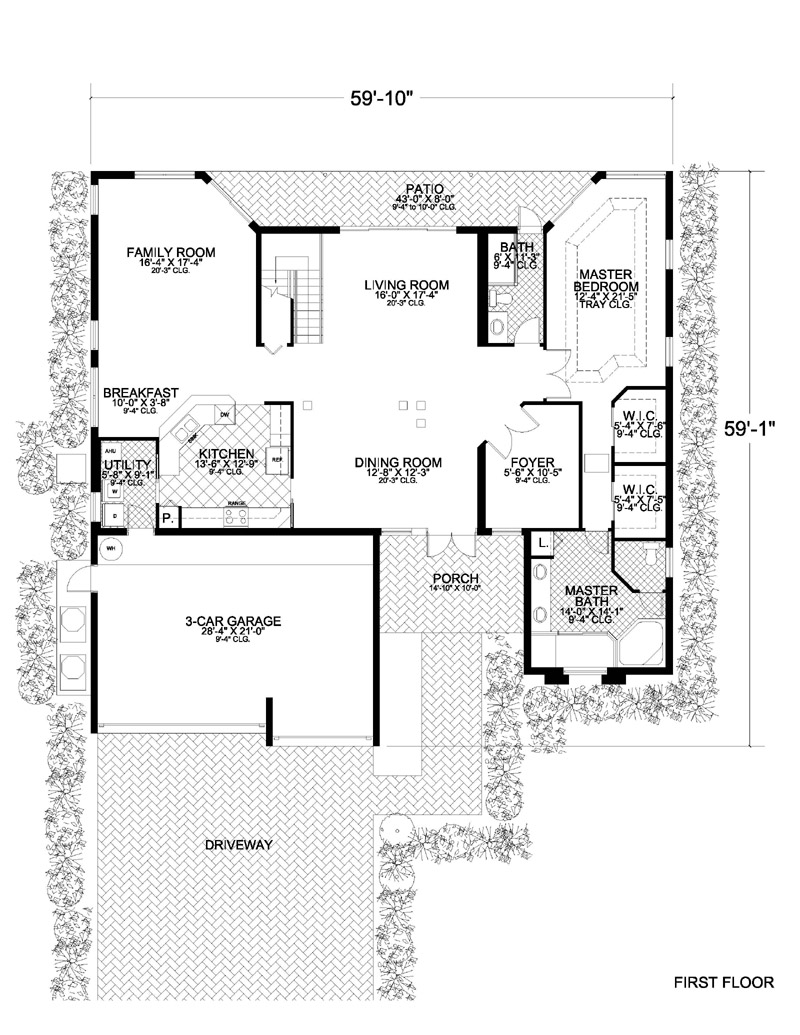

First Floor
-
Primary Living
11'-10
-
Secondary Living
11'-10
-
Primary Bedrooms
11'-10
-
Secondary Bedrooms
9'-10
-
Bathrooms
9'-10
-
Common Areas
0

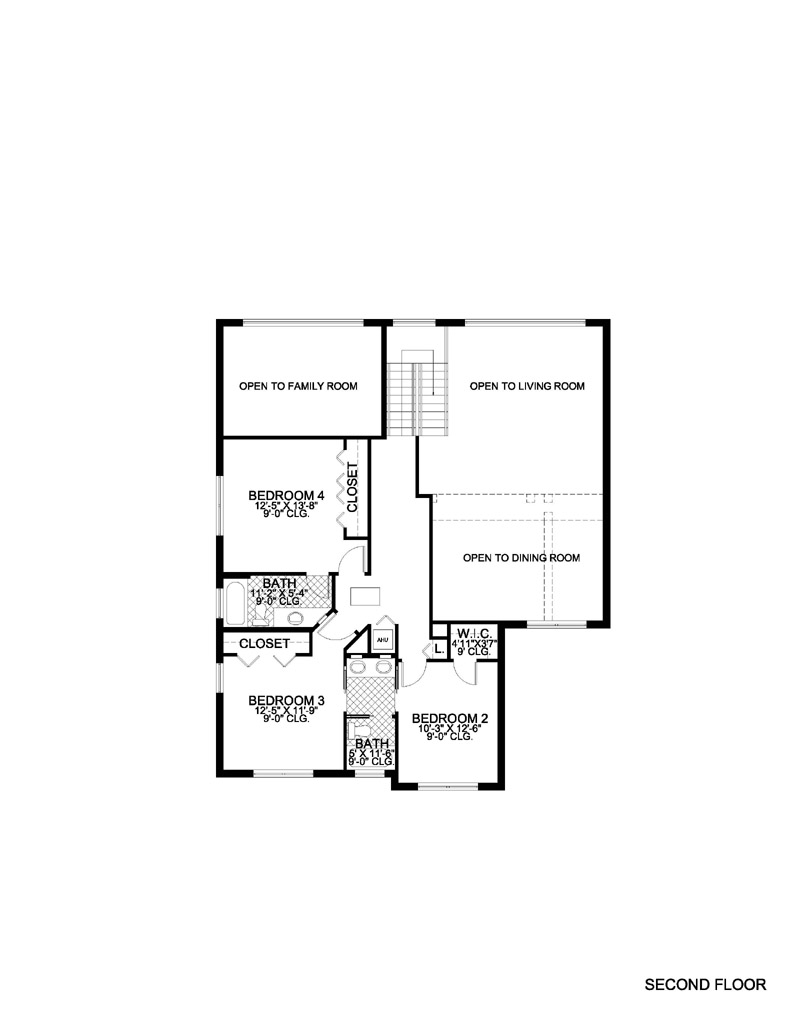

Second Floor
-
Primary Bedrooms
0
-
Secondary Bedrooms
0
-
Bathrooms
0
-
Common Areas
0
Exterior
-
Garage
7'-10
-
Covered Entry
14'-3
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2259
-
Second Floor AC
907
-
Total AC
3166
Total Under Roof Sq Ft
-
Garage
621
-
Covered Entry
0
-
Covered Patio
0
-
Covered Balconies
0
-
Total Under Roof
3787
