PLAN SUMMARY
-
Stories
2
-
Bedrooms
5
-
Bathrooms
4
-
Garage
2 car
-
Width x Length:
49' 10" x 62' 8"
-
First Floor Sq Ft
1,784 Sq. Ft.
-
Second Floor Sq Ft
1,479 Sq. Ft.
-
Total AC Sq Ft
3,263 Sq. Ft.
-
Total Under Roof Sq Ft
4,024 Sq. Ft.
-
$0.00
Plan Description

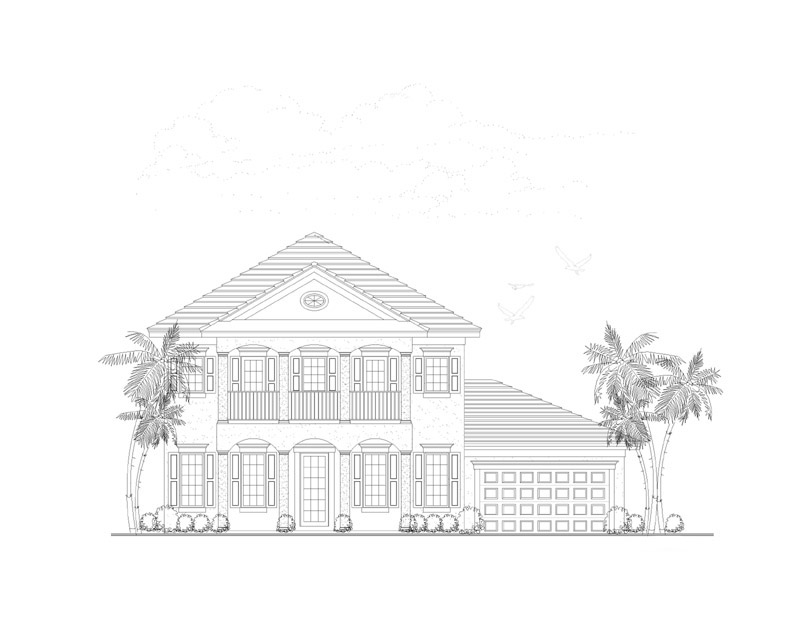

This 3,263 sq. ft. two-story Colonial style home has five bedrooms, four and a half bathrooms and a two-car garage. The large master suite includes master bath and walk-in closet. The design places the master bedroom with privacy in mind. A spacious combination foyer, dinning room, living room opens to the back patio and a large family. The centralized kitchen provided a breakfast area and a lot of space for entertainment.
Dimensions
-
Width x Length
49' 10" x 62' 8"
-
Height
31'-8
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
0
-
Total
5
Bathrooms
-
Full
4
-
Half
0
-
Total
4

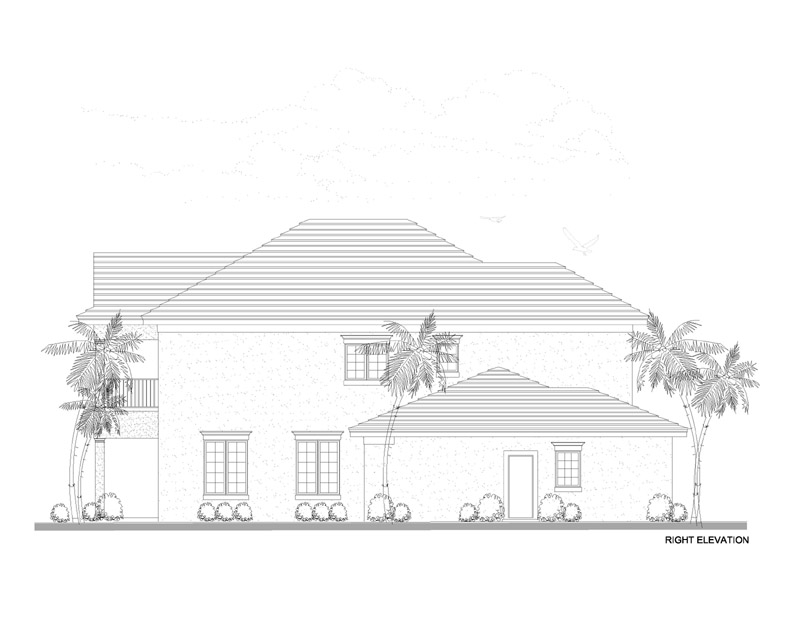

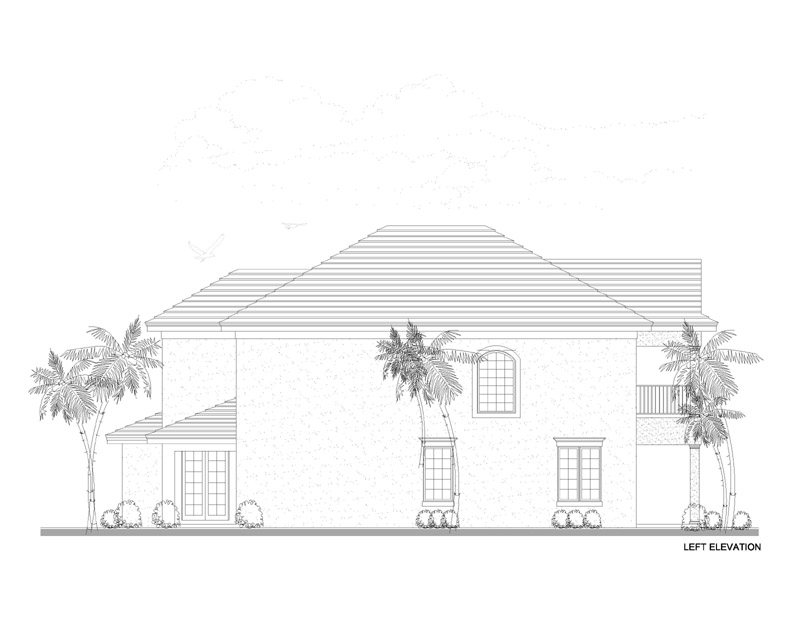

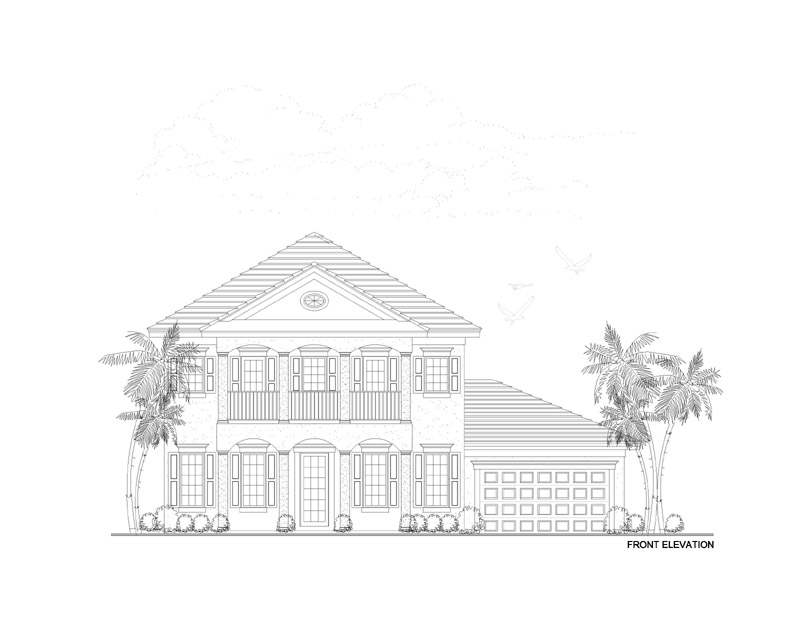

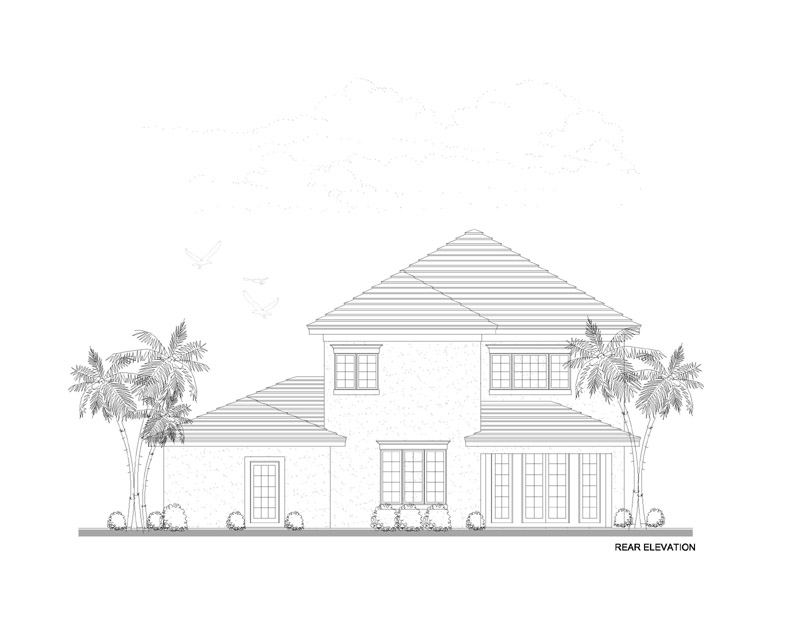

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1350
CAD Disk Price: $2050
Reverse PDF Price: $1600
Reverse CAD Price: $2300
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $850
3 Sets Price: $950
5 Sets Price: $1050
8 Sets Price: $1200
Reproducible Vellum Price: $1350
Base – Not for Construction Price: $850
3 Sets (Reverse) Price: $1150
5 Sets (Reverse) Price: $1300
8 Sets (Reverse) Price: $1450
Reproducible Vellum (Reverse) Price: $1600
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
wood truss
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
7:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140

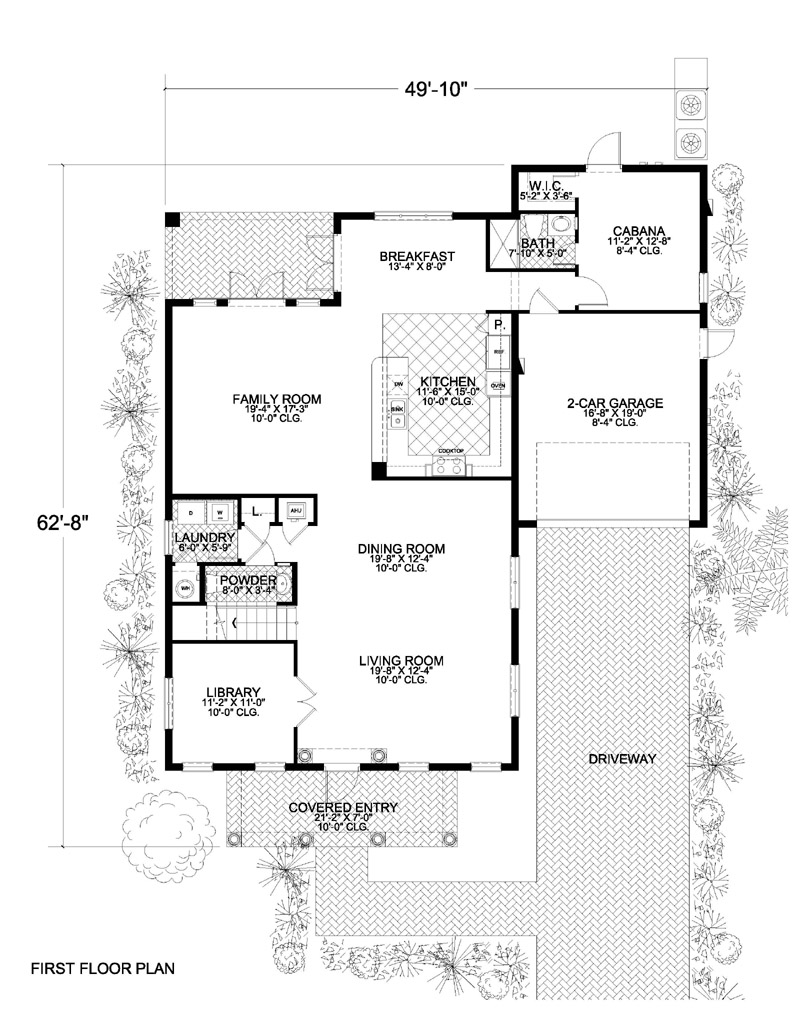

First Floor
-
Primary Living
10'-2
-
Secondary Living
10'-2
-
Primary Bedrooms
0
-
Secondary Bedrooms
10'-2
-
Bathrooms
10'-2
-
Common Areas
0

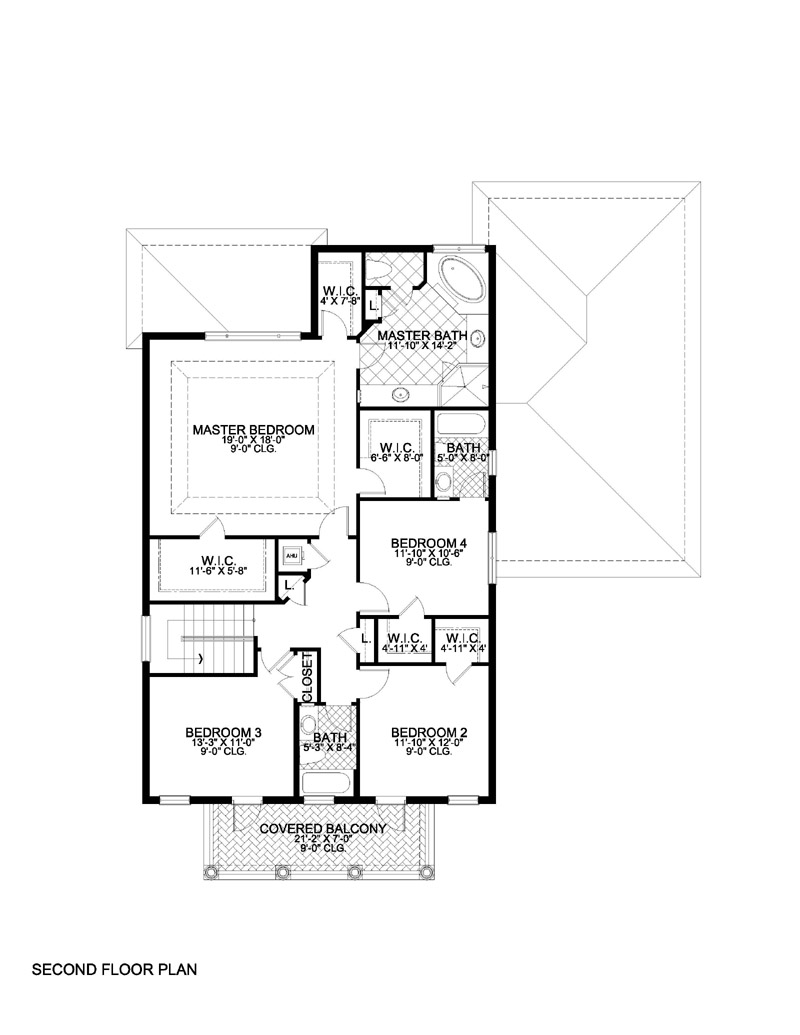

Second Floor
-
Primary Bedrooms
9'-0
-
Secondary Bedrooms
9'-0
-
Bathrooms
9'-0
-
Common Areas
0
Exterior
-
Garage
8'-6
-
Covered Entry
10'-2
-
Covered Patio
10'-2
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1784
-
Second Floor AC
1479
-
Total AC
3263
Total Under Roof Sq Ft
-
Garage
341
-
Covered Entry
148
-
Covered Patio
124
-
Covered Balconies
148
-
Total Under Roof
4024
