PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
3
-
Garage
3 car
-
Width x Length:
60' " x 74' "
-
First Floor Sq Ft
2,534 Sq. Ft.
-
Second Floor Sq Ft
733 Sq. Ft.
-
Total AC Sq Ft
3,267 Sq. Ft.
-
Total Under Roof Sq Ft
4,353 Sq. Ft.
$0.00
Plan Description

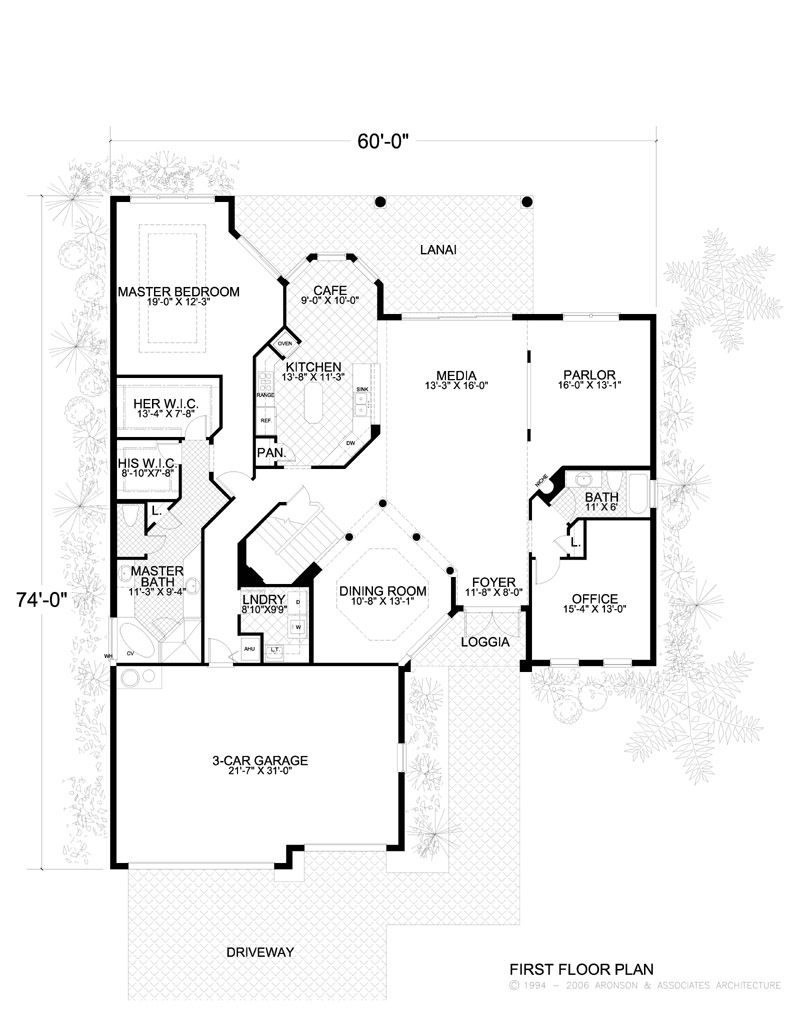

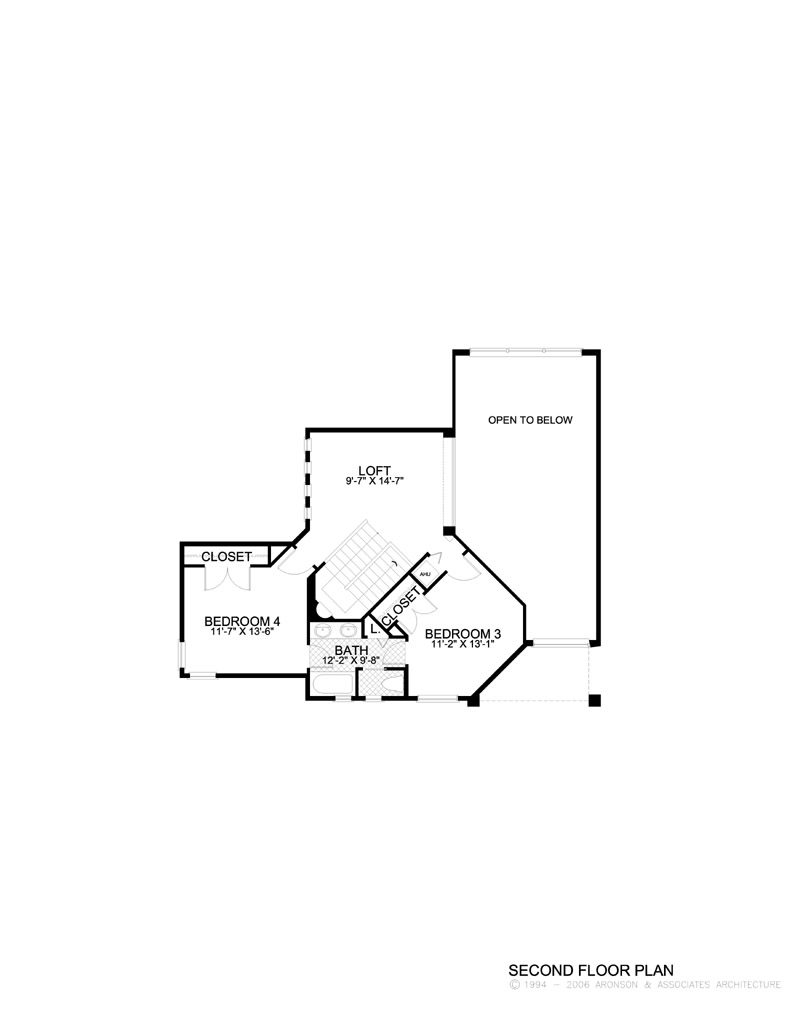

This 3,267 sq. ft., two-story home floor plan has four bedrooms, three bathrooms and a three-car garage. This Contemporary open design offers optional elevations. The model features a home office. The large island kitchen has an eating bar and Cafe opening to a media room. This design includes a luxurious master suite with walk-in closets, sitting area and a regal master bath that opens to a covered lanai. Get this home floor plan today.
Dimensions
-
Width x Length
60' " x 74' "
-
Height
31'-10
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
No
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
1
-
Total
4
Bathrooms
-
Full
3
-
Half
0
-
Total
3
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
2
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1350
CAD Disk Price: $2050
Reverse PDF Price: $1600
Reverse CAD Price: $2300
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $850
3 Sets Price: $950
5 Sets Price: $1050
8 Sets Price: $1200
Reproducible Vellum Price: $1350
Base – Not for Construction Price: $850
3 Sets (Reverse) Price: $1150
5 Sets (Reverse) Price: $1300
8 Sets (Reverse) Price: $1450
Reproducible Vellum (Reverse) Price: $1600
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Wood truss
-
Spacing
24
-
Subfloor
wood
-
Thickness
3/4
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
10'
-
Secondary Living
Open to above
-
Primary Bedrooms
10' to 11'-4
-
Secondary Bedrooms
10'
-
Bathrooms
10'
-
Common Areas
10'
Second Floor
-
Primary Bedrooms
0
-
Secondary Bedrooms
9'-2
-
Bathrooms
9'-2
-
Common Areas
9'-2
Exterior
-
Garage
8'
-
Covered Entry
20'-10
-
Covered Patio
10'-0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2534
-
Second Floor AC
733
-
Total AC
3267
Total Under Roof Sq Ft
-
Garage
697
-
Covered Entry
62
-
Covered Patio
327
-
Covered Balconies
0
-
Total Under Roof
4353
