PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
3
-
Garage
2 car
-
Width x Length:
58' " x 94' 11"
-
First Floor Sq Ft
3,368 Sq. Ft.
-
Total AC Sq Ft
3,368 Sq. Ft.
-
Total Under Roof Sq Ft
4,529 Sq. Ft.
$0.00
Plan Description

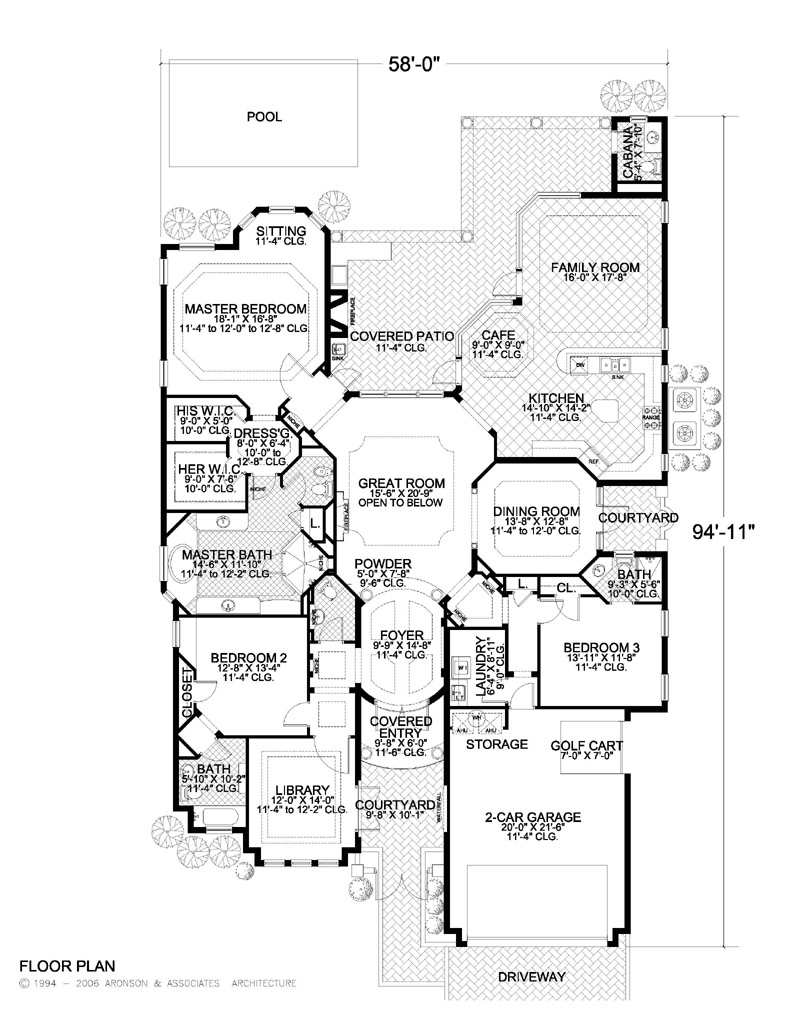

This beautiful, 3,368 sq. ft. one-story, Spanish Mediterranean house plan features three bedrooms, three and one-half bathrooms plus a cabana, a two-car garage, grand covered entry with eight foot high custom wood door and a large covered patio with summer kitchen. The floor plan provides a large island kitchen with an eating bar and breakfast area opening to the family room. A formal dining room opens to a courtyard. The cozy design of the library is perfect as a retreat and an exclusive master suite features “His and Hers” walk-in closets, stylish tray ceilings and a large master bathroom with access to a covered patio, adding to the luxury of this design. Purchase this beautiful house floor plan today.
Dimensions
-
Width x Length
58' " x 94' 11"
-
Height
24'-10
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
No
-
Location
Right
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
3
-
Half
2
-
Total
3
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
Yes
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1350
CAD Disk Price: $2050
Reverse PDF Price: $1600
Reverse CAD Price: $2300
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $850
3 Sets Price: $950
5 Sets Price: $1050
8 Sets Price: $1200
Reproducible Vellum Price: $1350
Base – Not for Construction Price: $850
3 Sets (Reverse) Price: $1150
5 Sets (Reverse) Price: $1300
8 Sets (Reverse) Price: $1450
Reproducible Vellum (Reverse) Price: $1600
Foundation Type
-
Type
monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140
First Floor
-
Primary Living
19'-0
-
Secondary Living
11'-4
-
Primary Bedrooms
11'-4
-
Secondary Bedrooms
11'-4
-
Bathrooms
10'-0
-
Common Areas
11'-4
Exterior
-
Garage
12'-0
-
Covered Entry
11'-8
-
Covered Patio
11'-3
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
3368
-
Total AC
3368
Total Under Roof Sq Ft
-
Garage
540
-
Covered Entry
66
-
Covered Patio
555
-
Covered Balconies
0
-
Total Under Roof
4529
