PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
3
-
Garage
2 car
-
Width x Length:
74' 1" x 93' 8"
-
First Floor Sq Ft
3,446 Sq. Ft.
-
Total AC Sq Ft
3,446 Sq. Ft.
-
Total Under Roof Sq Ft
4,147 Sq. Ft.
-
$0.00
Plan Description
This luxurious, one-story home features three bedrooms, three and (2) one-half bathrooms, a two-car garage, plus a separate golf cart parking garage. High ceilings make this design feel “larger than life”. This unique design has a media room. The Contemporary open layout floor plan gives this home a spacious appeal. There is a huge island kitchen featuring an eating bar and cafe. A spectacular great room has a stately fireplace. This home is truly a castle!
Dimensions
-
Width x Length
74' 1" x 93' 8"
-
Height
28'-2
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
3
-
Half
2
-
Total
3
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
Yes
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1350
CAD Disk Price: $2050
Reverse PDF Price: $1600
Reverse CAD Price: $2300
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $850
3 Sets Price: $950
5 Sets Price: $1050
8 Sets Price: $1200
Reproducible Vellum Price: $1350
Base – Not for Construction Price: $850
3 Sets (Reverse) Price: $1150
5 Sets (Reverse) Price: $1300
8 Sets (Reverse) Price: $1450
Reproducible Vellum (Reverse) Price: $1600
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140

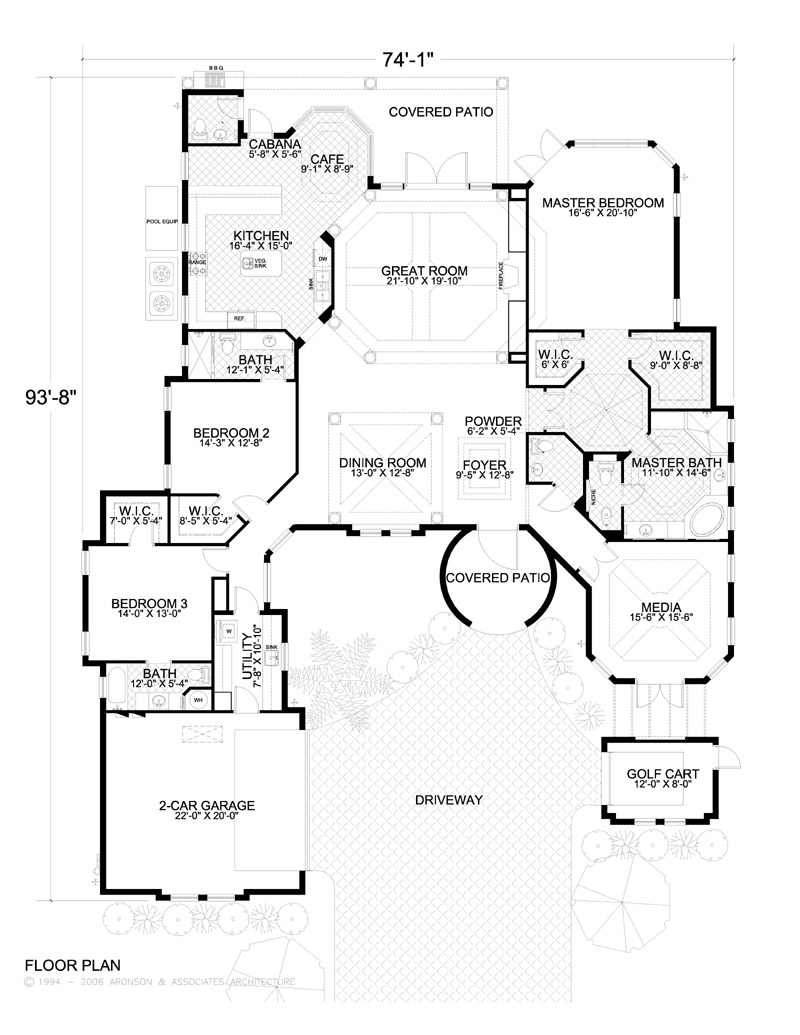

First Floor
-
Primary Living
22'-4
-
Secondary Living
14'-6 TO 16'-6
-
Primary Bedrooms
12'-6
-
Secondary Bedrooms
11'-4
-
Bathrooms
10'
-
Common Areas
10'
Exterior
-
Garage
10'-0
-
Covered Entry
14'-6
-
Covered Patio
12'-6
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
3446
-
Total AC
3446
Total Under Roof Sq Ft
-
Garage
499
-
Covered Entry
135
-
Covered Patio
67
-
Covered Balconies
0
-
Total Under Roof
4147
