PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
5
-
Garage
3 car
-
Width x Length:
100' 2" x 107' 5"
-
First Floor Sq Ft
3,869 Sq. Ft.
-
Second Floor Sq Ft
1,266 Sq. Ft.
-
Total AC Sq Ft
5,135 Sq. Ft.
-
Total Under Roof Sq Ft
6,798 Sq. Ft.
$0.00
Plan Description

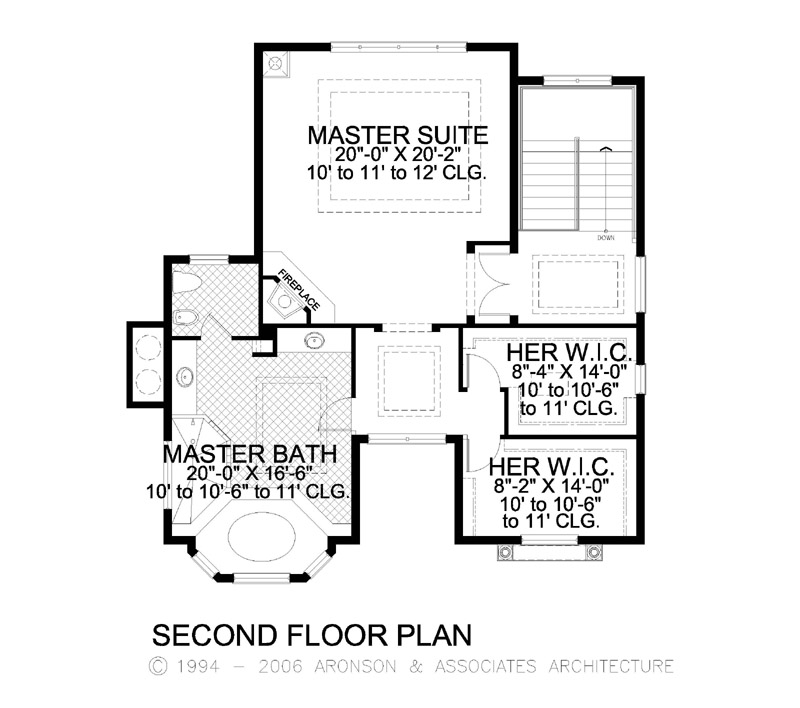

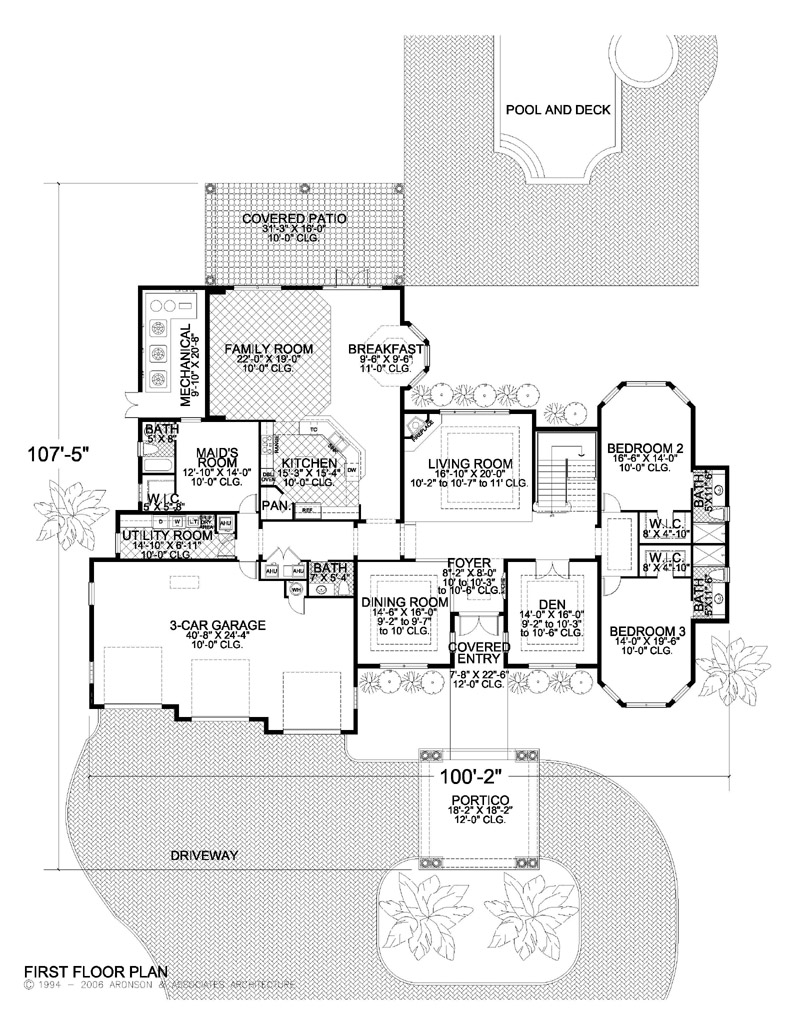

This two-story 5,135 sq. ft., Mediterranean-style home floor plan features four bedrooms, a maid’s room, four and one-half bathrooms and a three-car garage. Artistic architectural elements provide outstanding curb appeal. Exclusive Porte Cochere with covered entrance leads to a formal foyer flanked by a dining room and cozy den with tray ceilings. This home plan is luxurious with all features both inside and out, including the covered lanai. This home is unique with the second story dominated by an elaborate master suite, complete with romantic fireplace and large walk-in closets. The huge island kitchen has an eating bar, breakfast nook and bow window – opens to the family room. The family room opens onto the covered Lanai. The large living room features tray ceilings and a fireplace. Get this luxurious home floor plan today.
Dimensions
-
Width x Length
100' 2" x 107' 5"
-
Height
29'-6
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
4
-
Half
0
-
Total
5
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
2
Features
-
Fireplace
Yes
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1700
CAD Disk Price: $2600
Reverse PDF Price: $1950
Reverse CAD Price: $2850
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1200
3 Sets Price: $1300
5 Sets Price: $1400
8 Sets Price: $1550
Reproducible Vellum Price: $1700
Base – Not for Construction Price: $1200
3 Sets (Reverse) Price: $1550
5 Sets (Reverse) Price: $1650
8 Sets (Reverse) Price: $1800
Reproducible Vellum (Reverse) Price: $1950
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Concrete
-
Spacing
0
-
Subfloor
Concrete
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
10'-2
-
Secondary Living
9'-2
-
Primary Bedrooms
0
-
Secondary Bedrooms
10'-0
-
Bathrooms
10'-0
-
Common Areas
10'-0
Second Floor
-
Primary Bedrooms
10'-0
-
Secondary Bedrooms
0
-
Bathrooms
10'-0
-
Common Areas
0
Exterior
-
Garage
10'
-
Covered Entry
12'
-
Covered Patio
10'
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
3869
-
Second Floor AC
1266
-
Total AC
5135
Total Under Roof Sq Ft
-
Garage
983
-
Covered Entry
180
-
Covered Patio
500
-
Covered Balconies
0
-
Total Under Roof
6798
