HOUSE PLAN MODEL 6095-0602 | Mediterranean-Style Home Floor Plan
Browsing: By One Story
PLAN SUMMARY
-
Stories
1
-
Bedrooms
5
-
Bathrooms
5
-
Garage
3 car
-
Width x Length:
86' 8" x 147' 6"
-
First Floor Sq Ft
6,095 Sq. Ft.
-
Total AC Sq Ft
6,095 Sq. Ft.
-
Total Under Roof Sq Ft
8,010 Sq. Ft.
$0.00
Plan Description

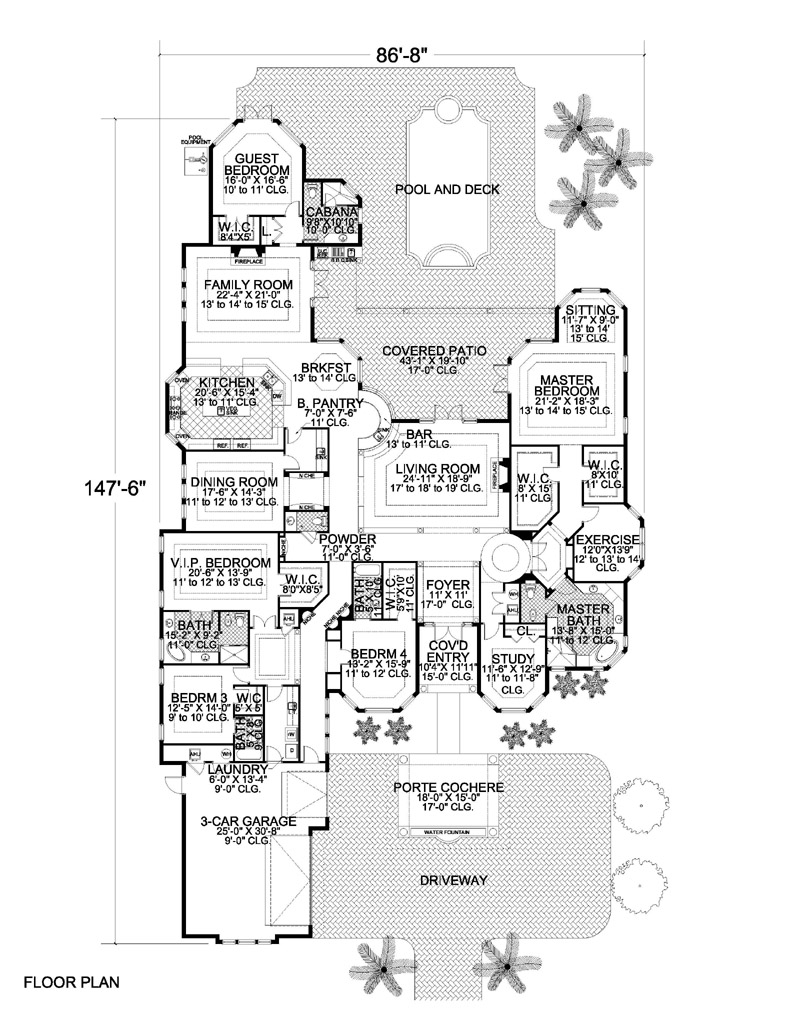

Exquisite, one-story, 6,095 sq. ft., Mediterranean-style home floor plan features five bedrooms, four and one-half bathrooms, a cabana bathroom and three-car garage. This unique design has a large, covered patio. The Contemporary open layout of this home design provides spacious appeal. A large island in the kitchen features an eating bar, breakfast area, a butler’s pantry and opens to the family room. The family room is cozy with its fireplace and makes a perfect retreat to relax and find quiet solitude. A fabulous guest suite has a private entrance. This home features a truly luxurious master bedroom suite with large walk-in closets, stylish tray ceiling design and a sitting area that opens to a covered patio. The ultimate master suite has it’s own exercise room. You’ll love this design if you seek a home with a spacious feel and many private places. Get this exquisite home floor plan today.
Dimensions
-
Width x Length
86' 8" x 147' 6"
-
Height
28'-10
-
Stories
1/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
1
-
Total
5
Bathrooms
-
Full
5
-
Half
1
-
Total
5

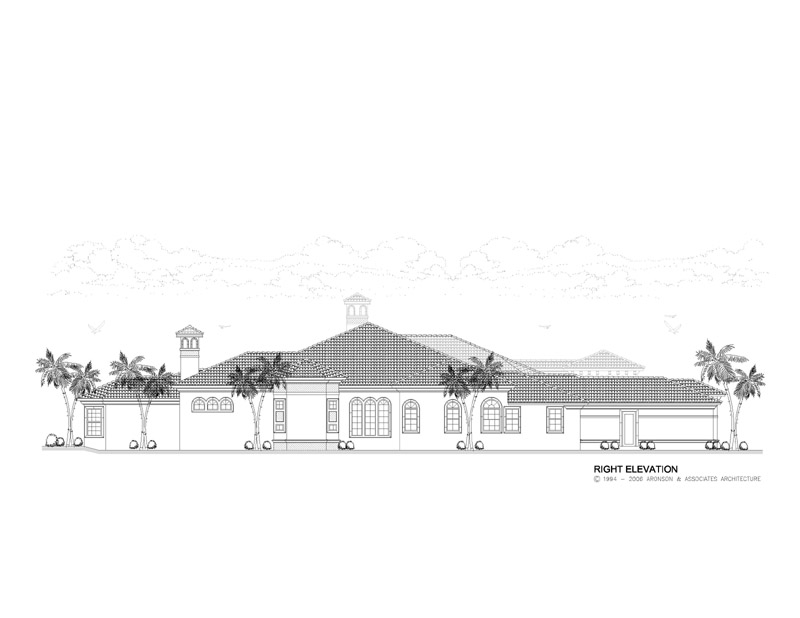

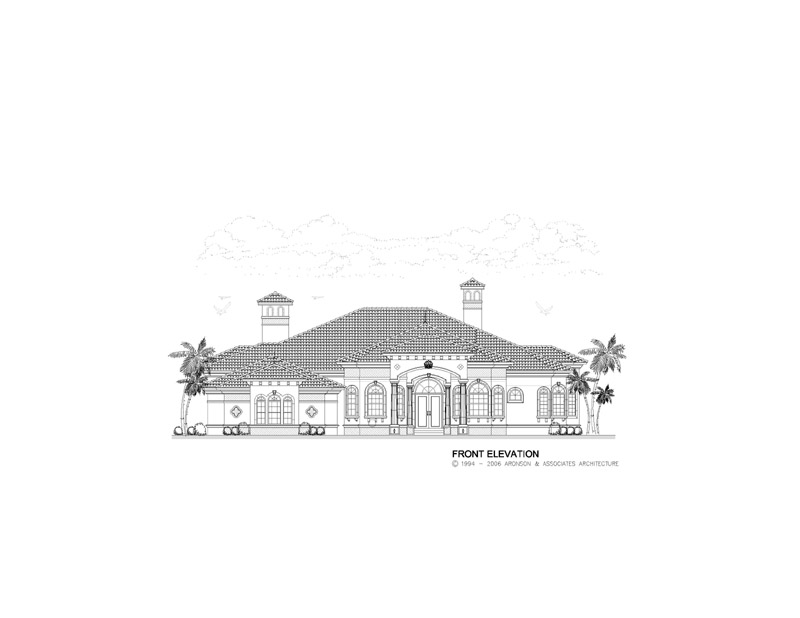

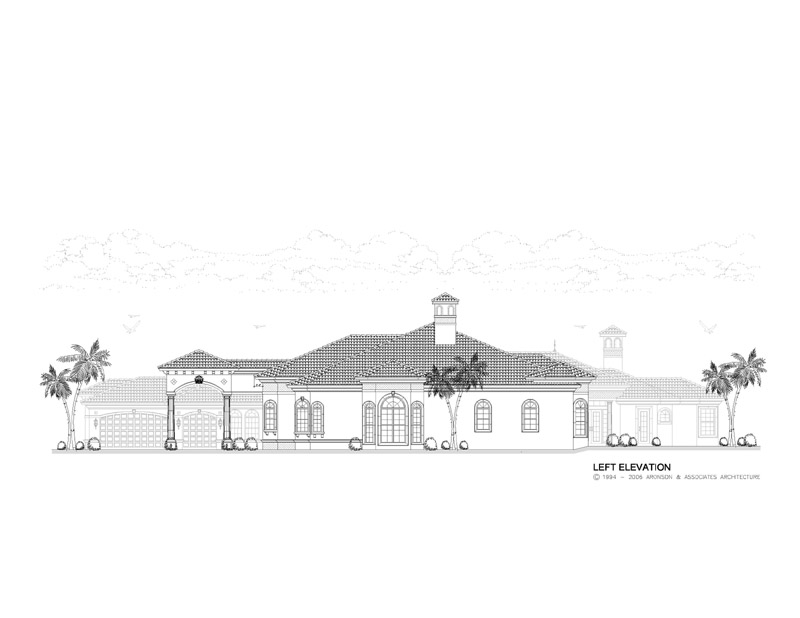

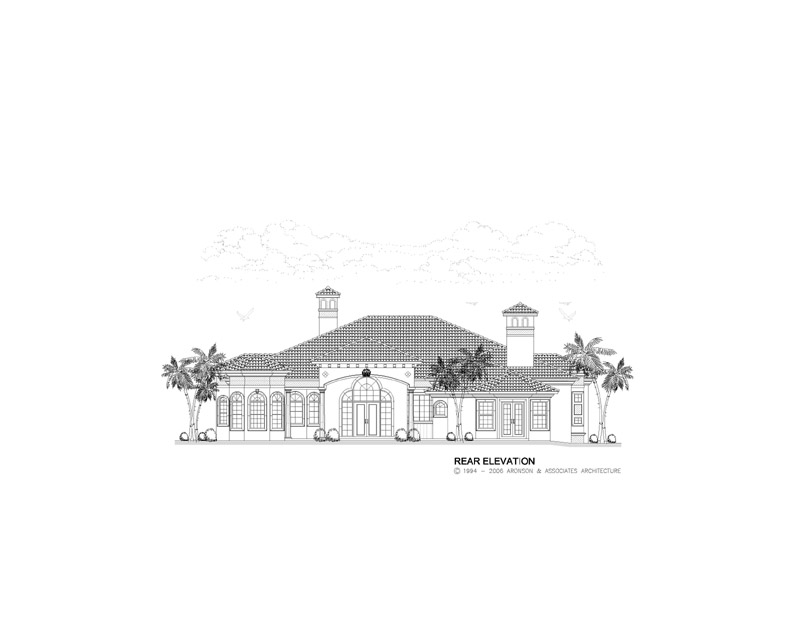

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
Yes
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1900
CAD Disk Price: $2900
Reverse PDF Price: $2150
Reverse CAD Price: $3150
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1400
3 Sets Price: $1500
5 Sets Price: $1600
8 Sets Price: $1750
Reproducible Vellum Price: $1900
Base – Not for Construction Price: $1400
3 Sets (Reverse) Price: $1750
5 Sets (Reverse) Price: $1850
8 Sets (Reverse) Price: $2000
Reproducible Vellum (Reverse) Price: $2150
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
17' to 19'
-
Secondary Living
11' to 13'
-
Primary Bedrooms
13' to 15'
-
Secondary Bedrooms
11' to 12'
-
Bathrooms
11'
-
Common Areas
11' to 12'
Exterior
-
Garage
9'
-
Covered Entry
15'
-
Covered Patio
17'
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
6095
-
Total AC
6095
Total Under Roof Sq Ft
-
Garage
807
-
Covered Entry
436
-
Covered Patio
672
-
Covered Balconies
0
-
Total Under Roof
8010
