PLAN SUMMARY
-
Stories
2/3
-
Bedrooms
6
-
Bathrooms
7
-
Garage
4 car
-
Width x Length:
78' " x 118' "
-
First Floor Sq Ft
4,740 Sq. Ft.
-
Second Floor Sq Ft
3,989 Sq. Ft.
-
Total AC Sq Ft
8,729 Sq. Ft.
-
Total Under Roof Sq Ft
13,476 Sq. Ft.
$0.00
Plan Description

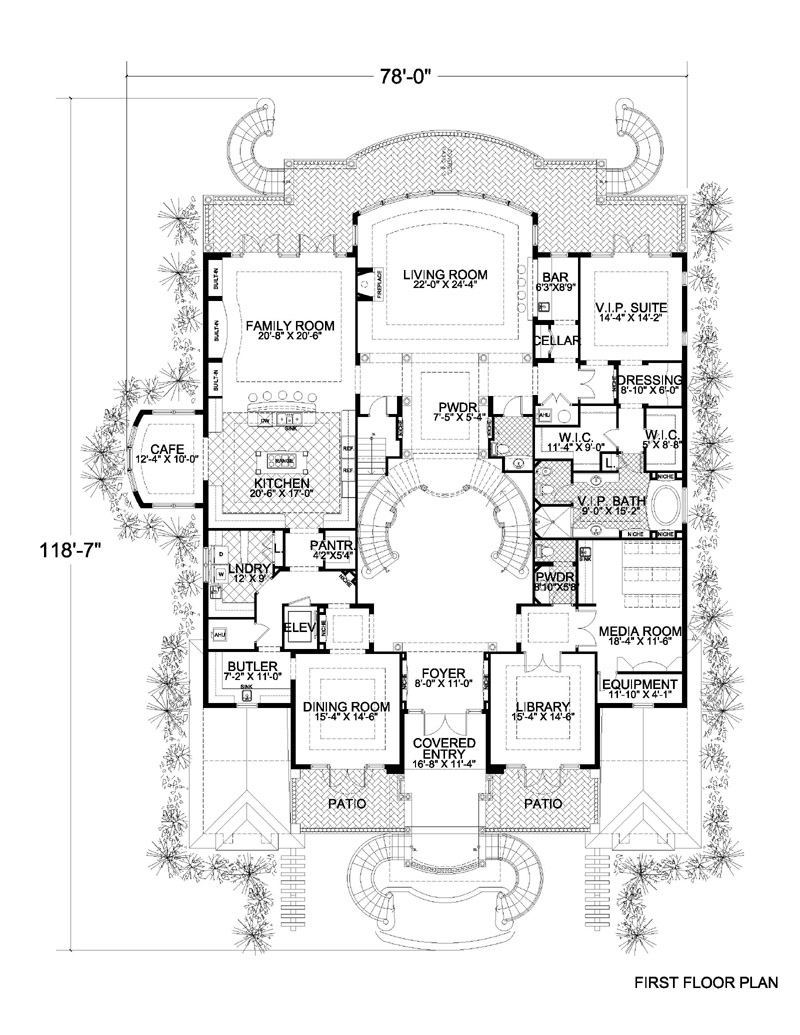

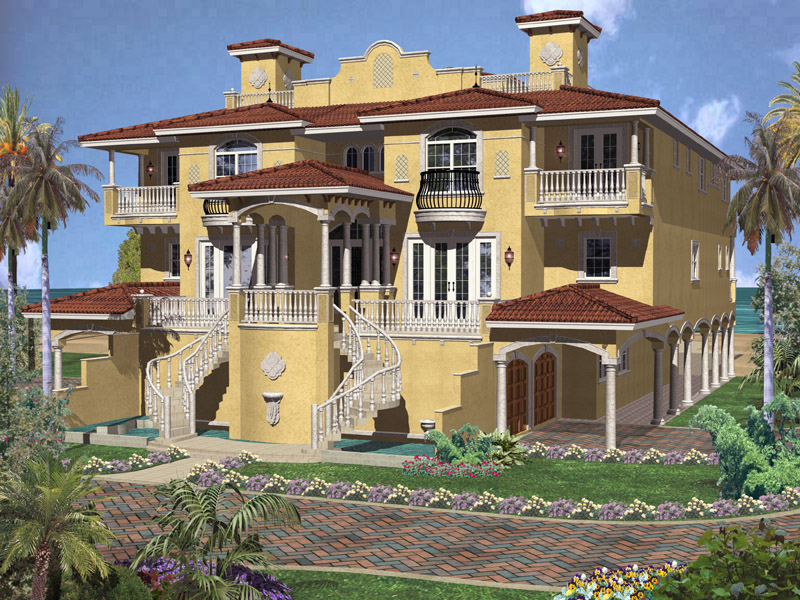

This majestic, opulent, “pure magic”, luxurious, 8728 sq. ft. Spanish Mediterranean-style waterfront home features three-stories, six bedrooms, six and a half bathrooms, a cabana, a four-car garage makes this a simply magnificent place to call “home.” It is truly a castle “fit for a king.” The formal entrance shows library and dinning room on both sides which make a dramatic first impression along with the marble tile and columns. The entrance leads into a large, open living room with a stately fireplace and twenty-foot high ceiling. The regal master suite features twin French doors that open to a private, covered balcony. The European-style, compartmentalized bath boasts a walk-through shower and spa tub with separate “His and Hers” vanity, lavatories and walk-in closets. A private sitting room welcomes you at the end of a busy day off the master suite. The morning kitchen welcomes you at the start or end of the day for convenience. Guests will feel like royalty in a luxurious guest suite that flaunts a fabulous bayed sitting area, spectacular spa bath, and French doors leading to a private, covered patio. The media room serves as multipurpose, and makes a perfect place for casual entertaining or just a retreat to relax, and offers an adjacent morning kitchen. The enormous kitchen with over sized island is a gourmet’s “dream come true” featuring coffered ceilings, dual dishwashers, plenty of cabinet space and opens into a cozy family room and sunny breakfast nook. This design also features the convenience of an elevator and every other amenity you can imagine including a wine cellar and library. The palladium glass of the rear elevation immersing the living room in natural light is one of many star attractions of this exquisite design. This home deserves a large lot with a great view. Get this home floor plan today.
Dimensions
-
Width x Length
78' " x 118' "
-
Height
44'-7
-
Stories
2/3/
Garage
-
Number of Cars
4
-
Attached
No
-
Location
Left Side and right
Wall Construction
-
Interior
Wood Frame
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
6
-
Possible
0
-
Total
6
Bathrooms
-
Full
7
-
Half
1
-
Total
7
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
2
Features
-
Fireplace
Yes
-
Elevator
Yes
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $2400
CAD Disk Price: $3600
Reverse PDF Price: $2650
Reverse CAD Price: $3850
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1900
3 Sets Price: $2000
5 Sets Price: $2100
8 Sets Price: $2250
Reproducible Vellum Price: $2400
Base – Not for Construction Price: $1900
3 Sets (Reverse) Price: $2250
5 Sets (Reverse) Price: $2350
8 Sets (Reverse) Price: $2500
Reproducible Vellum (Reverse) Price: $2650
Foundation Type
-
Type
Grade Beams/Piling
-
Option
0
Floor System
-
Type
Concrete
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood Trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140
First Floor
-
Primary Living
12'-0
-
Secondary Living
12'-0
-
Primary Bedrooms
0
-
Secondary Bedrooms
0
-
Bathrooms
12'-0
-
Common Areas
12'-0

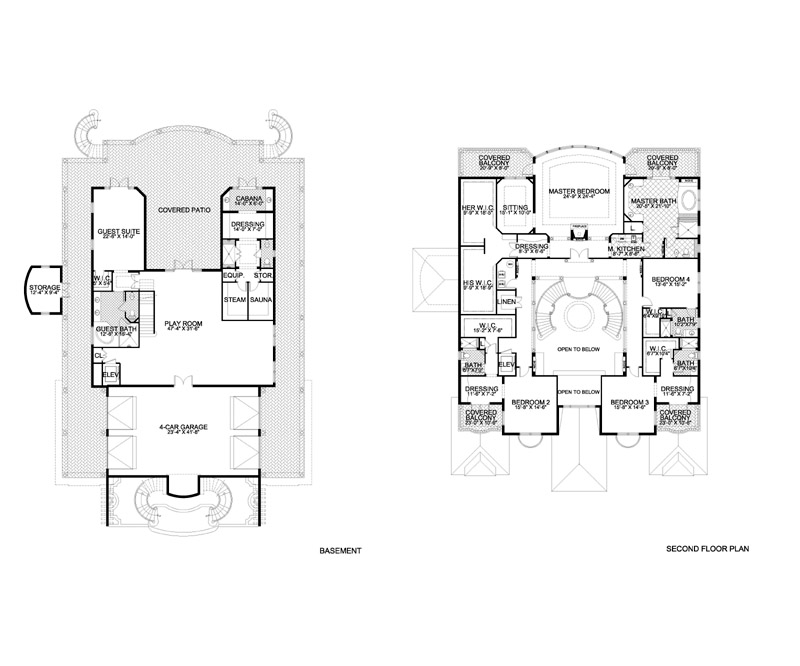

Second Floor
-
Primary Bedrooms
9'-0
-
Secondary Bedrooms
9'-0
-
Bathrooms
9'-0
-
Common Areas
0
Exterior
-
Garage
13'-0
-
Covered Entry
13'-0
-
Covered Patio
12'-6
-
Covered Balcony
9'-6
Total AC Sq Ft
-
First Floor AC
4740
-
Second Floor AC
3989
-
Total AC
8729
Total Under Roof Sq Ft
-
Garage
1298
-
Covered Entry
195
-
Covered Patio
640
-
Covered Balconies
184
-
Total Under Roof
13476
