PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
1 car
-
Width x Length:
39' 2" x 46' "
-
First Floor Sq Ft
1,453 Sq. Ft.
-
Total AC Sq Ft
1,453 Sq. Ft.
-
Total Under Roof Sq Ft
1,715 Sq. Ft.
-
$0.00
Plan Description

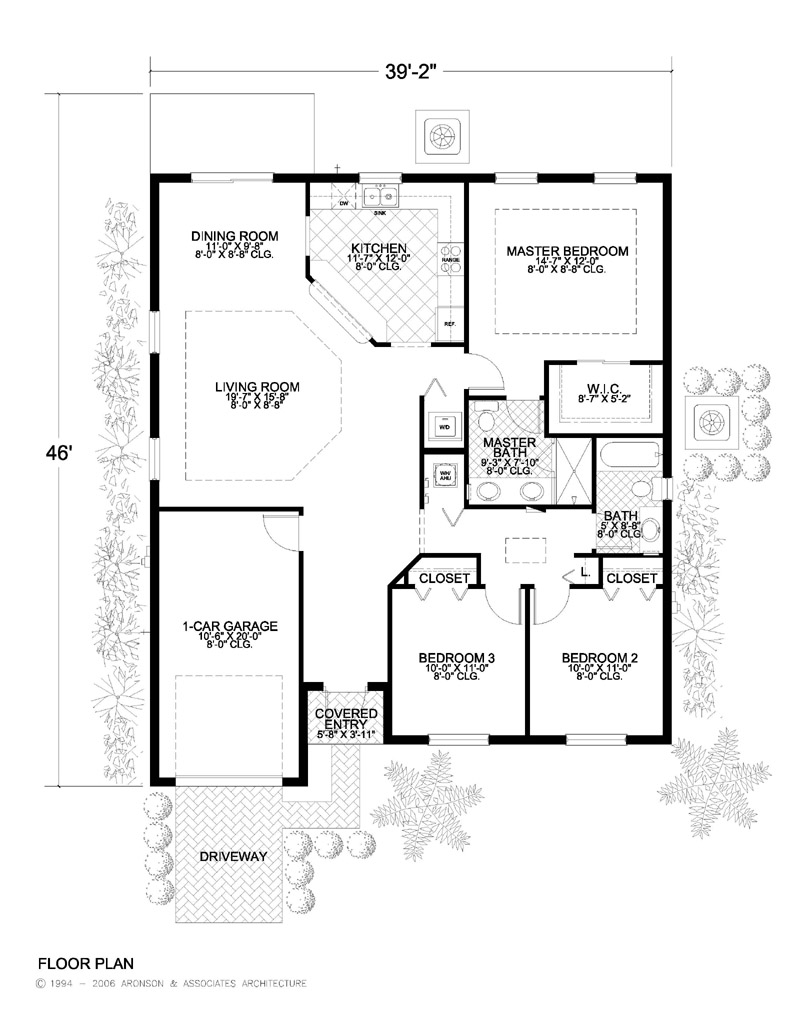

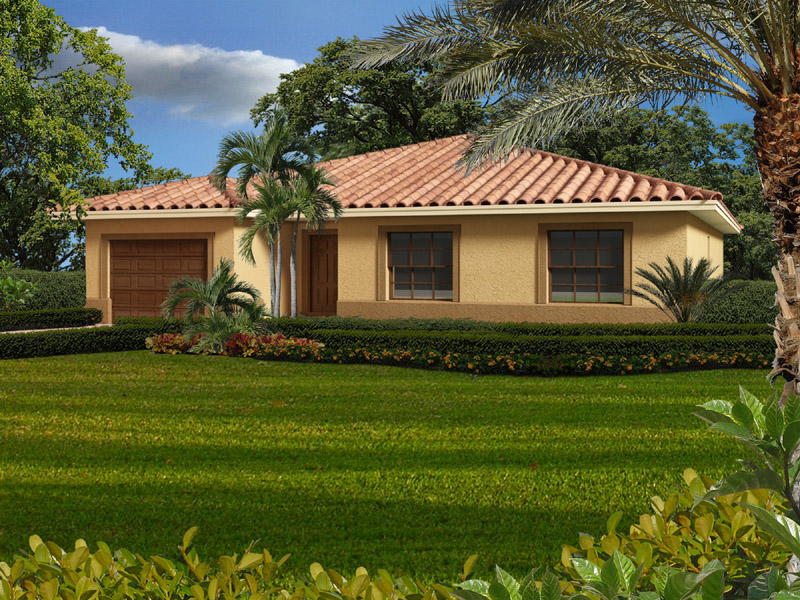

This luxurious 1,453 sq. ft., one-story home floor plan has three bedrooms, one-car garage, two bathrooms, covered entry and a rear covered patio. The large living room combined with the spacious kitchen creates an open atmosphere. There is an impressive master suite with master bathroom and a spacious walk-in closet. This is a perfectly-sized home for a family who truly enjoys entertaining. Purchase this luxurious home floor plan now.
Dimensions
-
Width x Length
39' 2" x 46' "
-
Height
17'-4
-
Stories
1/
Garage
-
Number of Cars
1
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
2
-
Half
0
-
Total
2

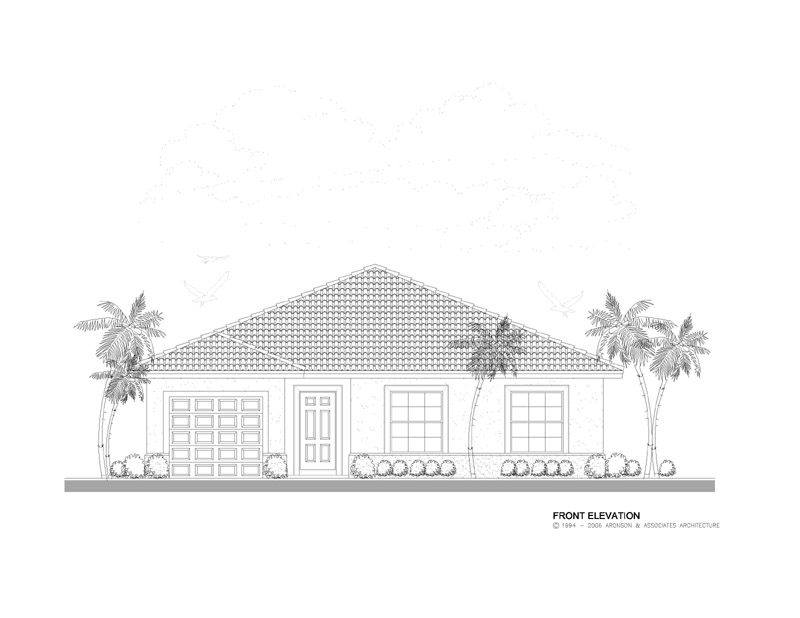

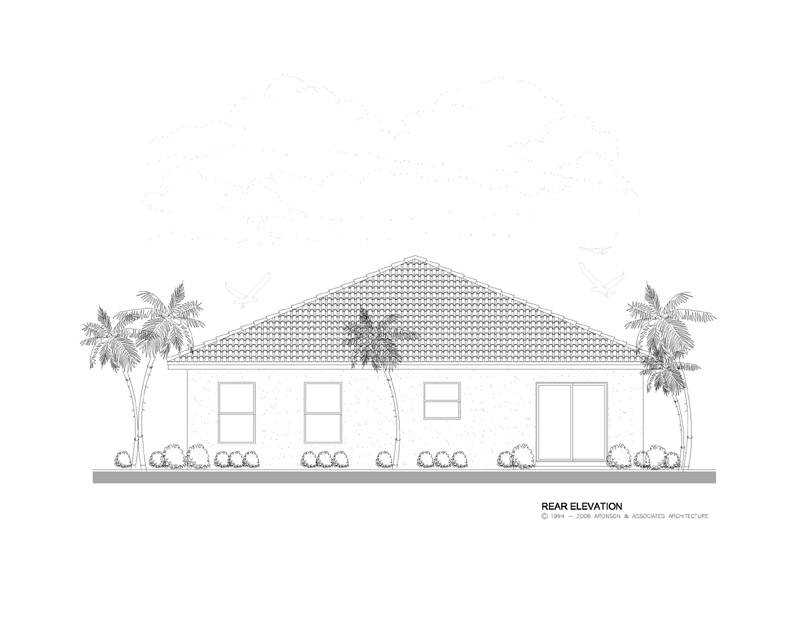

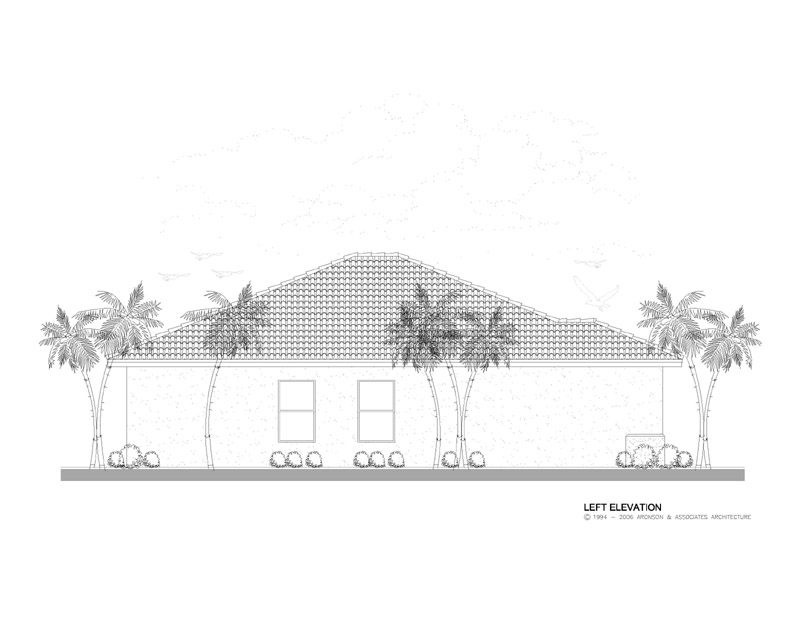

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1100
CAD Disk Price: $1600
Reverse PDF Price: $1350
Reverse CAD Price: $1850
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $600
3 Sets Price: $700
5 Sets Price: $800
8 Sets Price: $950
Reproducible Vellum Price: $1100
Base – Not for Construction Price: $600
3 Sets (Reverse) Price: $950
5 Sets (Reverse) Price: $1050
8 Sets (Reverse) Price: $1200
Reproducible Vellum (Reverse) Price: $1350
Foundation Type
-
Type
Concrete
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
8' to 8'-8
-
Secondary Living
-
Primary Bedrooms
8' to 8'-8
-
Secondary Bedrooms
8'-0
-
Bathrooms
8'-0
-
Common Areas
8'-0
Exterior
-
Garage
8'-0
-
Covered Entry
8'-0
-
Covered Patio
8'-0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1453
-
Total AC
1453
Total Under Roof Sq Ft
-
Garage
239
-
Covered Entry
23
-
Covered Patio
0
-
Covered Balconies
0
-
Total Under Roof
1715
