PLAN SUMMARY
-
Stories
1
-
Bedrooms
2
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
60' " x 68' 4"
-
First Floor Sq Ft
2,191 Sq. Ft.
-
Total AC Sq Ft
2,291 Sq. Ft.
-
Total Under Roof Sq Ft
3,166 Sq. Ft.
-
$0.00
Plan Description

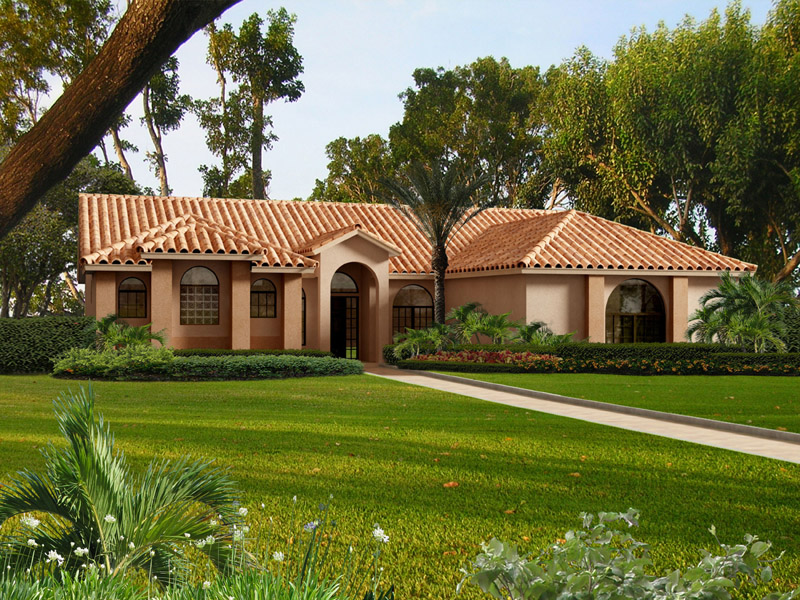

This luxurious 2,291 sq. ft., one-story Florida-style Mediterranean house floor plan has two bedrooms, two bathrooms and a two-car garage. The large master suite includes master bath and walk-in closet. The design places the master bedroom with privacy in mind. Two sets of double doors open to a patio. A spacious combination open family room and living room lead to the back yard. Get this luxurious house plan today.
Dimensions
-
Width x Length
60' " x 68' 4"
-
Height
17'-3
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
2
-
Possible
0
-
Total
2
Bathrooms
-
Full
2
-
Half
0
-
Total
2

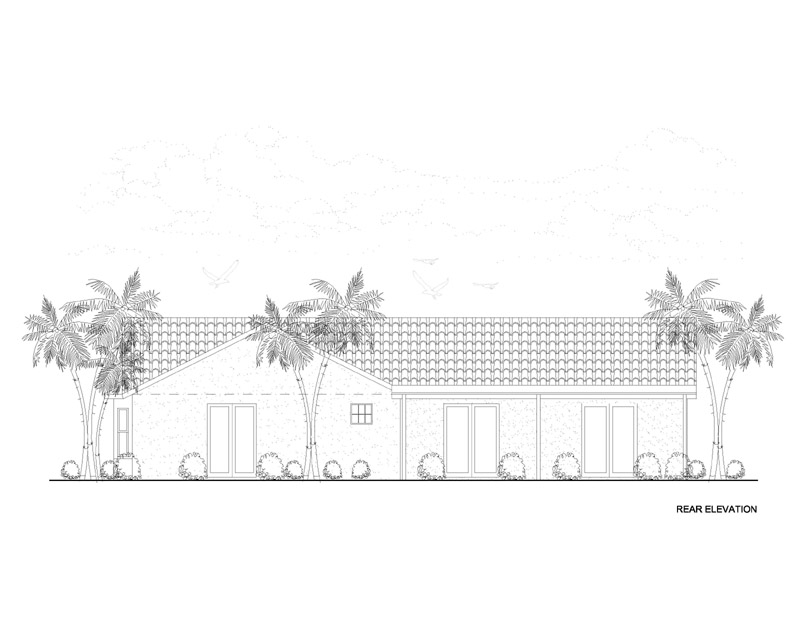

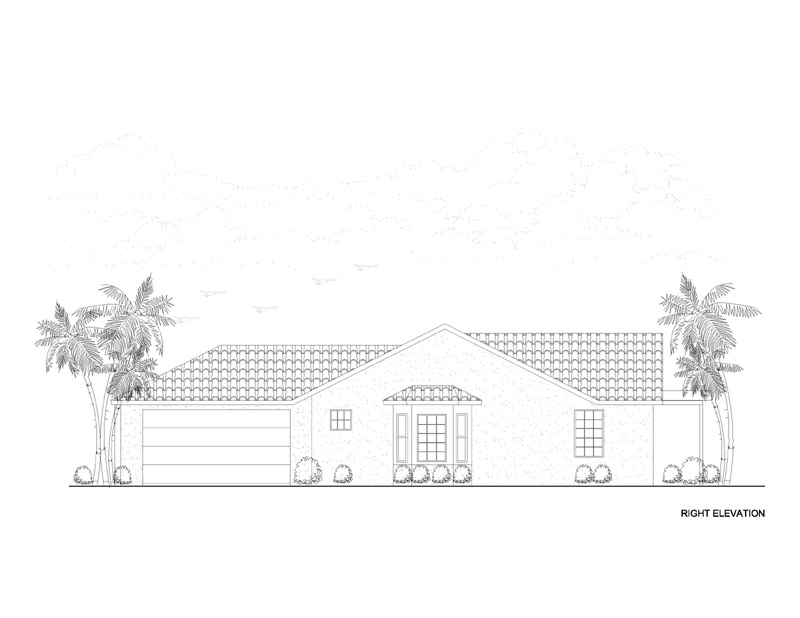

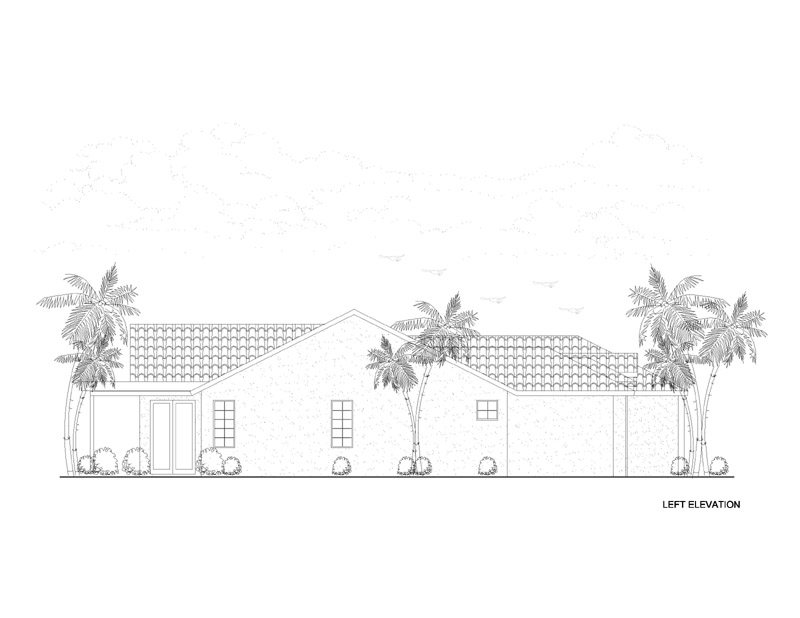

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1200
CAD Disk Price: $1800
Reverse PDF Price: $1450
Reverse CAD Price: $2050
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $700
3 Sets Price: $800
5 Sets Price: $900
8 Sets Price: $1050
Reproducible Vellum Price: $1200
Base – Not for Construction Price: $700
3 Sets (Reverse) Price: $1050
5 Sets (Reverse) Price: $1150
8 Sets (Reverse) Price: $1300
Reproducible Vellum (Reverse) Price: $1450
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140

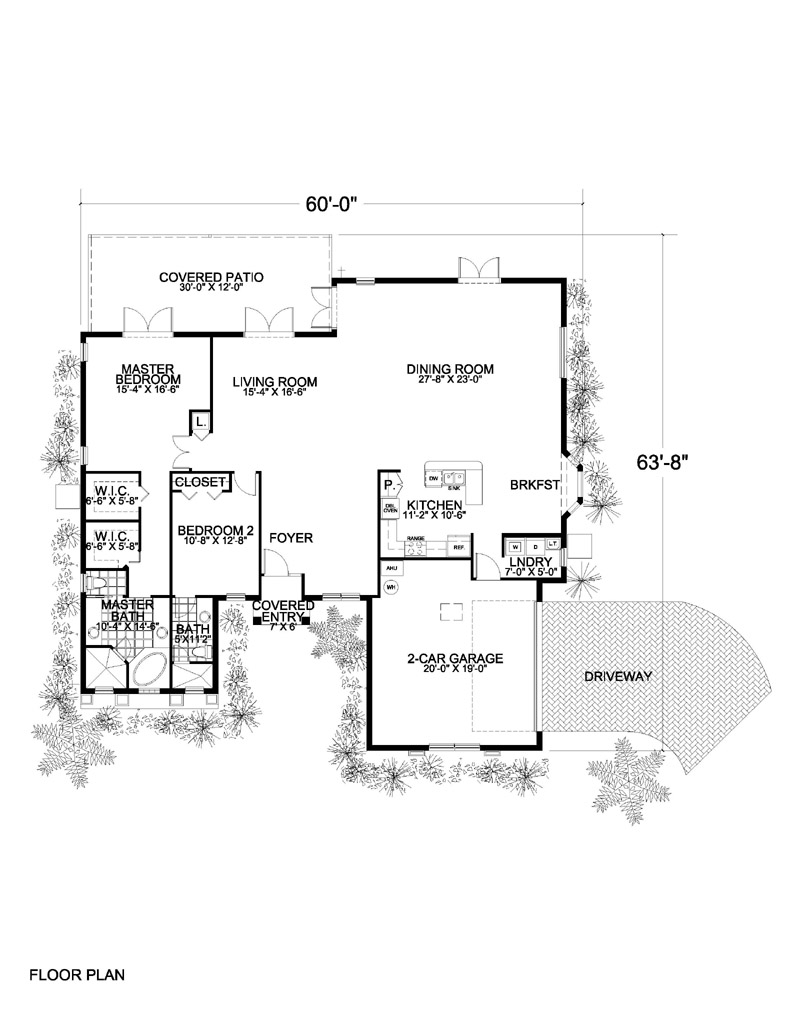

First Floor
-
Primary Living
10'-0
-
Secondary Living
10'-0
-
Primary Bedrooms
10'-0
-
Secondary Bedrooms
10'-0
-
Bathrooms
10'-0
-
Common Areas
10'-0
Exterior
-
Garage
9'-0
-
Covered Entry
11'-0
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2191
-
Total AC
2291
Total Under Roof Sq Ft
-
Garage
479
-
Covered Entry
36
-
Covered Patio
360
-
Covered Balconies
0
-
Total Under Roof
3166
