PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length:
48' " x 79' 10"
-

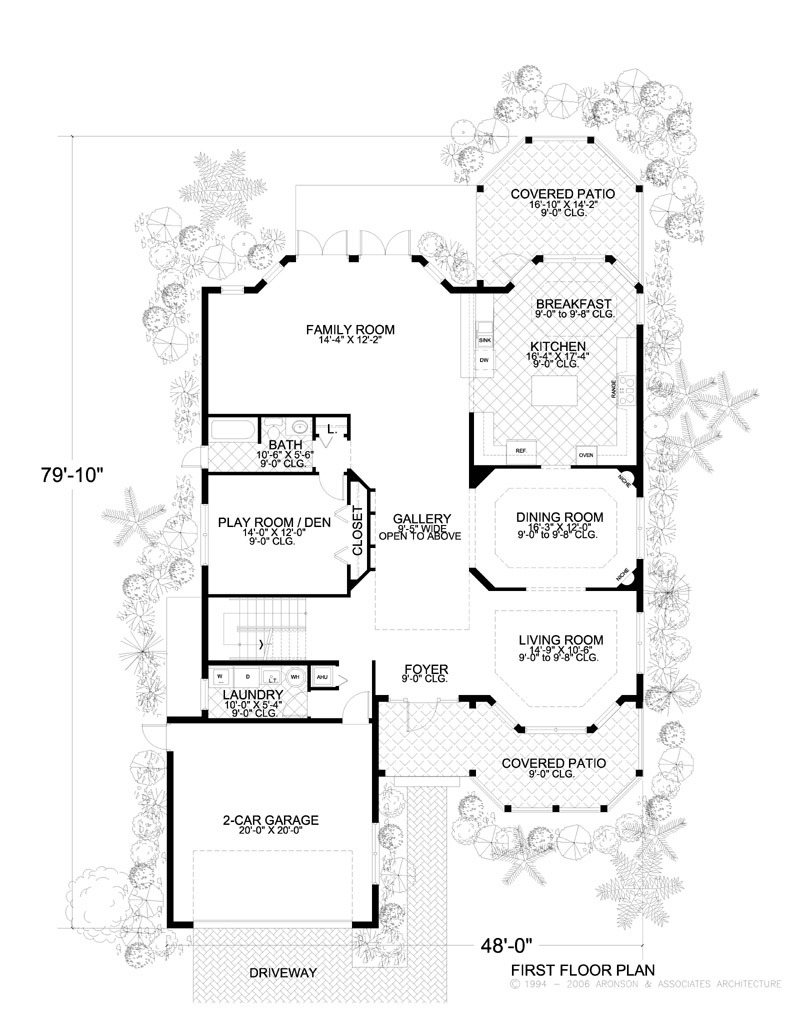

First Floor Sq Ft
2,020 Sq. Ft.
-

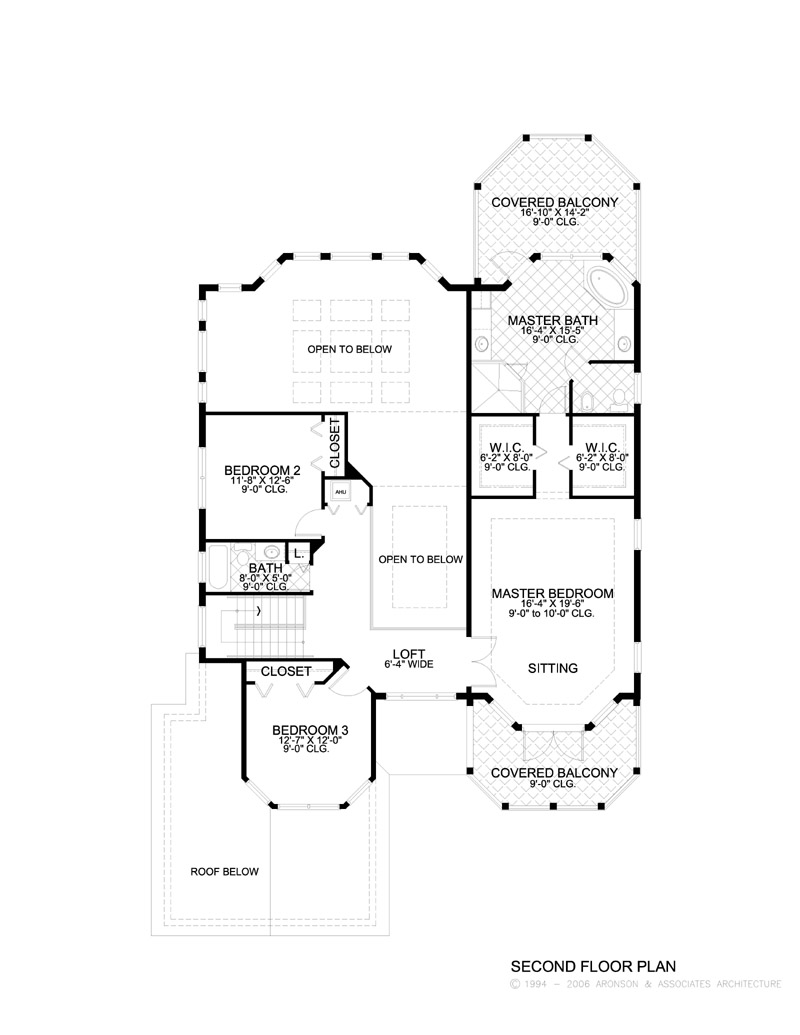

Second Floor Sq Ft
1,303 Sq. Ft.
-
Total AC Sq Ft
3,323 Sq. Ft.
-
Total Under Roof Sq Ft
4,527 Sq. Ft.
$0.00
Plan Description
This beautiful, 3,323 sq. ft., two-story, Key West Style house plan features four bedrooms, two bathrooms plus a cabana, a two-car garage, covered balconies and patios. This design includes an exclusive master suite with large walk-in closets, morning kitchen, tray ceilings and a regal master bathroom next to a private balcony. There is an opulent two-story high central gallery, huge island kitchen with an eating bar and cafe. The family room is of a spectacular design featuring raised ceilings which add to the luxury of this design. Pick up this beautiful house floor plan today.
Dimensions
-
Width x Length
48' " x 79' 10"
-
Height
33'-8
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
1
-
Total
4
Bathrooms
-
Full
2
-
Half
0
-
Total
3

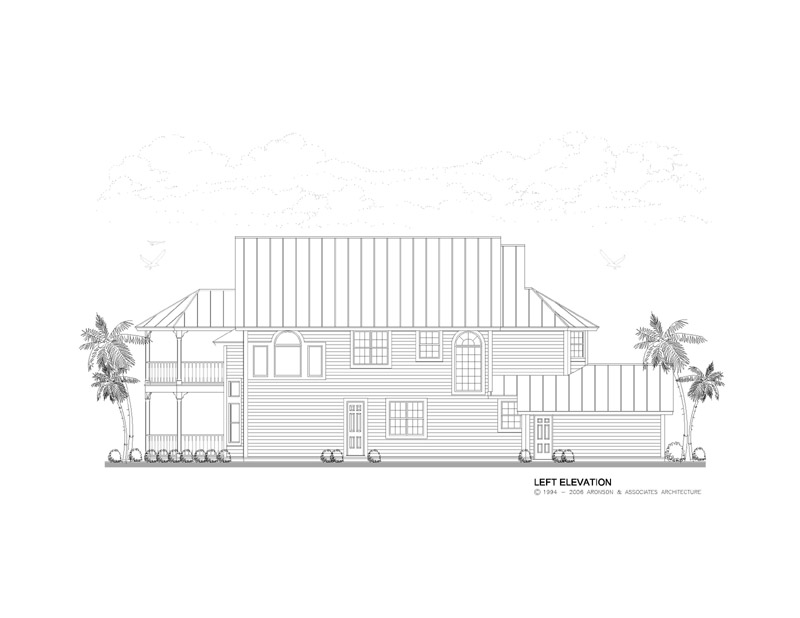

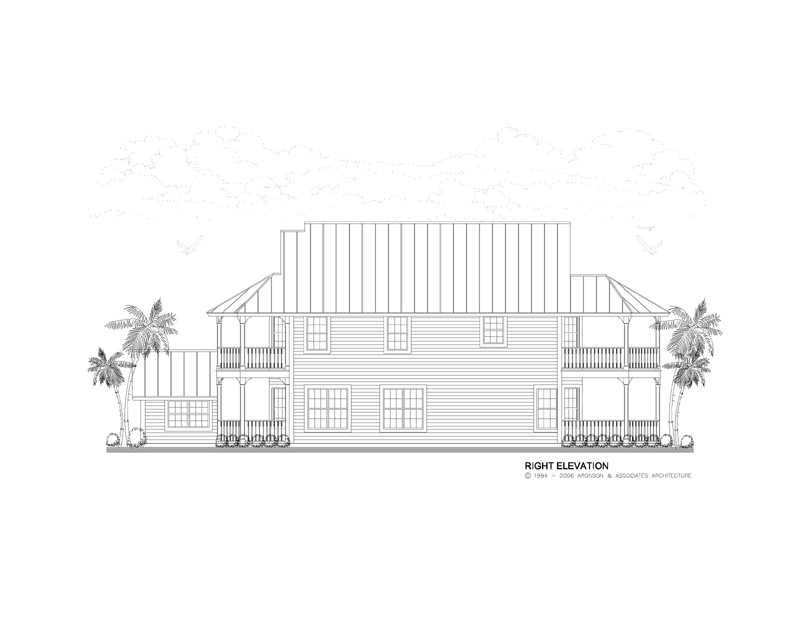

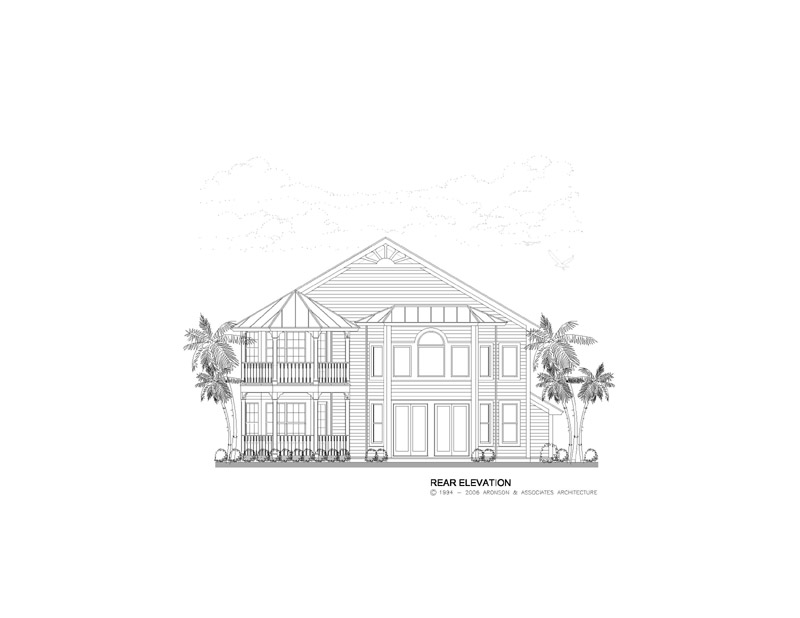

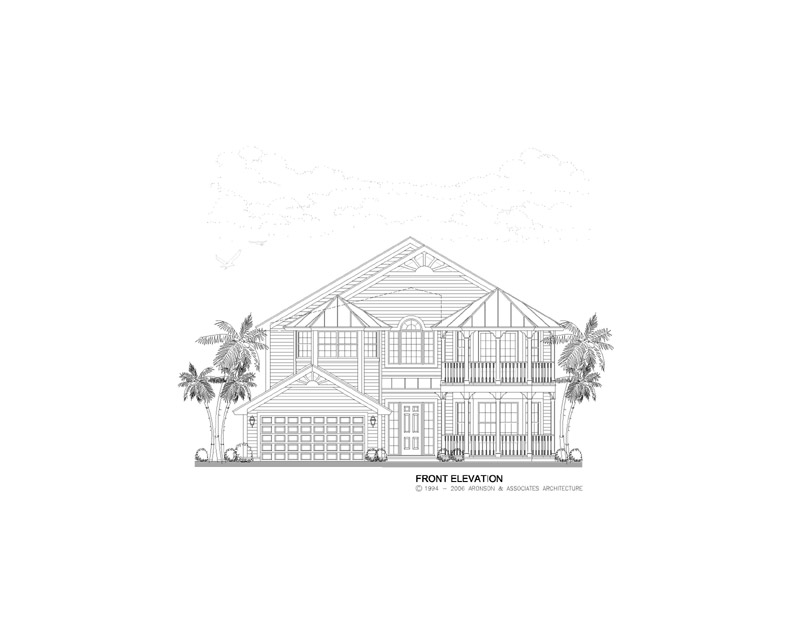

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
2
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1350
CAD Disk Price: $2050
Reverse PDF Price: $1600
Reverse CAD Price: $2300
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $850
3 Sets Price: $950
5 Sets Price: $1050
8 Sets Price: $1200
Reproducible Vellum Price: $1350
Base – Not for Construction Price: $850
3 Sets (Reverse) Price: $1150
5 Sets (Reverse) Price: $1300
8 Sets (Reverse) Price: $1450
Reproducible Vellum (Reverse) Price: $1600
Foundation Type
-
Type
Piling
-
Option
0
Floor System
-
Type
Wood Truss
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140
First Floor
-
Primary Living
9'-0
-
Secondary Living
9'-0
-
Primary Bedrooms
0
-
Secondary Bedrooms
0
-
Bathrooms
9'-0
-
Common Areas
9'-0
Second Floor
-
Primary Bedrooms
9'-0
-
Secondary Bedrooms
9'-0
-
Bathrooms
9'-0
-
Common Areas
9'-0
Exterior
-
Garage
7'-5
-
Covered Entry
9'-0
-
Covered Patio
9'-0
-
Covered Balcony
9'-0
Total AC Sq Ft
-
First Floor AC
2020
-
Second Floor AC
1303
-
Total AC
3323
Total Under Roof Sq Ft
-
Garage
443
-
Covered Entry
69
-
Covered Patio
346
-
Covered Balconies
346
-
Total Under Roof
4527
