PLAN SUMMARY
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
3 car
-
Width x Length:
89' 9" x 105' 5"
-
First Floor Sq Ft
3,775 Sq. Ft.
-
Total AC Sq Ft
3,775 Sq. Ft.
-
Total Under Roof Sq Ft
5,385 Sq. Ft.
$0.00
Plan Description

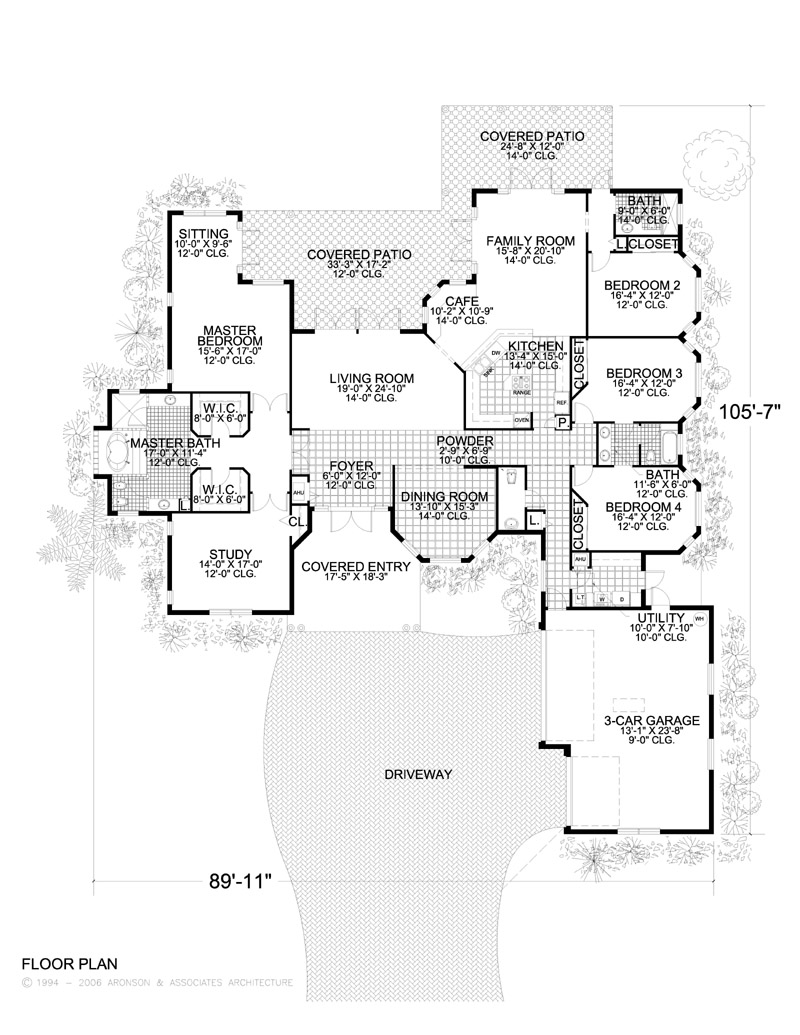

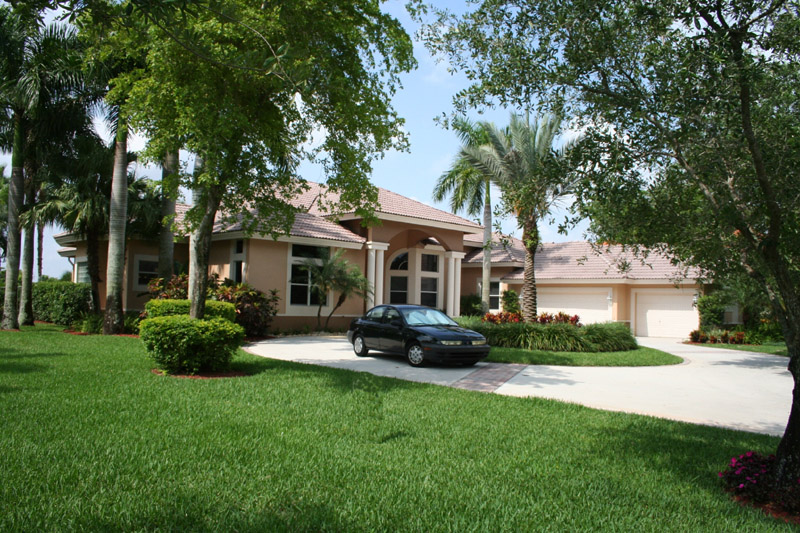

This 3,775 sq. ft., one-story, Florida home floor plan has four bedrooms, three and one-half bathrooms and a three-car garage. This unique design offers a large utility room for additional storage. A Contemporary open layout gives this home a spacious appeal. The large island in the kitchen with an eating bar and breakfast area opens to a family room. This model has a truly luxurious master suite featuring “his and Hers” walk-in closets, a sitting area and luxurious master bathroom accessing to a large covered patio. Buy this home floor plan today
Dimensions
-
Width x Length
89' 9" x 105' 5"
-
Height
22'
-
Stories
1/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
1
-
Total
4
Bathrooms
-
Full
3
-
Half
1
-
Total
3

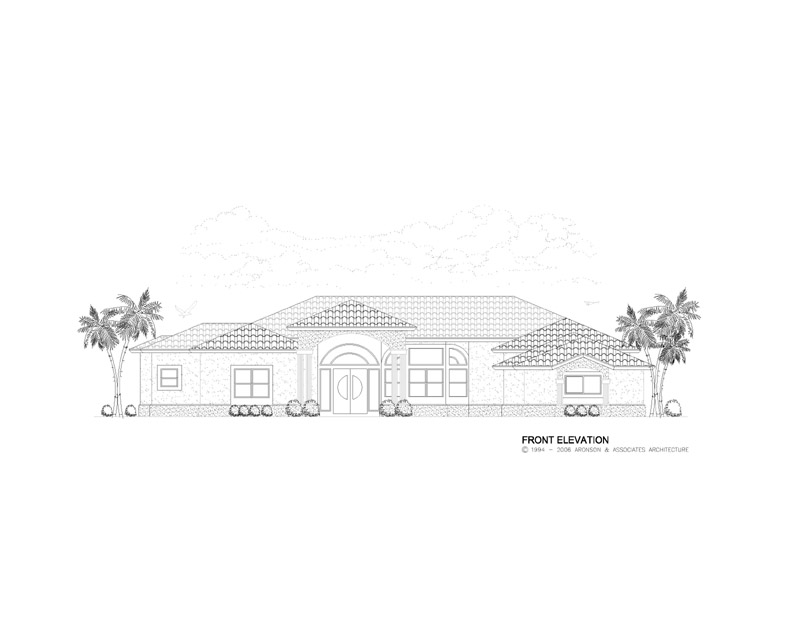

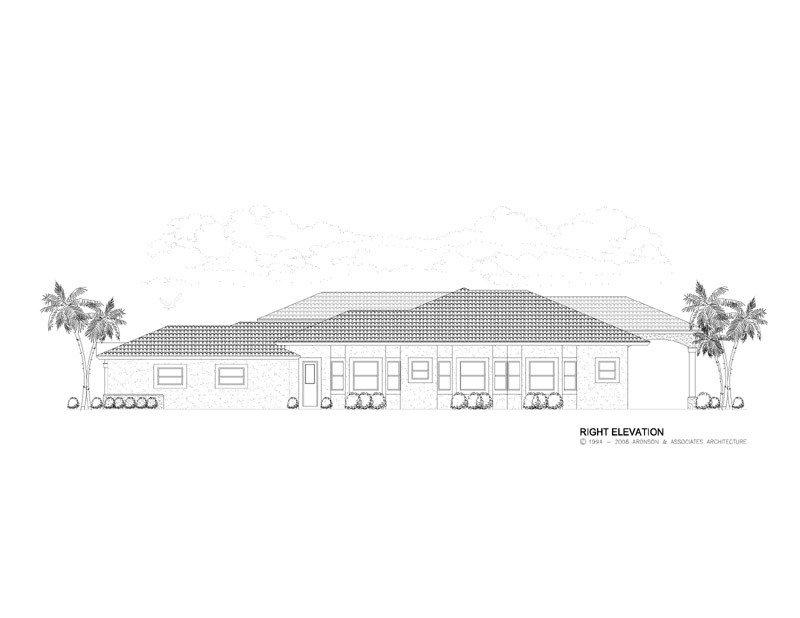

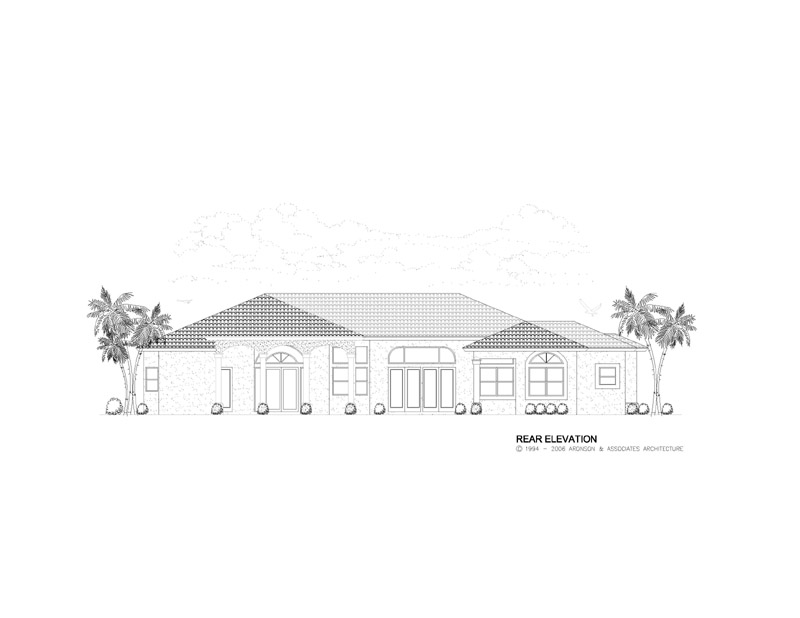

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1400
CAD Disk Price: $2100
Reverse PDF Price: $1650
Reverse CAD Price: $2350
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $900
3 Sets Price: $1000
5 Sets Price: $1100
8 Sets Price: $1250
Reproducible Vellum Price: $1400
Base – Not for Construction Price: $900
3 Sets (Reverse) Price: $1250
5 Sets (Reverse) Price: $1350
8 Sets (Reverse) Price: $1500
Reproducible Vellum (Reverse) Price: $1650
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood Trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
14'
-
Secondary Living
12'
-
Primary Bedrooms
12'
-
Secondary Bedrooms
12'
-
Bathrooms
9'
-
Common Areas
10'
Exterior
-
Garage
9'
-
Covered Entry
16'
-
Covered Patio
14'
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
3775
-
Total AC
3775
Total Under Roof Sq Ft
-
Garage
767
-
Covered Entry
283
-
Covered Patio
560
-
Covered Balconies
0
-
Total Under Roof
5385
