PLAN SUMMARY
-
Stories
2
-
Bedrooms
7
-
Bathrooms
8
-
Garage
3 car
-
Width x Length:
74' 11" x 69' 11"
-
First Floor Sq Ft
3,944 Sq. Ft.
-
Second Floor Sq Ft
3,939 Sq. Ft.
-
Total AC Sq Ft
7,883 Sq. Ft.
-
Total Under Roof Sq Ft
9,283 Sq. Ft.
$0.00
Plan Description

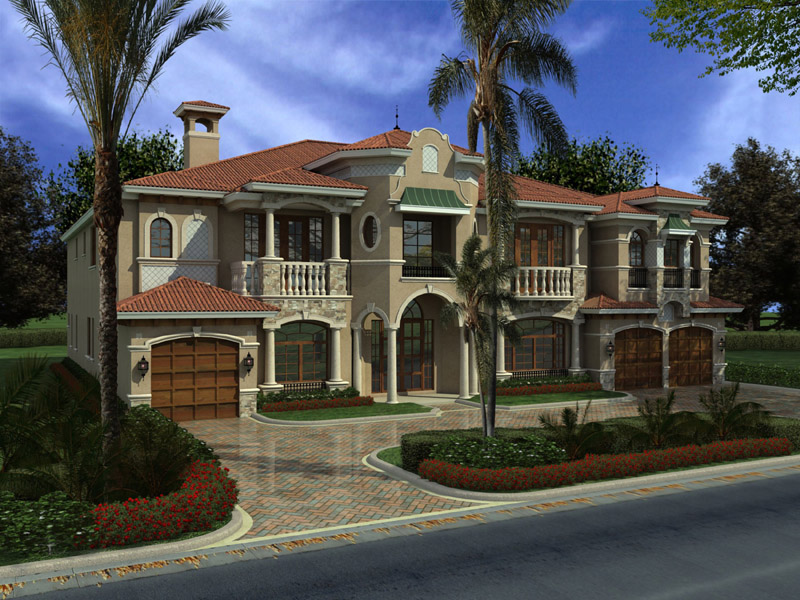

Traditional Mediterranean-style 7883 sq. ft., home floor plan features seven bedrooms, seven bathrooms, two half bathrooms and a cabana bathroom. The luxurious style of this home possesses magnificent columns, arches, balconies and a courtyard with water features. Each suite has the privacy and convenience of its own bathroom. There is a fireplace feature in the library. Entertaining is truly a pleasure in an oversized living room. First impressions are spectacular with the two volume foyer. This floor plan design features a truly exclusive master suite with exceptionally large “His and Hers” walk-in closets, stylish tray ceiling design, a sitting area and luxurious master bath that opens onto a private, covered balcony. A special highlight of this design is the guest suite complete with a private kitchenette. Get this home floor plan today.
Dimensions
-
Width x Length
74' 11" x 69' 11"
-
Height
35'
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
No
-
Location
Right and Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
7
-
Possible
0
-
Total
7
Bathrooms
-
Full
8
-
Half
2
-
Total
8

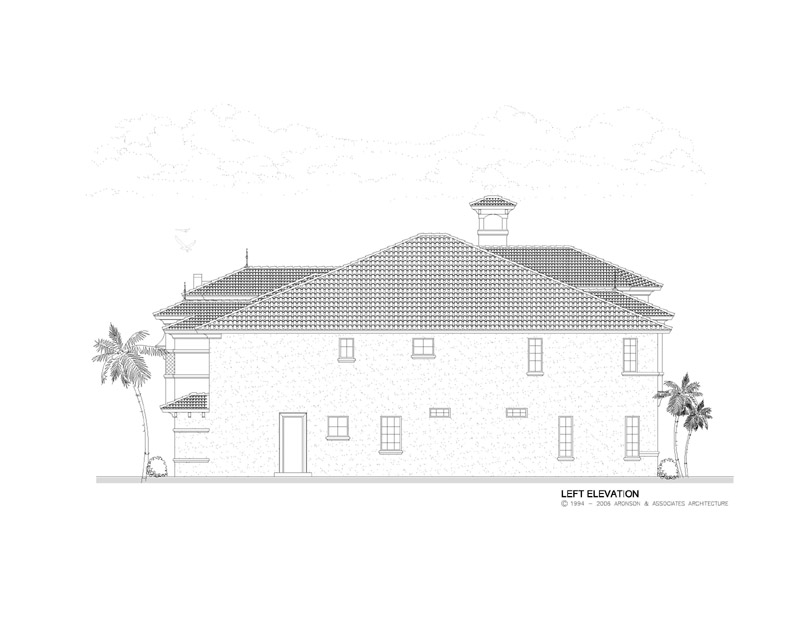

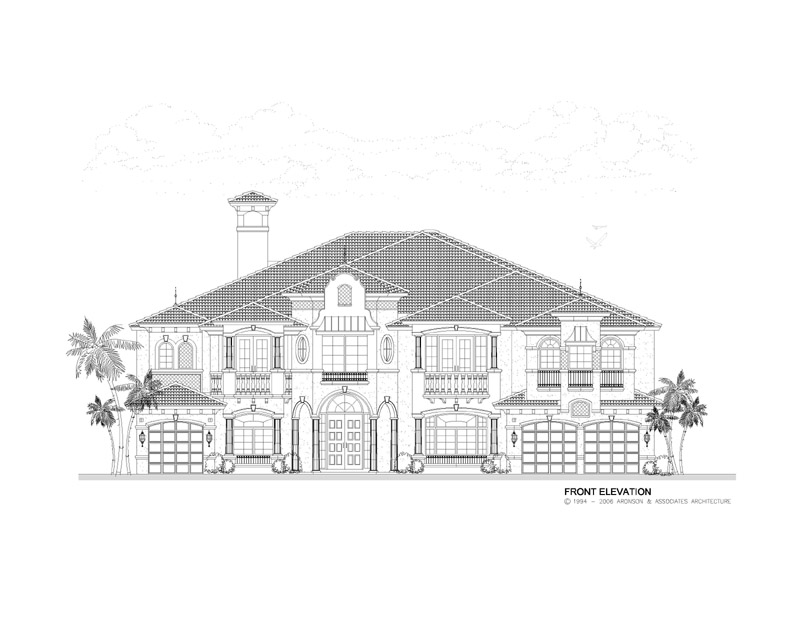

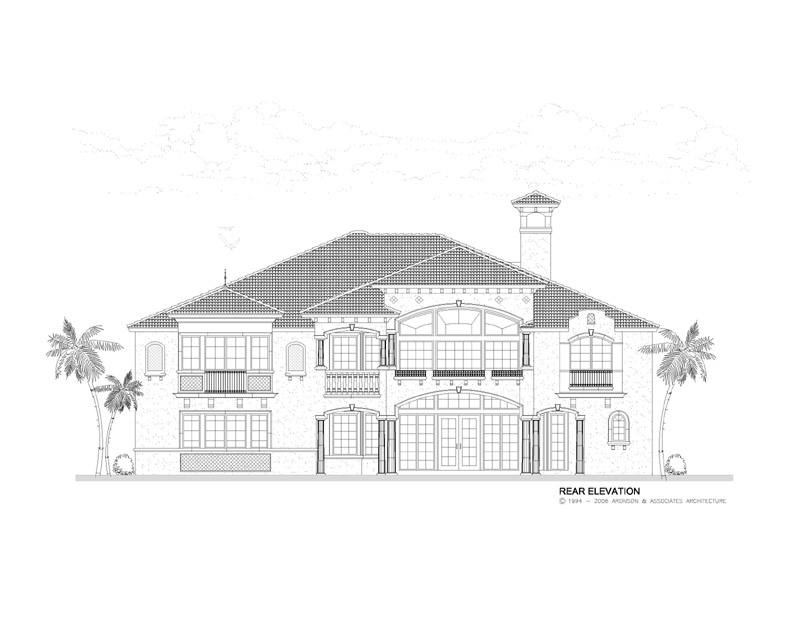

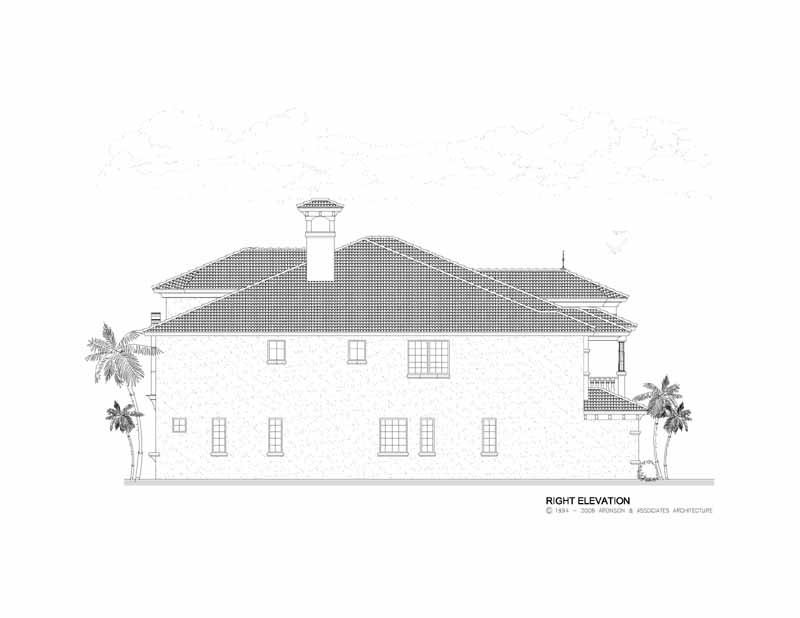

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
2
Features
-
Fireplace
Yes
-
Elevator
Yes
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $2200
CAD Disk Price: $3300
Reverse PDF Price: $2450
Reverse CAD Price: $3550
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1700
3 Sets Price: $1800
5 Sets Price: $1900
8 Sets Price: $2050
Reproducible Vellum Price: $2200
Base – Not for Construction Price: $1700
3 Sets (Reverse) Price: $2050
5 Sets (Reverse) Price: $2150
8 Sets (Reverse) Price: $2300
Reproducible Vellum (Reverse) Price: $2450
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Steel joist
-
Spacing
16
-
Subfloor
Concrete
-
Thickness
3
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140

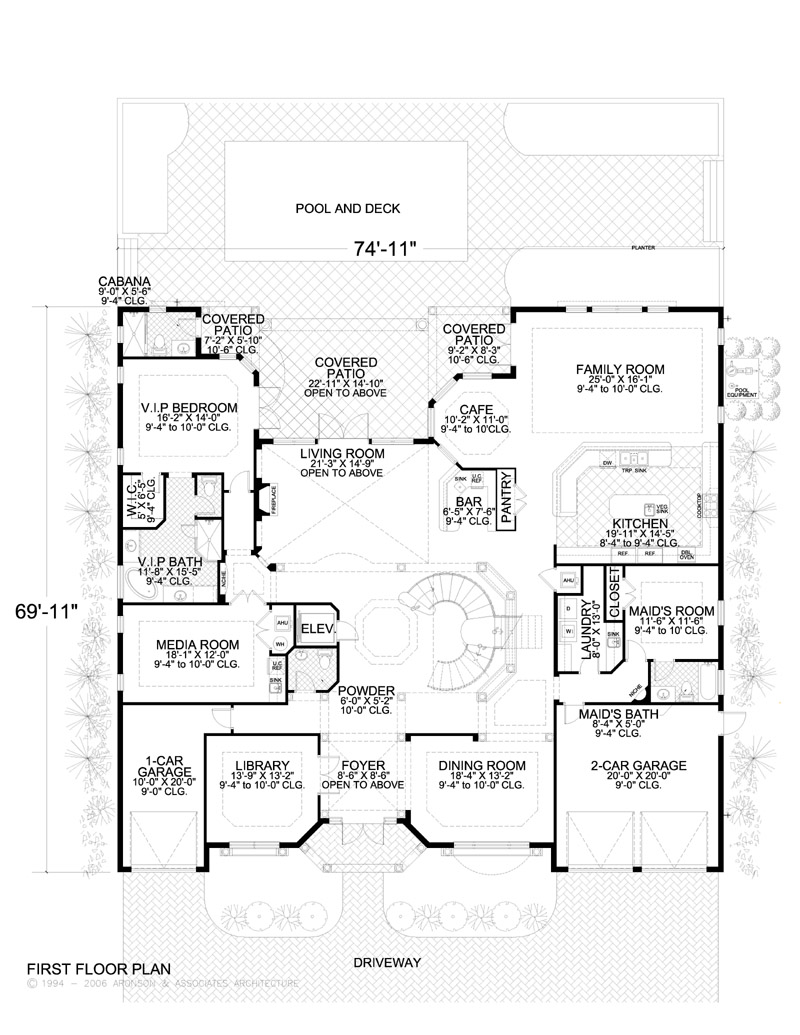

First Floor
-
Primary Living
Open to above
-
Secondary Living
11'-4
-
Primary Bedrooms
-
Secondary Bedrooms
9'-10
-
Bathrooms
9'-10
-
Common Areas
9'

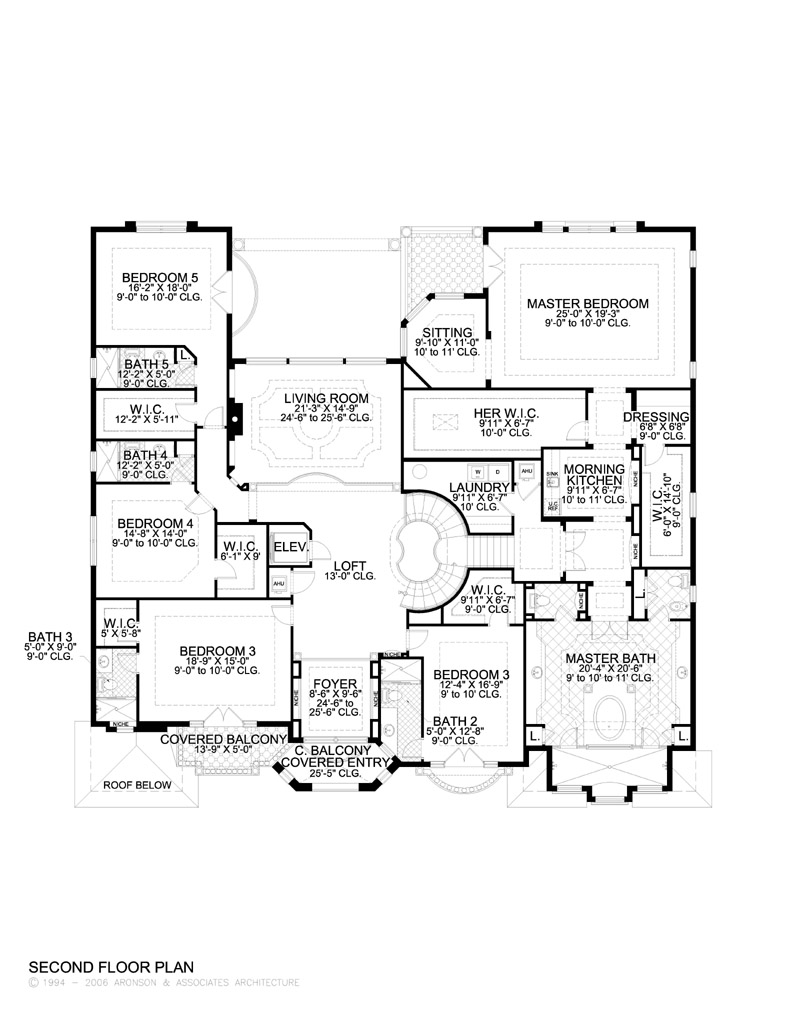

Second Floor
-
Primary Bedrooms
9'-10
-
Secondary Bedrooms
9'-10
-
Bathrooms
9'-10
-
Common Areas
9'-10
Exterior
-
Garage
9'-10
-
Covered Entry
11'-5
-
Covered Patio
26'-10
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
3944
-
Second Floor AC
3939
-
Total AC
7883
Total Under Roof Sq Ft
-
Garage
663
-
Covered Entry
77
-
Covered Patio
446
-
Covered Balconies
214
-
Total Under Roof
9283
